6VV6SS-10B-F6
48-port multibeam antenna, 6 beams for 1695-2690 MHz, 6 beams for 3300-4000 MHz, 4 ports for each beam, Fixed Electrical Tilt
Features and benefits
- Ultra-high capacity antenna provides increased throughput for special events or very high traffic locations
- Provides higher capacity than single radio massive MIMO solution
- Multibeam antenna with 6x MB beams and 6x 3GHz beams
- All beams support 4T4R service or 2T2R service for 2 licensed bands
- 3.5 GHz beams aligned with mid band beams for use with 5G NSA or SA
Specifications
General specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 24 |
| RF Connector Quantity, mid band | 24 |
| RF Connector Quantity, total | 48 |
Dimensions
| Width | 970 mm | 38.189 in |
| Depth | 235 mm | 9.252 in |
| Length | 1700 mm | 66.929 in |
| Net Weight, without mounting kit | 63.5 kg | 139.993 lb |

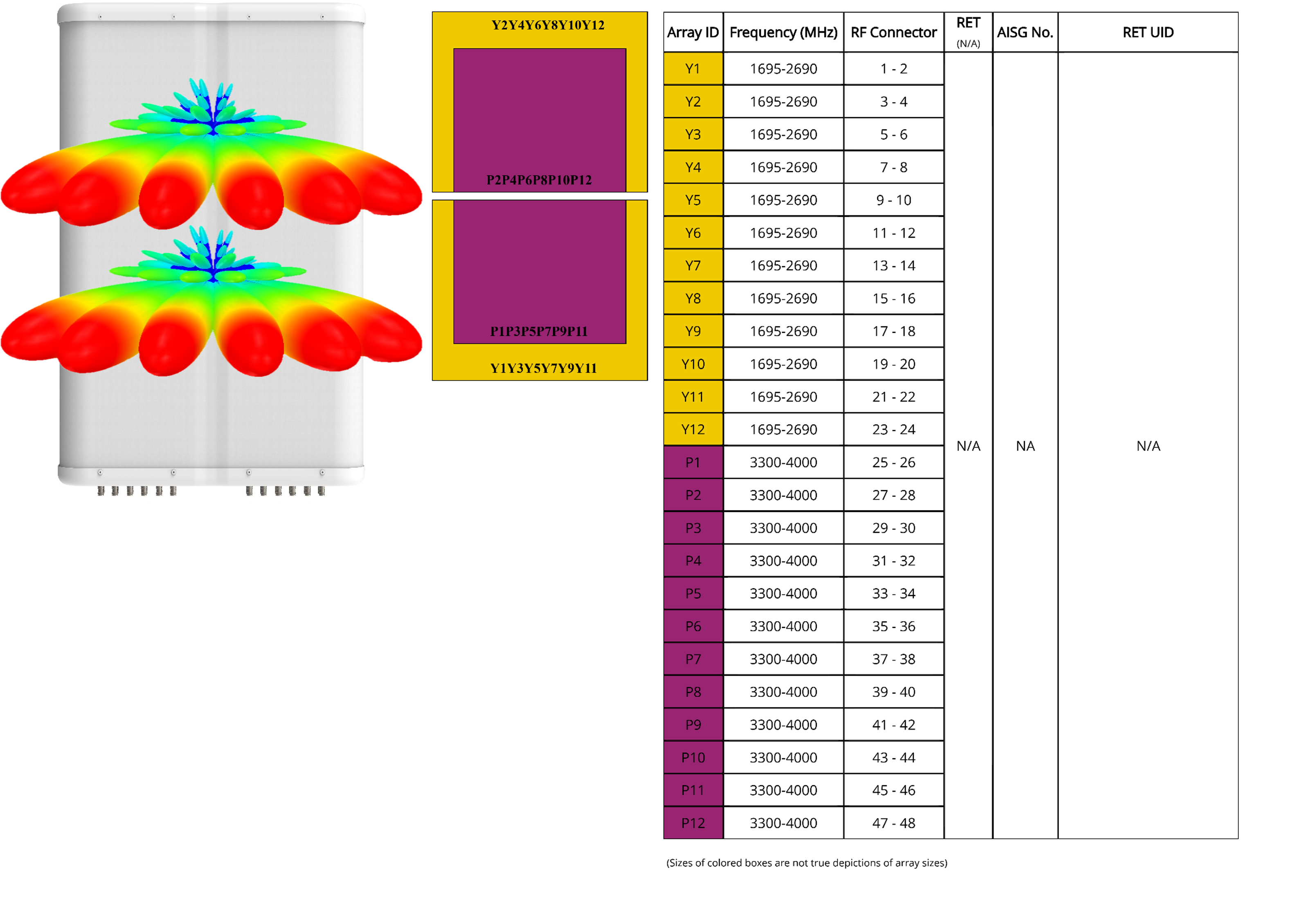

Array layout
| Click on image to enlarge. |

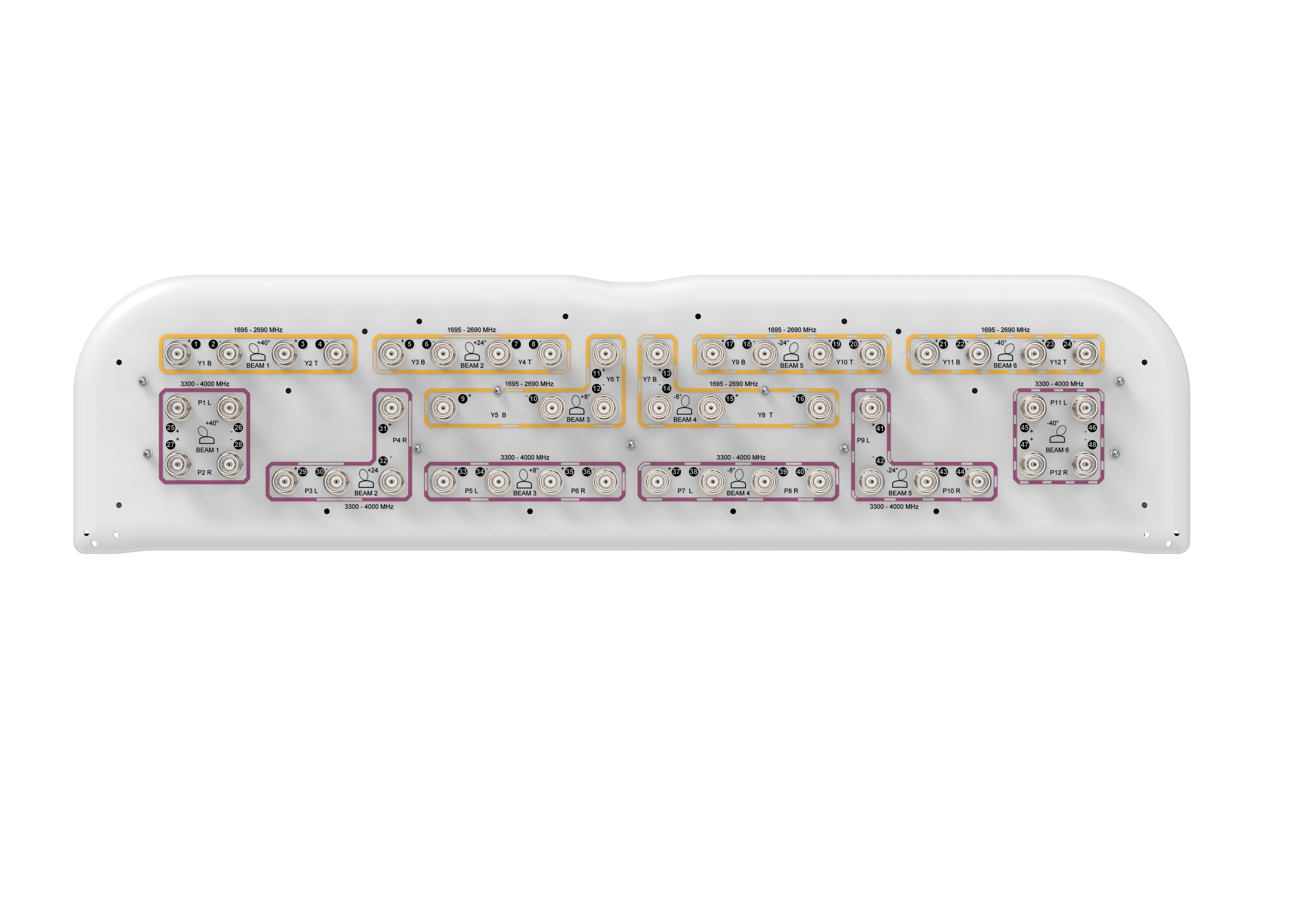

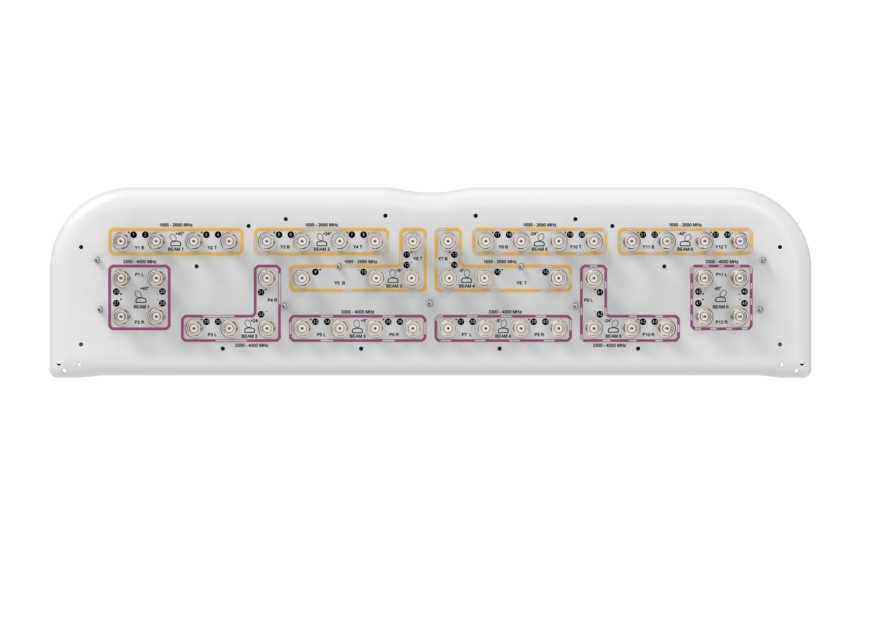

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3300 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 2,880 W |
Electrical specifications
| Y1-Y12 | Y1-Y12 | Y1-Y12 | P1-P12 | P1-P12 | |
| Frequency Band, MHz | 1695–1990 | 1920–2180 | 2300–2690 | 3300–3700 | 3700–4000 |
| RF Port | 1-24 | 1-24 | 1-24 | 25-48 | 25-48 |
| Gain, Maximum, dBi | 21.700 | 21.900 | 23.000 | 20.300 | 20.600 |
| Gain, dBi | 20.9 | 21.1 | 21.9 | 19.7 | 19.7 |
| Beam Centers, Horizontal, degrees | ±24 ±40 ±8 | ±24 ±40 ±8 | ±24 ±40 ±8 | ±24 ±40 ±8 | ±24 ±40 ±8 |
| Beam Crossover, dB | 8.00 | 9.00 | 9.00 | 9.00 | 9.00 |
| Beamwidth, Horizontal, degrees | 12 | 11 | 9 | 12 | 11 |
| Beamwidth, Vertical, degrees | 15.1 | 13.7 | 11.1 | 14.2 | 13.1 |
| Beam Tilt, degrees | 6 | 6 | 6 | 6 | 6 |
| USLS (First Lobe), dB | 15 | 14 | 13 | 10 | 14 |
| Front-to-Back Ratio at 180°, dB | 35 | 35 | 30 | 27 | 27 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 18 | 18 | 17 | 14 | 14 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -145 | -145 |
| Input Power per Port, maximum, watts | 120 | 120 | 120 | 40 | 40 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,108.0 N @ 150 km/h (473.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 644.0 N @ 150 km/h (144.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,108.0 N @ 150 km/h (473.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 1122 mm | 44.173 in |
| Depth, packed | 561 mm | 22.087 in |
| Length, packed | 1966 mm | 77.402 in |
| Weight, gross | 93.5 kg | 206.132 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 24 |
| RF Connector Quantity, mid band | 24 |
| RF Connector Quantity, total | 48 |
Dimensions
| Width | 970 mm | 38.189 in |
| Depth | 235 mm | 9.252 in |
| Length | 1700 mm | 66.929 in |
| Net Weight, without mounting kit | 63.5 kg | 139.993 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3300 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 2,880 W |
Electrical specifications
| Y1-Y12 | Y1-Y12 | Y1-Y12 | P1-P12 | P1-P12 | |
| Frequency Band, MHz | 1695–1990 | 1920–2180 | 2300–2690 | 3300–3700 | 3700–4000 |
| RF Port | 1-24 | 1-24 | 1-24 | 25-48 | 25-48 |
| Gain, Maximum, dBi | 21.700 | 21.900 | 23.000 | 20.300 | 20.600 |
| Gain, dBi | 20.9 | 21.1 | 21.9 | 19.7 | 19.7 |
| Beam Centers, Horizontal, degrees | ±24; ±40; ±8 | ±24; ±40; ±8 | ±24; ±40; ±8 | ±24; ±40; ±8 | ±24; ±40; ±8 |
| Beam Crossover, dB | 8.00 | 9.00 | 9.00 | 9.00 | 9.00 |
| Beamwidth, Horizontal, degrees | 12 | 11 | 9 | 12 | 11 |
| Beamwidth, Vertical, degrees | 15.1 | 13.7 | 11.1 | 14.2 | 13.1 |
| Beam Tilt, degrees | 6 | 6 | 6 | 6 | 6 |
| USLS (First Lobe), dB | 15 | 14 | 13 | 10 | 14 |
| Front-to-Back Ratio at 180°, dB | 35 | 35 | 30 | 27 | 27 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 18 | 18 | 17 | 14 | 14 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -145 | -145 |
| Input Power per Port, maximum, watts | 120 | 120 | 120 | 40 | 40 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,108.0 N @ 150 km/h (473.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 644.0 N @ 150 km/h (144.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,108.0 N @ 150 km/h (473.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 1122 mm | 44.173 in |
| Depth, packed | 561 mm | 22.087 in |
| Length, packed | 1966 mm | 77.402 in |
| Weight, gross | 93.5 kg | 206.132 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
