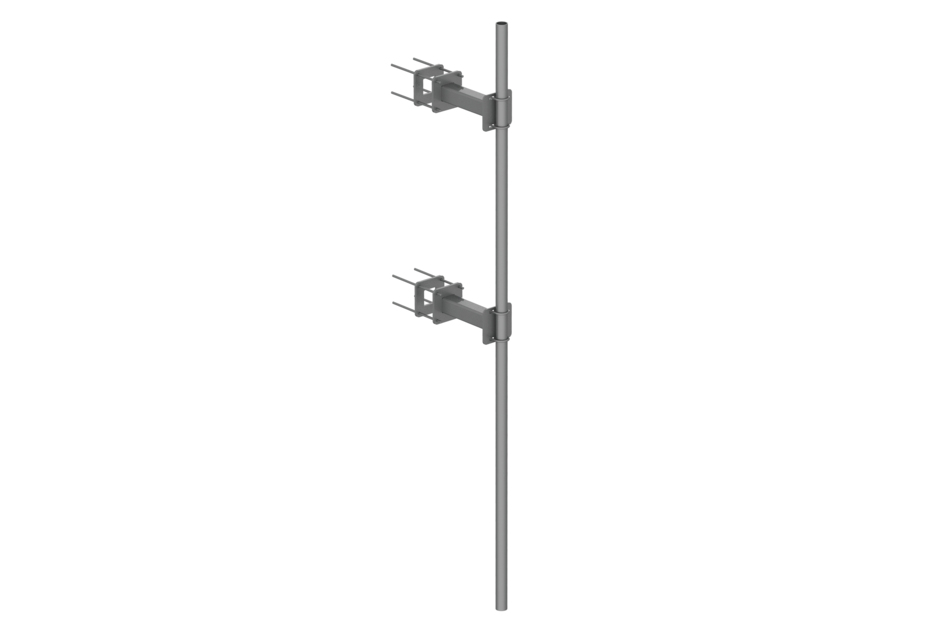

WM-ST1812
Wall Mount kit with 18.6" Stand-off. Includes 2-7/8" OD x 150" Mounting Pipe
Specifications
Product classification
| Product Type | Wall mount kit |
General specifications
| Mounting | Solid walls |
| Pipe, quantity | 1 |
Dimensions
| Height | 3810.000 mm | 150 in |
| Pipe Outer Diameter | 73.66 mm | 2.9 in |
| Stand-off Distance | 472.440 mm | 18.6 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Backing plates or anchors | Pipe | Wall brackets (2) |
| Packaging quantity | 1 |
| Weight, net | 56.89 kg | 125.421 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
