SM-UT1012
Base product: MOUNT-ACCESSORIES

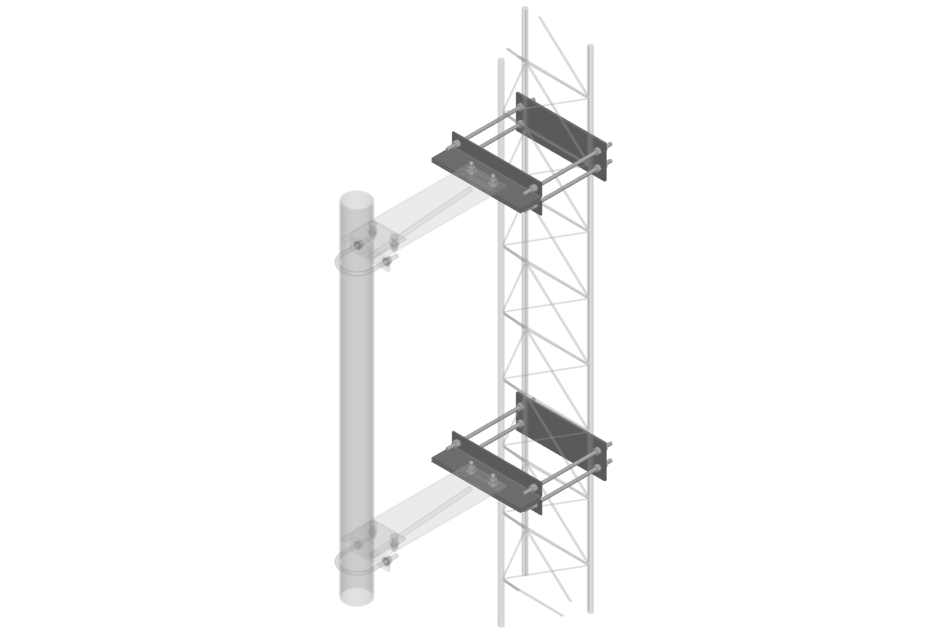

Universal Angle Saddle Mount, 12 in triangular legs and 10 in to 12 in angle members
Specifications
Product classification
| Product Type | Saddle mount |
General specifications
| Mounting | Angle members, 254–304.8 mm (10–12 in) | Triangular legs, 304.8 mm (12 in) |
| Tower Taper | Non-tapered |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 406.4 mm | 16 in |
| Length | 304.8 mm | 12 in |
| Mounting Diameter, maximum | 304.8 mm | 12 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Mount |
| Packaging quantity | 2 |
| Weight, net | 36.3 lb | 80.028 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Saddle mount |
General specifications
| Mounting | Angle members, 254–304.8 mm (10–12 in) | Triangular legs, 304.8 mm (12 in) |
| Tower Taper | Non-tapered |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 406.4 mm | 16 in |
| Length | 304.8 mm | 12 in |
| Mounting Diameter, maximum | 304.8 mm | 12 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Mount |
| Packaging quantity | 2 |
| Weight, net | 36.3 lb | 80.028 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
