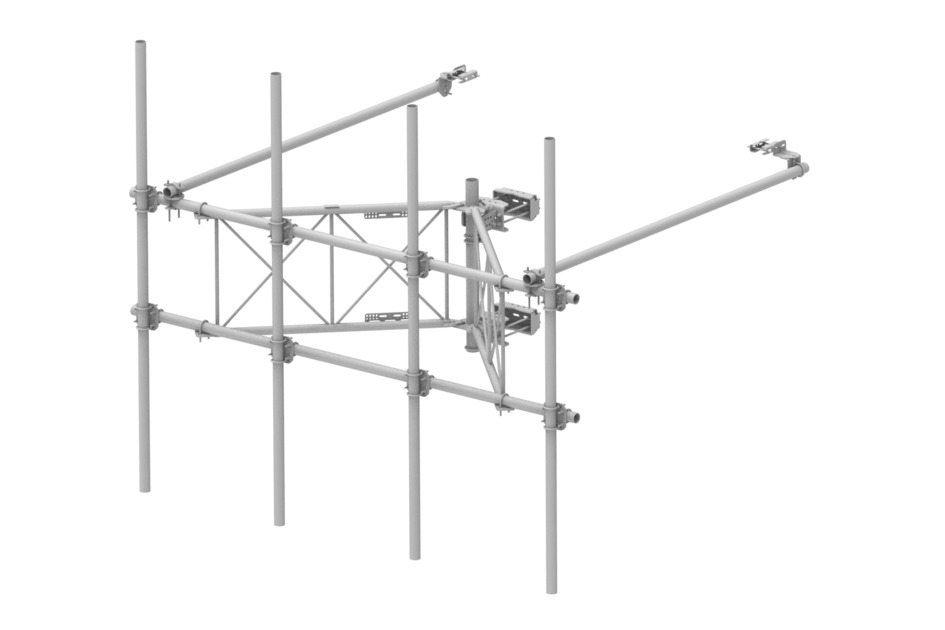

SFG22HDXL-12-4-126
Base product: G22-SERIES-TOWER
G22HDXL High Capacity Extended Stand-off Sector Frame with 2 7/8in OD x 12.5ft face. Includes four 2 7/8in OD x 126in antenna pipes.
Specifications
Product classification
| Product Type | High capacity Tower sector frame |
| Product Series | G2 |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 4 |
| Sectors, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 3200.400 mm | 126 in |
| Face Width | 3.810 m | 12.5 ft |
| Width | 3810.000 mm | 150 in |
| Pipe Length | 3200.400 mm | 126 in |
| Face Support Pipe Diameter | 73.025 mm | 2.875 in |
| Mounting Diameter, maximum | 218.44 mm | 8.6 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1549.400 mm | 61 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Frame | Pipe mounts | Plain end pipes (4) | Stiff arms (2) | Tower attachment |
| Packaging quantity | 1 |
| Weight, net | 364.598 kg | 803.8 lb |
Product classification
| Product Type | High capacity Tower sector frame |
| Product Series | G2 |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 4 |
| Sectors, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 3200.400 mm | 126 in |
| Face Width | 3.810 m | 12.5 ft |
| Width | 3810.000 mm | 150 in |
| Pipe Length | 3200.400 mm | 126 in |
| Face Support Pipe Diameter | 73.025 mm | 2.875 in |
| Mounting Diameter, maximum | 218.44 mm | 8.6 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1549.400 mm | 61 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Frame | Pipe mounts | Plain end pipes (4) | Stiff arms (2) | Tower attachment |
| Packaging quantity | 1 |
| Weight, net | 364.598 kg | 803.8 lb |
