MTC3752T3

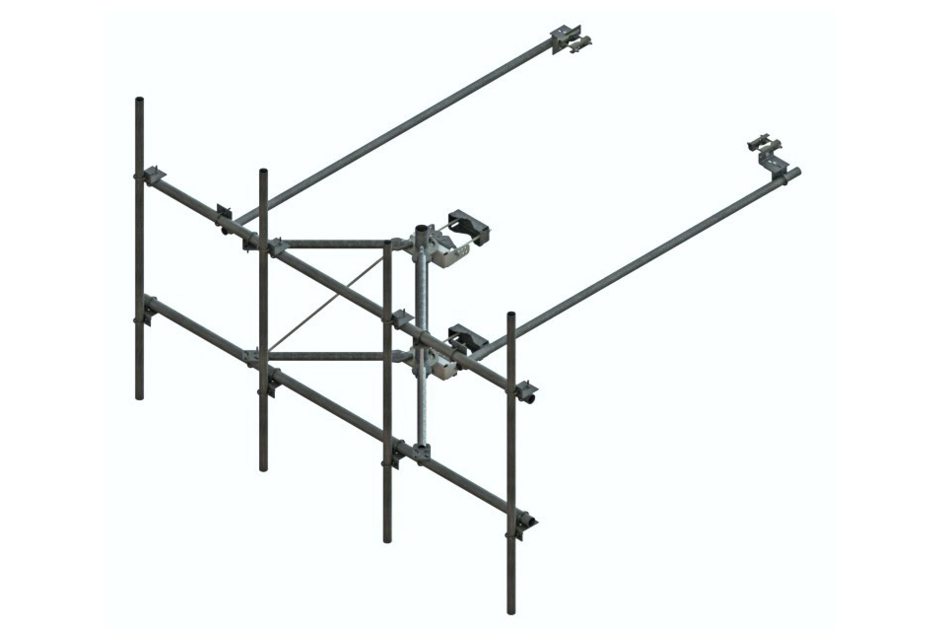

G2 Series High Capacity Three Sector Frame Kit, 12.5 ft face, includes twelve 96 in antenna pipes plus six 96 in RRU Pipes; For patents, see www.cs-pat.com.

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Specifications

Product classification

Product Type	High capacity Tower sector frame
Ordering Note	NSTD445 Compliant

General specifications

Application	4G LTE antenna/radio mount
Mounting	Angle 60°, 203.2 mm (8 in) \| Straight or tapered legs up to 203.2 mm (8 in) OD
Patent Number	Patent pending
Pipe, quantity	18
Sectors, quantity	3
Tower Taper	Non-tapered \| Tapered

Dimensions

Height	2438.4 mm \| 96 in
Face Width	3.81 m \| 12.5 ft
Width	3810.000 mm \| 150 in
Pipe Length	2438.4 mm \| 96 in
Face Support Pipe Diameter	60.325 mm \| 2.375 in
Mounting Diameter, maximum	218.44 mm \| 8.6 in
Mounting Diameter, minimum	50.8 mm \| 2 in
Pipe Outer Diameter	60.325 mm \| 2.375 in
Stand-off Distance	1092.2 mm \| 43 in

Material specifications

Material Type

Hot dip galvanized steel

Mechanical specifications

Wind Rating	For Specifications, please contact your local ANDREW representative
Wind Rating Test Method	TIA/EIA-222-G

Packaging and weights

Included	Frame \| Pipe mounts \| Plain end pipes (12) \| RRU Pipes (6) \| Stiff arm \| Tower attachment
Packaging quantity	1
Weight, net	808.755 kg \| 1783 lb

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
