MTC3169HBXX
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

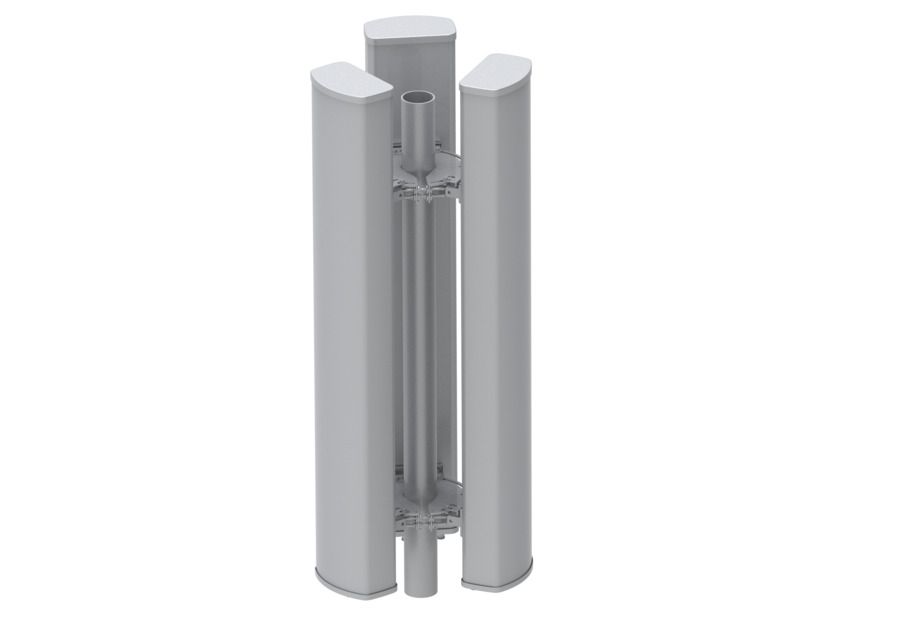

Universal Antenna Mount for HBXX Antennas for Concealment, Tripod, and Flagpole applications. Mounts to Poles 5.3" to 10" OD
Specifications
Product classification
| Product Type | Tripod mount component |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Mounting | Round member |
Dimensions
| Height | 101.6 mm |
| Width | 330.2 mm |
| Length | 0.335 m |
| Mounting Diameter, maximum | 254.000 mm | 10 in |
| Mounting Diameter, minimum | 134.620 mm | 5.3 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets | Threaded rod |
| Packaging quantity | 1 |
Product classification
| Product Type | Tripod mount component |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Mounting | Round member |
Dimensions
| Height | 101.6 mm |
| Width | 330.2 mm |
| Length | 0.335 m |
| Mounting Diameter, maximum | 254.000 mm | 10 in |
| Mounting Diameter, minimum | 134.620 mm | 5.3 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets | Threaded rod |
| Packaging quantity | 1 |
