S-500

Stand-Off Bracket, 60 in, includes pipe

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Stand-off mount

General specifications

Mounting Straight or tapered legs up to 88.9 mm (3-1/2 in) OD, clamps included
Note One 20 ft omni antenna
Pipe, quantity 1
Tower Taper Non-tapered | Tapered

Dimensions

Height 812.8 mm | 32 in
Width 127 mm | 5 in
Length 1524 mm | 60 in
Pipe Length 812.8 mm | 32 in
Pipe Outer Diameter 48.26 mm | 1.9 in
Stand-off Distance 1524 mm | 60 in

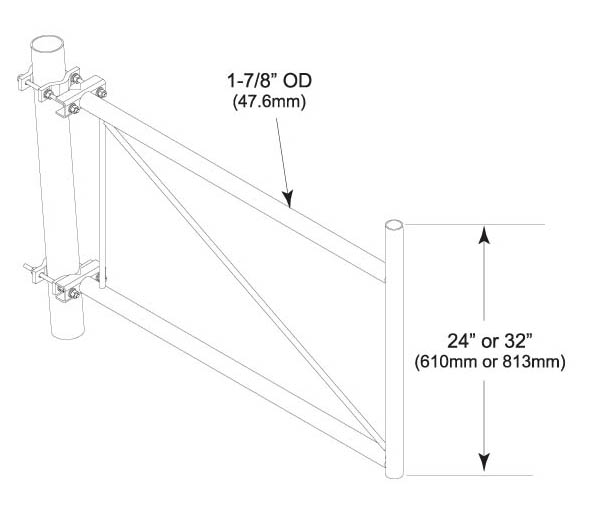

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 120 mph (BWS) at 150 ft AGL
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Clamps | Stand-off
Packaging quantity 1
Weight, net 21.5 kg | 47.399 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Stand-off mount

General specifications

Mounting Straight or tapered legs up to 88.9 mm (3-1/2 in) OD, clamps included
Note One 20 ft omni antenna
Pipe, quantity 1
Tower Taper Non-tapered | Tapered

Dimensions

Height 812.8 mm | 32 in
Width 127 mm | 5 in
Length 1524 mm | 60 in
Pipe Length 812.8 mm | 32 in
Pipe Outer Diameter 48.26 mm | 1.9 in
Stand-off Distance 1524 mm | 60 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 120 mph (BWS) at 150 ft AGL
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Clamps | Stand-off
Packaging quantity 1
Weight, net 21.5 kg | 47.399 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Assembly drawing

Stand-off Bracket, 60 in

Product compliance documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product specification

S-500 Product specifications

Warranty

ANDREW Terms, Conditions and Warranty

Assembly drawing

Stand-off Bracket, 60 in

Product compliance documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product specification

S-500 Product specifications

Warranty

ANDREW Terms, Conditions and Warranty
