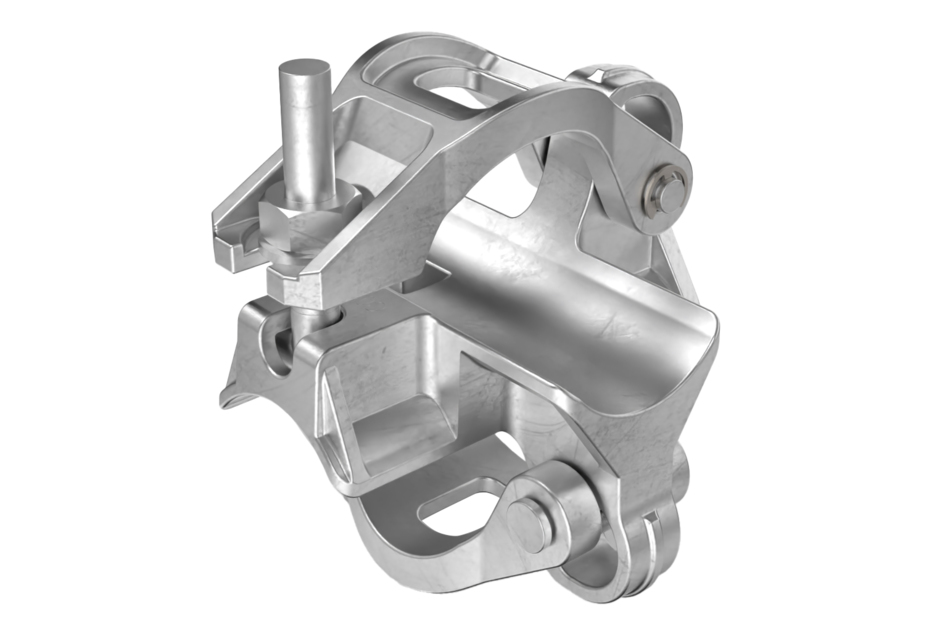

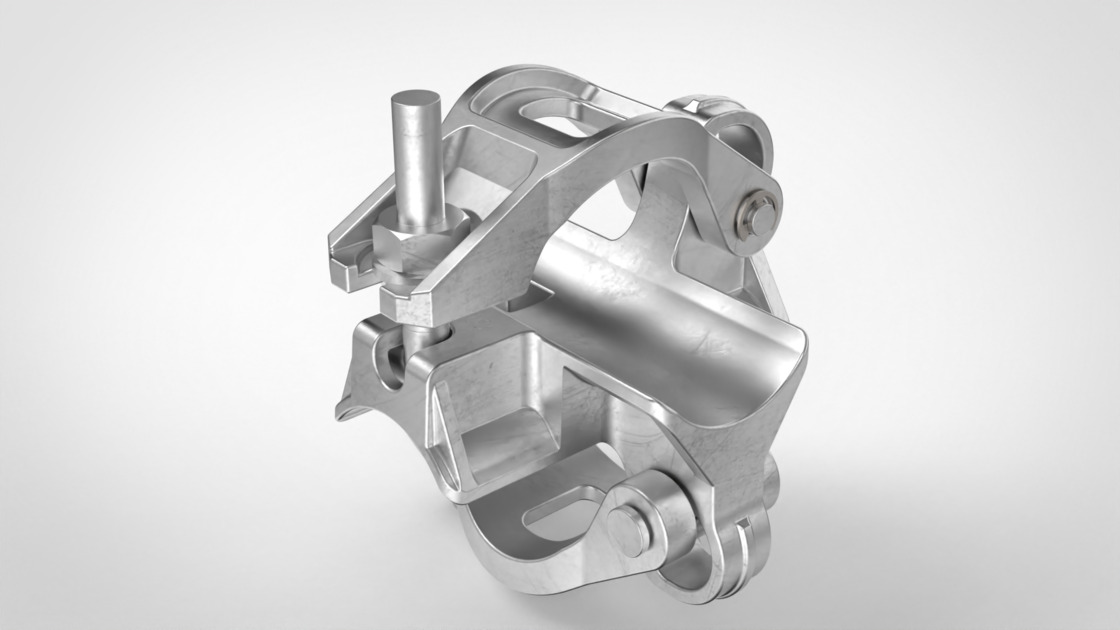

QCC-DD-EE-DE
Quick-Clamp Cast Crossover, joins 2-3/8 in and 2-7/8 in OD round members
Product variants
Configure and display product variants of QCC-DD-EE-DE by selecting options
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
| Part Number | Kit Content | ||
|---|---|---|---|
| No configured items found. | |||
Features and benefits
Alternative Cross‑Over Plate Architecture — A redesigned cast structure that eliminates the need for traditional U‑bolts
Minimal Hardware Requirement — Uses only two captive bolts instead of four U‑bolts and eight sets of loose hardware
Multiple Pipe OD Compatibility — One design accommodates both 2.375" and 2.875 pipes
Integrated Position Window — Provides built-in window to enable precise pipe alignment & spacing during installation
PIM Mitigating Design — Eliminates loose hardware that can contribute to passive intermodulation (PIM)
High Mechanical Performance — Delivers axial and rotational clamping performance comparable to legacy U‑bolt systems
Self-Aligning: Self Alignment between pipes eliminates manual adjustments to plumb antenna pipes
Up to 75% Faster Installation The reduction in hardware and simplified assembly dramatically accelerates field installation to reduce labor cost
Minimal Hardware Requirement — Uses only two captive bolts instead of four U‑bolts and eight sets of loose hardware
Multiple Pipe OD Compatibility — One design accommodates both 2.375" and 2.875 pipes
Integrated Position Window — Provides built-in window to enable precise pipe alignment & spacing during installation
PIM Mitigating Design — Eliminates loose hardware that can contribute to passive intermodulation (PIM)
High Mechanical Performance — Delivers axial and rotational clamping performance comparable to legacy U‑bolt systems
Self-Aligning: Self Alignment between pipes eliminates manual adjustments to plumb antenna pipes
Up to 75% Faster Installation The reduction in hardware and simplified assembly dramatically accelerates field installation to reduce labor cost
Specifications
Product classification
| Product Type | Clamp |
General specifications
| Mounting | Round member |
Dimensions
| Mounting Diameter, maximum | 73.025 mm | 2.875 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp | Hardware |
| Packaging quantity | 1 |
| Weight, net | 2.77 kg | 6.107 lb |
Product classification
| Product Type | Clamp |
General specifications
| Mounting | Round member |
Dimensions
| Mounting Diameter, maximum | 73.025 mm | 2.875 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp | Hardware |
| Packaging quantity | 1 |
| Weight, net | 2.77 kg | 6.107 lb |
