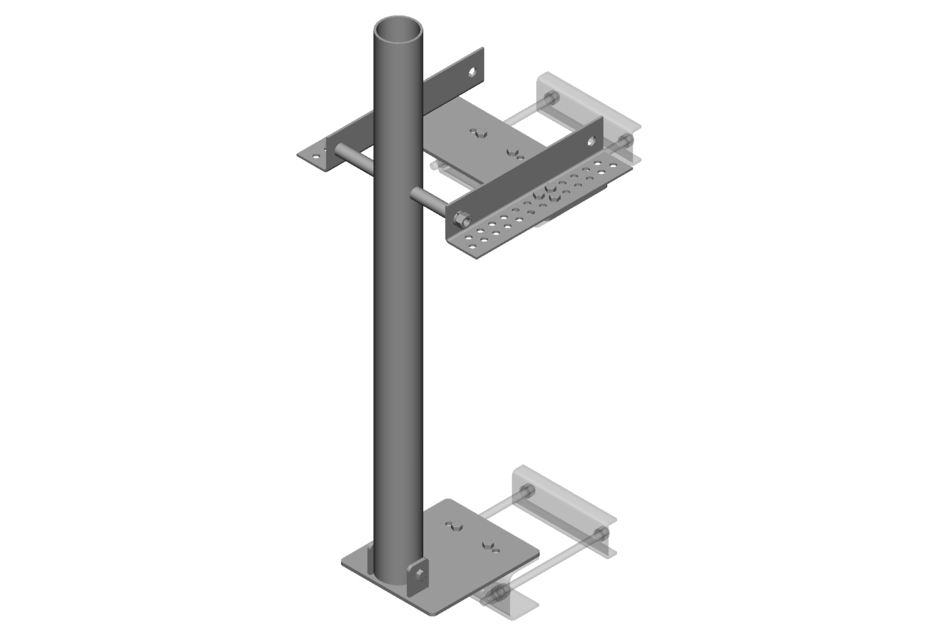

PM-AT412-60

Universal Adjustable Tapered Pipe Mount, 4-1/2 in OD x 60 in

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Pipe mount

General specifications

Mounting Saddle mounts
Note One 6 ft microwave antenna per sector, with antenna stiff arm
Pipe, quantity 1
Tower Taper Tapered

Dimensions

Height 1600.2 mm | 63 in
Width 381 mm | 15 in
Length 508 mm | 20 in
Pipe Length 1524 mm | 60 in
Pipe Outer Diameter 114.3 mm | 4.5 in

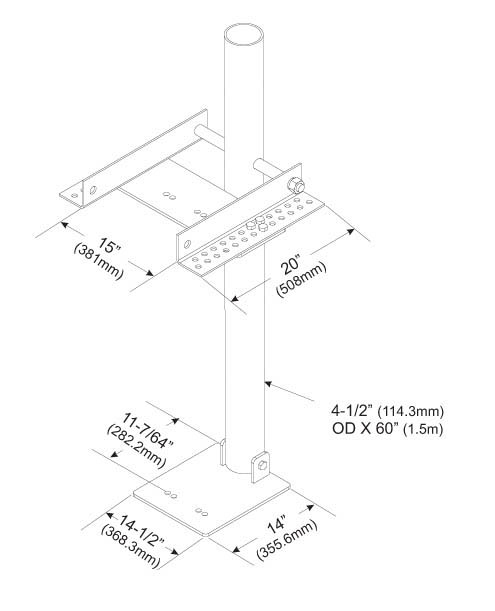

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 120 mph (BWS) at 150 ft AGL
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Pipe mounts
Packaging quantity 1
Weight, net 56.7 kg | 125.002 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Pipe mount

General specifications

Mounting Saddle mounts
Note One 6 ft microwave antenna per sector, with antenna stiff arm
Pipe, quantity 1
Tower Taper Tapered

Dimensions

Height 1600.2 mm | 63 in
Width 381 mm | 15 in
Length 508 mm | 20 in
Pipe Length 1524 mm | 60 in
Pipe Outer Diameter 114.3 mm | 4.5 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 120 mph (BWS) at 150 ft AGL
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Pipe mounts
Packaging quantity 1
Weight, net 56.7 kg | 125.002 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Assembly drawing

Universal Adjustable Tapered Pipe Mount 4-1/2 in OD
