MT-197

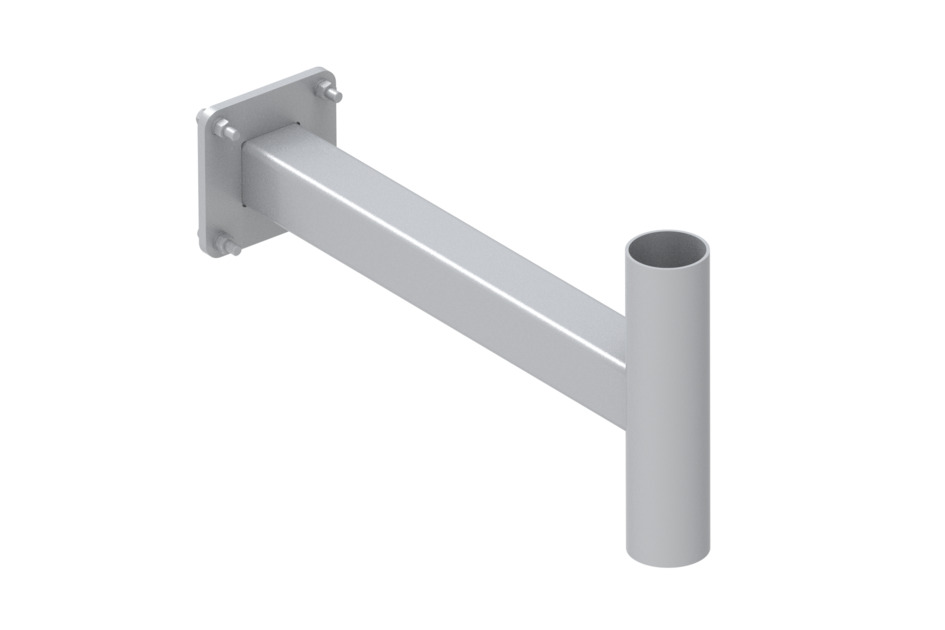

Single Support Arm, 36 in, includes pipe
Specifications
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Ring mount |
| Pipe, quantity | 1 |
Dimensions
| Height | 457.2 mm | 18 in |
| Width | 254 mm | 10 in |
| Length | 914.4 mm | 36 in |
| Pipe Length | 457.2 mm | 18 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
| Stand-off Distance | 914.4 mm | 36 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Hardware | Stand-off arms |
| Packaging quantity | 1 |
| Weight, net | 30.9 kg | 68.123 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
