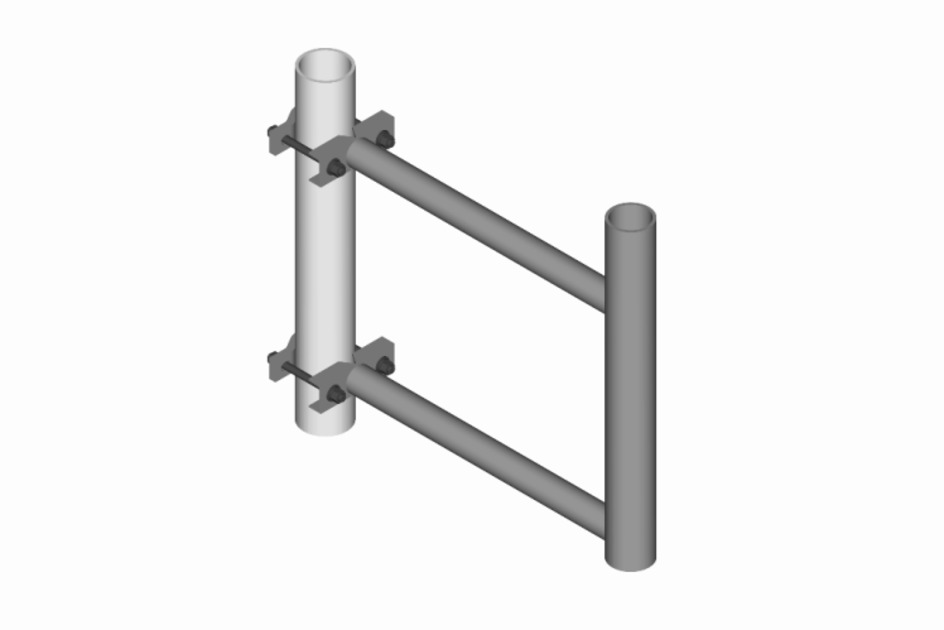

DM-100

Microwave Antenna Stand-Off Bracket, 24 in

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Stand-off mount

General specifications

Mounting Straight or tapered legs up to 88.9 mm (3-1/2 in) OD
Tower Taper Non-tapered | Tapered

Dimensions

Height 609.6 mm | 24 in
Width 152.4 mm | 6 in
Length 609.6 mm | 24 in
Stand-off Distance 609.6 mm | 24 in

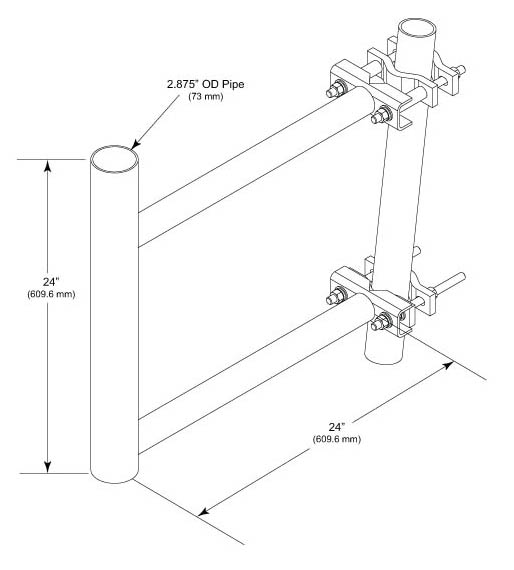

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Clamps | Stand-off
Packaging quantity 1
Weight, net 14.3 kg | 31.526 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Stand-off mount

General specifications

Mounting Straight or tapered legs up to 88.9 mm (3-1/2 in) OD
Tower Taper Non-tapered | Tapered

Dimensions

Height 609.6 mm | 24 in
Width 152.4 mm | 6 in
Length 609.6 mm | 24 in
Stand-off Distance 609.6 mm | 24 in

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Clamps | Stand-off
Packaging quantity 1
Weight, net 14.3 kg | 31.526 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
