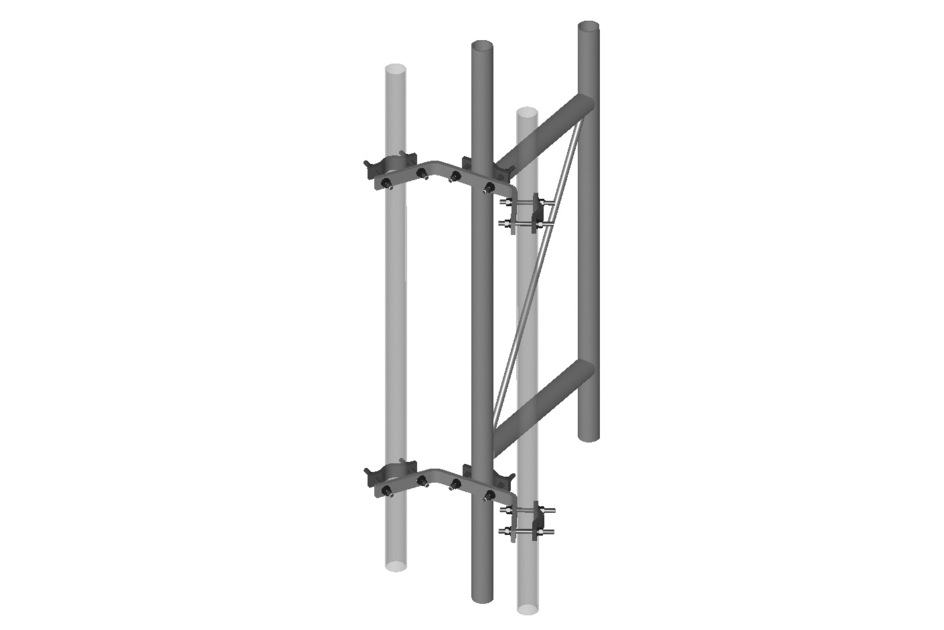

DA-C200
Double Antenna Clamp
Specifications
Product classification
| Product Type | Stand-off mount |
General specifications
| Mounting | Round member, 38.1–88.9 mm (1-1/2 in to 3-1/2 in) OD |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 457.2 mm | 18 in |
| Length | 177.8 mm | 7 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp assembly |
| Packaging quantity | 2 |
| Weight, net | 10.4 kg | 22.928 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Stand-off mount |
General specifications
| Mounting | Round member, 38.1–88.9 mm (1-1/2 in to 3-1/2 in) OD |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 457.2 mm | 18 in |
| Length | 177.8 mm | 7 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp assembly |
| Packaging quantity | 2 |
| Weight, net | 10.4 kg | 22.928 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
