VSRA-MM-B3
Base product: MOUNT-REINFORCEMENT-KITS

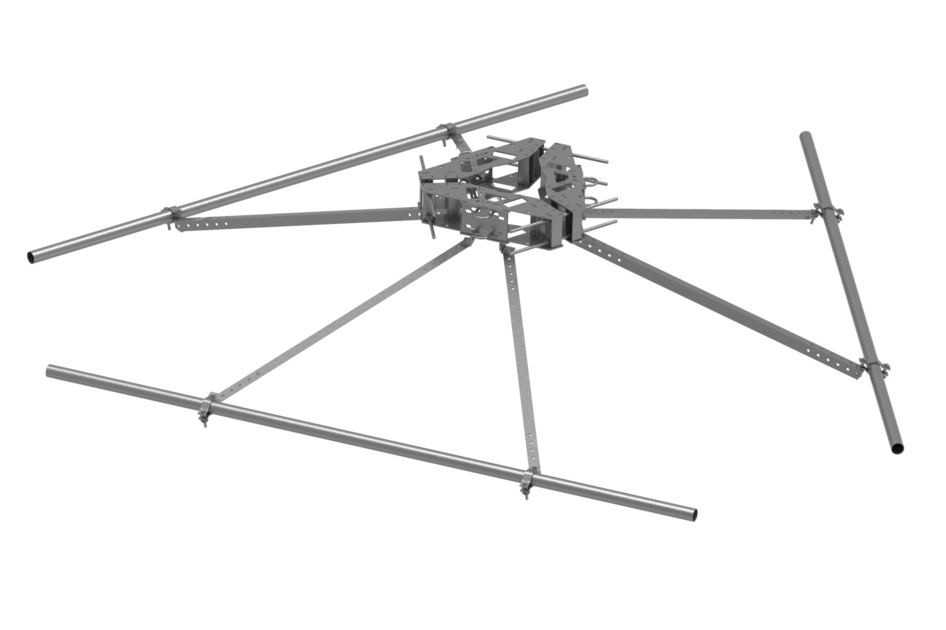

Adjustable Monopole V-Stabilizer Kit 3- Sector with Ring mount - pipe not included
Specifications
Product classification
| Product Type | Reinforcement kit |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Length | 1625.600 mm | 64 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 304.8 mm | 12 in |
| Stand-off Distance | 1524 mm | 60 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Legs | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 65.771 kg | 145 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Reinforcement kit |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Length | 1625.600 mm | 64 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 304.8 mm | 12 in |
| Stand-off Distance | 1524 mm | 60 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Legs | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 65.771 kg | 145 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
