MTC4107S
Base product: MC-K-SERIES

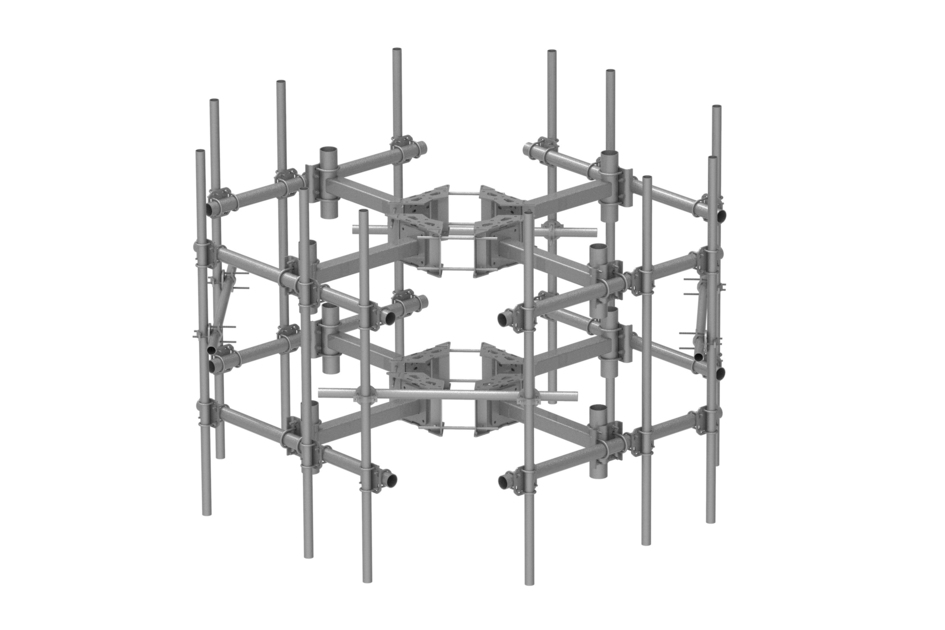

Four-Sector Double T-Arm Monopole Mount, Includes (2) Ring Mounts for 10"-30" OD Monopole, 6 ft x 3-1/2" OD face pipes, (12) 2-3/8" OD x 96” Antenna Pipes
Specifications
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 4 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 1.829 m | 6 ft |
| Width | 1828.800 mm | 72 in |
| Pipe Length | 2438.400 mm | 96 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 762.000 mm | 30 in |
| Mounting Diameter, minimum | 254.000 mm | 10 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Frame | Pipe mounts | Plain end pipes | Ring mounts (2) |
| Packaging quantity | 1 |
| Weight, net | 897.024 kg | 1977.6 lb |
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 4 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 1.829 m | 6 ft |
| Width | 1828.800 mm | 72 in |
| Pipe Length | 2438.400 mm | 96 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 762.000 mm | 30 in |
| Mounting Diameter, minimum | 254.000 mm | 10 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Frame | Pipe mounts | Plain end pipes | Ring mounts (2) |
| Packaging quantity | 1 |
| Weight, net | 897.024 kg | 1977.6 lb |
