MTC3924
Base product: RING-MOUNTS

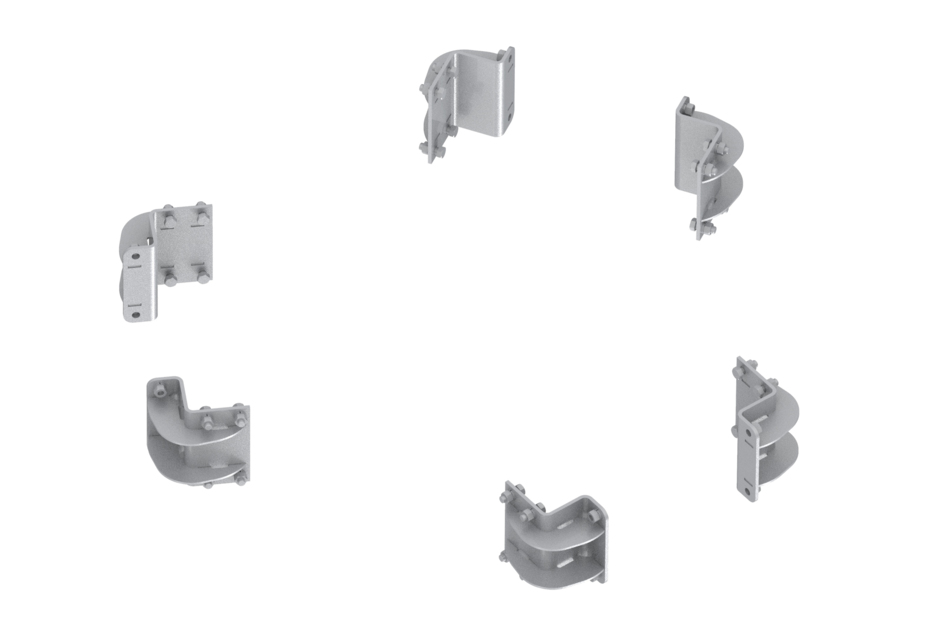

Universal Ring Mount Extension Kit - Increases MC-RM3060-3 Monopole mounting range up to 70" OD. Ring Mount not included.
Specifications
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Ring mount |
| Sectors, quantity | 3 |
Dimensions
| Mounting Diameter, maximum | 1778.000 mm | 70 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Extension | Mounting hardware |
| Packaging quantity | 1 |
| Weight, net | 67.898 kg | 149.69 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Ring mount |
| Sectors, quantity | 3 |
Dimensions
| Mounting Diameter, maximum | 1778.000 mm | 70 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Extension | Mounting hardware |
| Packaging quantity | 1 |
| Weight, net | 67.898 kg | 149.69 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
