MC-SA40-B

Base product: MOUNT-ACCESSORIES

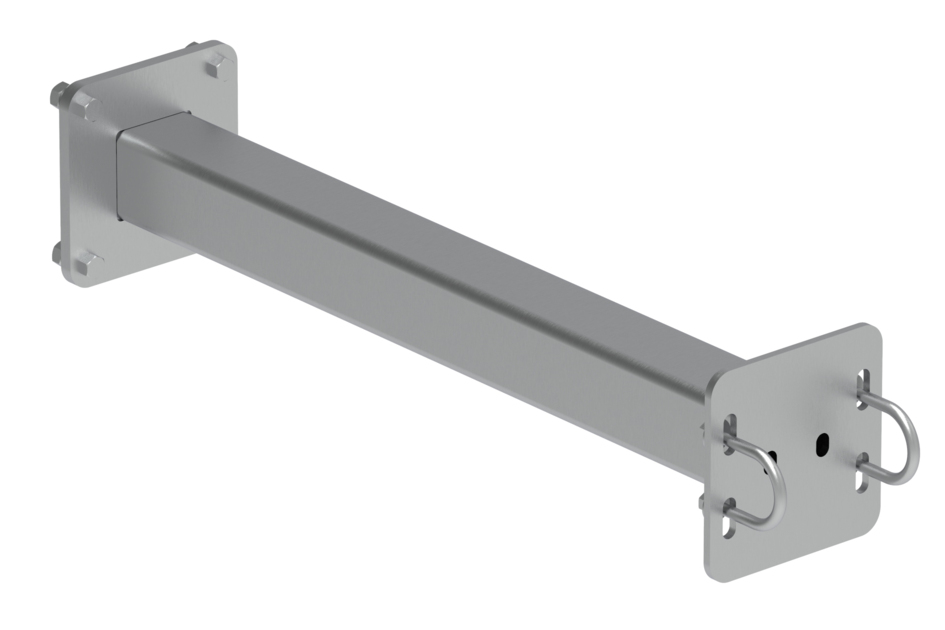

Stand-off Arm with U-bolts, 40 in

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
MC-SA40-B

Product classification

Product Type Universal ring mount

General specifications

Mounting Ring mount

Dimensions

Height 254 mm | 10 in
Width 254 mm | 10 in
Length 1016 mm | 40 in
Stand-off Distance 1016 mm | 40 in

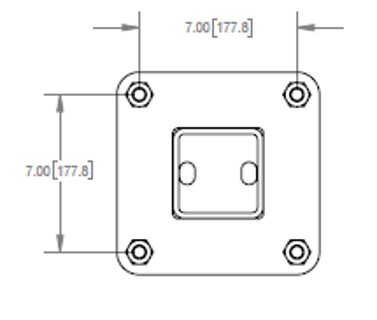

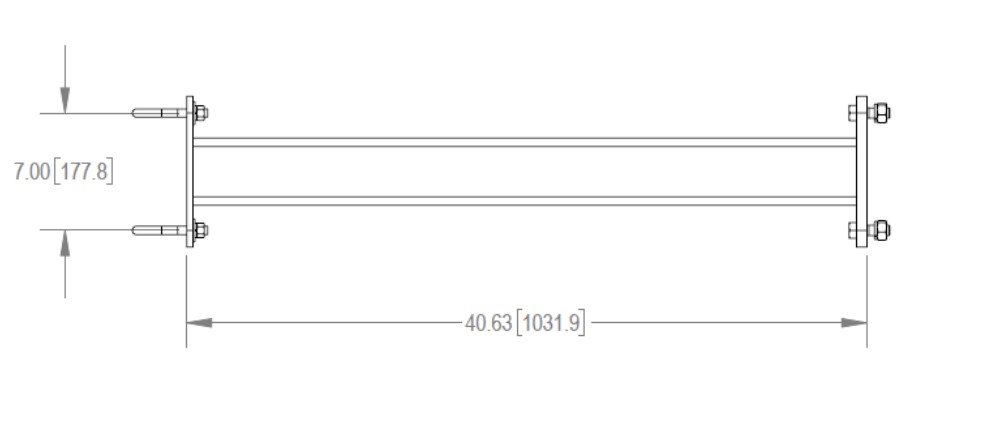

Outline drawing

Click on image to enlarge.
Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC
Wind Rating Criteria Four 72 in x 8 in panel antennas per sector
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Hardware | Stand-off arms
Packaging quantity 1
Weight, net 33.1 lb | 72.973 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant

Product classification

Product Type Universal ring mount

General specifications

Mounting Ring mount

Dimensions

Height 254 mm | 10 in
Width 254 mm | 10 in
Length 1016 mm | 40 in
Stand-off Distance 1016 mm | 40 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC
Wind Rating Criteria Four 72 in x 8 in panel antennas per sector
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Hardware | Stand-off arms
Packaging quantity 1
Weight, net 33.1 lb | 72.973 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
