MC-RMHD-1245-3
Base product: RING-MOUNTS

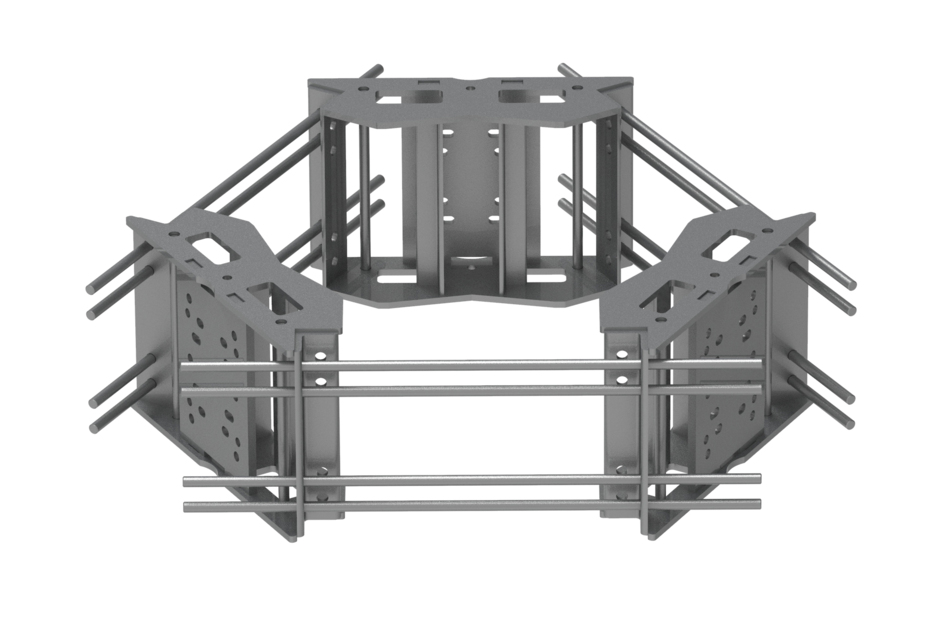

Universal Ring Mount, Heavy Duty 3-sector, 12 in to 45 in OD
Specifications
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Sectors, quantity | 3 |
Dimensions
| Height | 381.000 mm | 15 in |
| Mounting Diameter, maximum | 1143.000 mm | 45 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Mount | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 149.323 kg | 329.2 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Sectors, quantity | 3 |
Dimensions
| Height | 381.000 mm | 15 in |
| Mounting Diameter, maximum | 1143.000 mm | 45 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Mount | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 149.323 kg | 329.2 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
