MC-RM1030-4

Base product: RING-MOUNTS

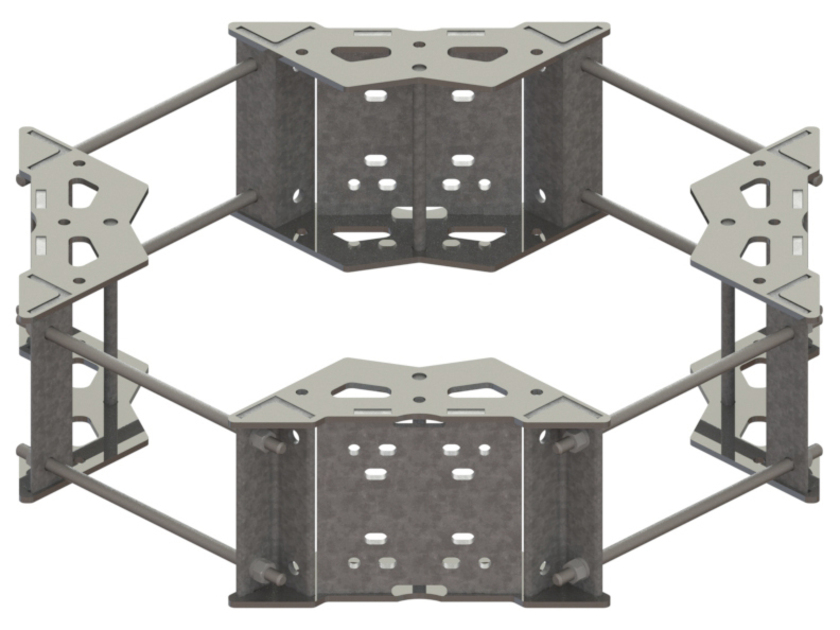

Universal Ring Mount, 4-sector, 10 in to 30 in OD

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Universal ring mount

General specifications

Mounting Monopole, 254–762 mm (10–30 in) OD
Pipe, quantity 0
Sectors, quantity 4

Dimensions

Height 254 mm | 10 in
Length 152.4 mm | 6 in
Mounting Diameter, maximum 762 mm | 30 in
Mounting Diameter, minimum 254 mm | 10 in
Pipe Outer Diameter 0.000 mm | 0 in
Mounting Circumference, maximum 2392.68 mm | 94.2 in
Mounting Circumference, minimum 797.56 mm | 31.4 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Mount | Threaded rod
Packaging quantity 1
Weight, net 140.704 kg | 310.2 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Universal ring mount

General specifications

Mounting Monopole, 254–762 mm (10–30 in) OD
Pipe, quantity 0
Sectors, quantity 4

Dimensions

Height 254 mm | 10 in
Length 152.4 mm | 6 in
Mounting Diameter, maximum 762 mm | 30 in
Mounting Diameter, minimum 254 mm | 10 in
Pipe Outer Diameter 0.000 mm | 0 in
Mounting Circumference, maximum 2392.68 mm | 94.2 in
Mounting Circumference, minimum 797.56 mm | 31.4 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Mount | Threaded rod
Packaging quantity 1
Weight, net 140.704 kg | 310.2 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
