MC-PK10-DSH
Base product: MC-PK-SERIES

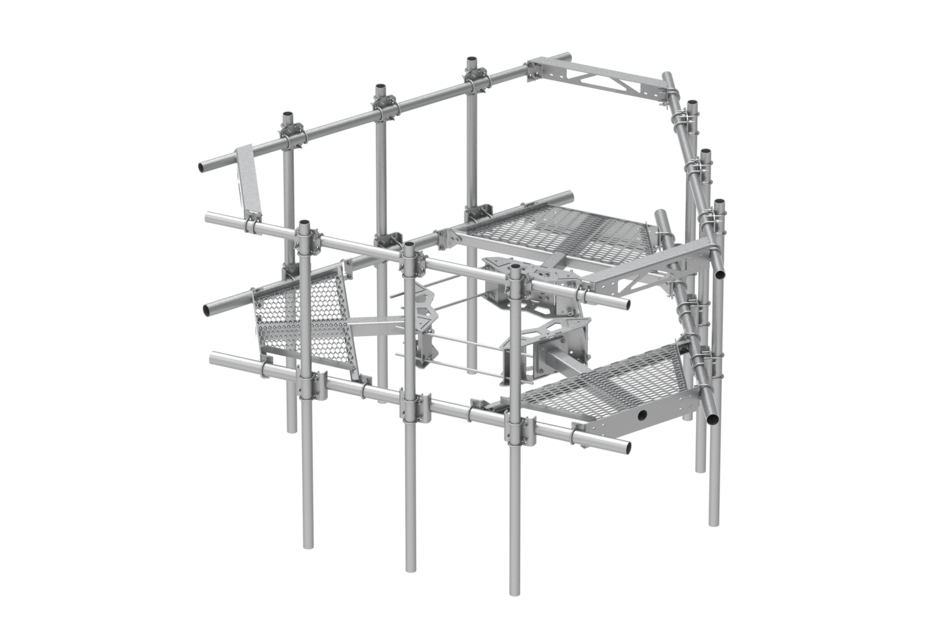

Low-Profile Co-location Platform Kit for 15in to 50in OD Monopoles, 10 ft face, (9) 2-7/8" OD x 96" Pipes, with Support Rail Kit
Features and benefits
Please contact ANDREW for detailed drawings prior to ordering.
Specifications
Product classification
| Product Type | Monopole platform kit |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 9 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 3.048 m | 10 ft |
| Width | 3810.000 mm | 150 in |
| Pipe Length | 2438.400 mm | 96 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 1270.000 mm | 50 in |
| Mounting Diameter, minimum | 381.000 mm | 15 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1117.600 mm | 44 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Hardware | Plain end pipes (9) | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 833.703 kg | 1838 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Monopole platform kit |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 9 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 3.048 m | 10 ft |
| Width | 3810.000 mm | 150 in |
| Pipe Length | 2438.400 mm | 96 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 1270.000 mm | 50 in |
| Mounting Diameter, minimum | 381.000 mm | 15 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1117.600 mm | 44 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Hardware | Plain end pipes (9) | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 833.703 kg | 1838 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
