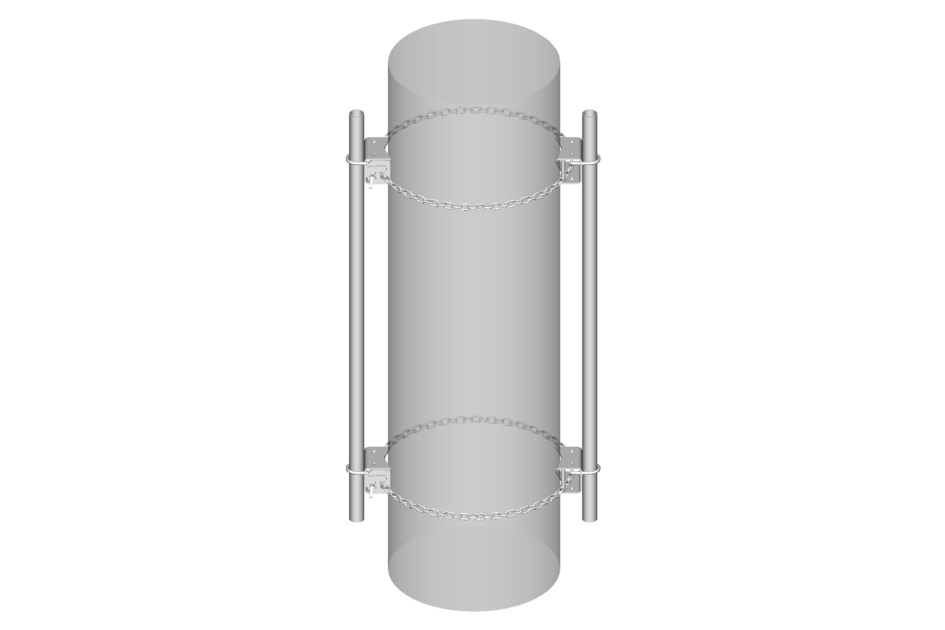

CM-30D-B
Chain Mount Base Kit, 8 ft chain
Specifications
Product classification
| Product Type | Chain mount kit |
General specifications
| Pipe, quantity | 0 |
| Sectors, quantity | 2 |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 203.2 mm | 8 in |
| Length | 203.2 mm | 8 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |

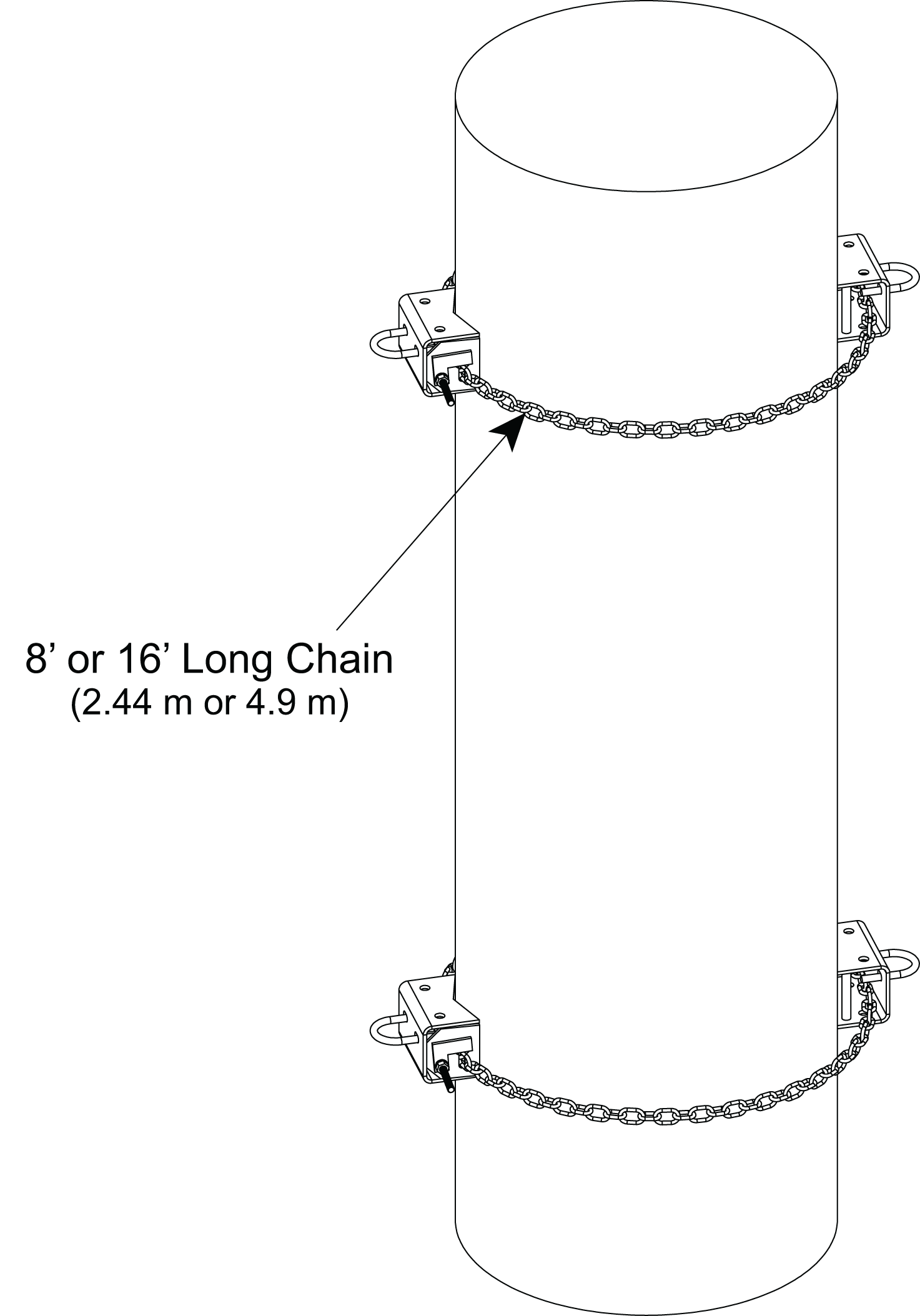

Outline drawing
| Click on image to enlarge. |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
| Wind Rating Criteria | One 96 in x 10 in panel antenna per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 17.6 kg | 38.801 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Chain mount kit |
General specifications
| Pipe, quantity | 0 |
| Sectors, quantity | 2 |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 203.2 mm | 8 in |
| Length | 203.2 mm | 8 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
| Wind Rating Criteria | One 96 in x 10 in panel antenna per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 17.6 kg | 38.801 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
