HRK-14-12-01 HRK-14-12-01
Variant of MOUNT-ACCESSORIES
Three Sector Top Rail Kit, 2-3/8 in OD x 14 ft 6 in face. Pipe Mounts not included.
HRK-14-12-01
  • Product type: Co-location platform
  • Face width: 4.420 m | 14.5 ft
SpecificationsSpecs
HRK-14-12-01
  • Product type: Co-location platform
  • Face width: 4.420 m | 14.5 ft
MC-CG-SERIES
Base product
MC-CG-SERIES

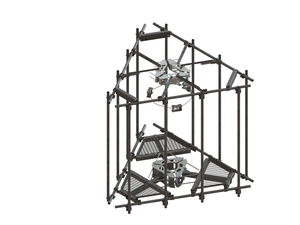

MC-CG Series 3-Sector Cage Mount Monopole Platforms
MC-CG-SERIES
  • Product type: Co-location platform
SpecificationsSpecs
MC-CG-SERIES
  • Product type: Co-location platform
MC-CP12M-12-120-HD MC-CP12M-12-120-HD
Variant of MC-CP-SERIES
3-Sector Heavy Duty Monopole Co-location Platform Kit, 12 in to 50 in OD, 12 ft 6 in face, includes twelve 120 in x 2-7/8 in pipes
MC-CP12M-12-120-HD
  • Product type: Co-location platform
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 73.025 mm | 2.875 in
  • Pipe length: 3048.000 mm | 120 in
SpecificationsSpecs
MC-CP12M-12-120-HD
  • Product type: Co-location platform
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 73.025 mm | 2.875 in
  • Pipe length: 3048.000 mm | 120 in
MC-CP12M-12-126 MC-CP12M-12-126
Variant of MC-CP-SERIES
3-Sector Monopole Co-location Platform Kit, 12 in to 50 in OD, 12 ft 6 in face, includes twelve 126 in pipes
MC-CP12M-12-126
  • Product type: Co-location platform
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
  • Pipe length: 3200.4 mm | 126 in
SpecificationsSpecs
MC-CP12M-12-126
  • Product type: Co-location platform
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
  • Pipe length: 3200.4 mm | 126 in
MC-CP12M-12-96 MC-CP12M-12-96
Variant of MC-CP-SERIES
3-Sector Monopole Co-location Platform Kit, 12 in to 50 in OD, 12 ft 6 in face, includes twelve 96 in pipes
MC-CP12M-12-96
  • Product type: Co-location platform
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
  • Pipe length: 2438.4 mm | 96 in
SpecificationsSpecs
MC-CP12M-12-96
  • Product type: Co-location platform
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
  • Pipe length: 2438.4 mm | 96 in
MC-CP12M-12-96-HD MC-CP12M-12-96-HD
Variant of MC-CP-SERIES
3-Sector Heavy Duty Monopole Co-location Platform Kit, 12 in to 50 in OD, 12 ft 6 in face, includes twelve 96 in x 2-7/8 in pipes
MC-CP12M-12-96-HD
  • Product type: Co-location platform
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 73.025 mm | 2.875 in
  • Pipe length: 2438.400 mm | 96 in
SpecificationsSpecs
MC-CP12M-12-96-HD
  • Product type: Co-location platform
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 73.025 mm | 2.875 in
  • Pipe length: 2438.400 mm | 96 in
MC-CP12M-B MC-CP12M-B
Variant of MC-CP-SERIES
3-Sector Monopole Co-location Platform Base Kit, 12 in to 50 in OD, 12 ft 6 in face, pipe ordered separately
MC-CP12M-B
  • Product type: Co-location platform
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
SpecificationsSpecs
MC-CP12M-B
  • Product type: Co-location platform
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
MC-CP12S-12-96 MC-CP12S-12-96
Variant of MC-CP-SERIES
3-Sector Monopole Co-location Platform Kit, 10 in to 30 in OD, 12 ft 6 in face, includes twelve 96 in pipes
MC-CP12S-12-96
  • Product type: Monopole platform kit
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 762 mm | 30 in
  • Mounting diameter, minimum: 254 mm | 10 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
  • Pipe length: 2438.4 mm | 96 in
SpecificationsSpecs
MC-CP12S-12-96
  • Product type: Monopole platform kit
  • Face width: 3.81 m | 12.5 ft
  • Mounting diameter, maximum: 762 mm | 30 in
  • Mounting diameter, minimum: 254 mm | 10 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
  • Pipe length: 2438.4 mm | 96 in
MC-CP14M-12-120-HD MC-CP14M-12-120-HD
Variant of MC-CP-SERIES
3-Sector Heavy Duty Monopole Co-location Platform Kit, 12 in to 50 in OD, 14 ft 6 in face, includes twelve 120 in x 2-7/8 in pipes
MC-CP14M-12-120-HD
  • Product type: Co-location platform
  • Face width: 4.420 m | 14.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 73.025 mm | 2.875 in
  • Pipe length: 3048.000 mm | 120 in
SpecificationsSpecs
MC-CP14M-12-120-HD
  • Product type: Co-location platform
  • Face width: 4.420 m | 14.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 73.025 mm | 2.875 in
  • Pipe length: 3048.000 mm | 120 in
MC-CP14M-12-126 MC-CP14M-12-126
Variant of MC-CP-SERIES
3-Sector Monopole Co-location Platform Kit, 12 in to 50 in OD, 14 ft 6 in face, includes twelve 126 in pipes
MC-CP14M-12-126
  • Product type: Co-location platform
  • Face width: 4.42 m | 14.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
  • Pipe length: 3200.4 mm | 126 in
SpecificationsSpecs
MC-CP14M-12-126
  • Product type: Co-location platform
  • Face width: 4.42 m | 14.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
  • Pipe length: 3200.4 mm | 126 in
MC-CP14M-12-96 MC-CP14M-12-96
Variant of MC-CP-SERIES
3-Sector Monopole Co-location Platform Kit, 12 in to 50 in OD, 14 ft 6 in face, includes twelve 96 in pipes
MC-CP14M-12-96
  • Product type: Co-location platform
  • Face width: 4.42 m | 14.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
  • Pipe length: 2438.4 mm | 96 in
SpecificationsSpecs
MC-CP14M-12-96
  • Product type: Co-location platform
  • Face width: 4.42 m | 14.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 60.96 mm | 2.4 in
  • Pipe length: 2438.4 mm | 96 in
MC-CP14M-12-96-HD MC-CP14M-12-96-HD
Variant of MC-CP-SERIES
3-Sector Heavy Duty Monopole Co-location Platform Kit, 12 in to 50 in OD, 14 ft 6 in face, includes twelve 96 in x 2-7/8 in pipes
MC-CP14M-12-96-HD
  • Product type: Co-location platform
  • Face width: 4.420 m | 14.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 73.025 mm | 2.875 in
  • Pipe length: 2438.400 mm | 96 in
SpecificationsSpecs
MC-CP14M-12-96-HD
  • Product type: Co-location platform
  • Face width: 4.420 m | 14.5 ft
  • Mounting diameter, maximum: 1270 mm | 50 in
  • Mounting diameter, minimum: 304.8 mm | 12 in
  • Pipe outer diameter: 73.025 mm | 2.875 in
  • Pipe length: 2438.400 mm | 96 in
