IC-0410-S
Base product: ICE-CANOPIES

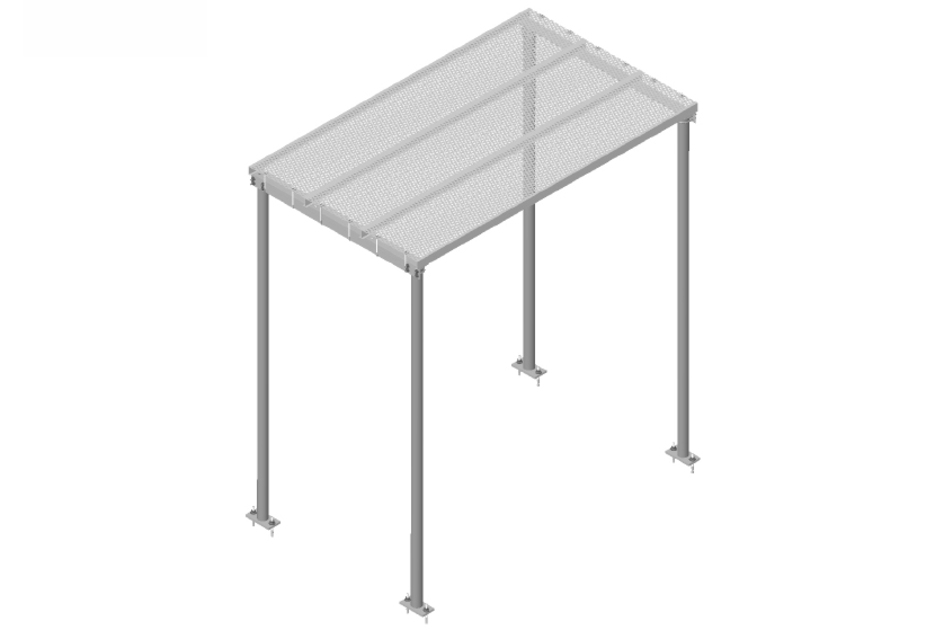

Ice Canopy, 4 ft x 10 ft, four 10 ft 6 in base shoe pipes
Specifications
Product classification
| Product Type | Ice canopies and shields |
General specifications
| Pipe, quantity | 4 |
Dimensions
| Height | 3200.4 mm | 126 in |
| Width | 3048 mm | 120 in |
| Length | 1219.200 mm | 48 in |
| Pipe Length | 3200.4 mm | 126 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hold-down clamps | Legs | Safety grating |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Ice canopies and shields |
General specifications
| Pipe, quantity | 4 |
Dimensions
| Height | 3200.4 mm | 126 in |
| Width | 3048 mm | 120 in |
| Length | 1219.200 mm | 48 in |
| Pipe Length | 3200.4 mm | 126 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hold-down clamps | Legs | Safety grating |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
