EQ-P0812-B
Base product: HEAVY-DUTY-PLATFORMS

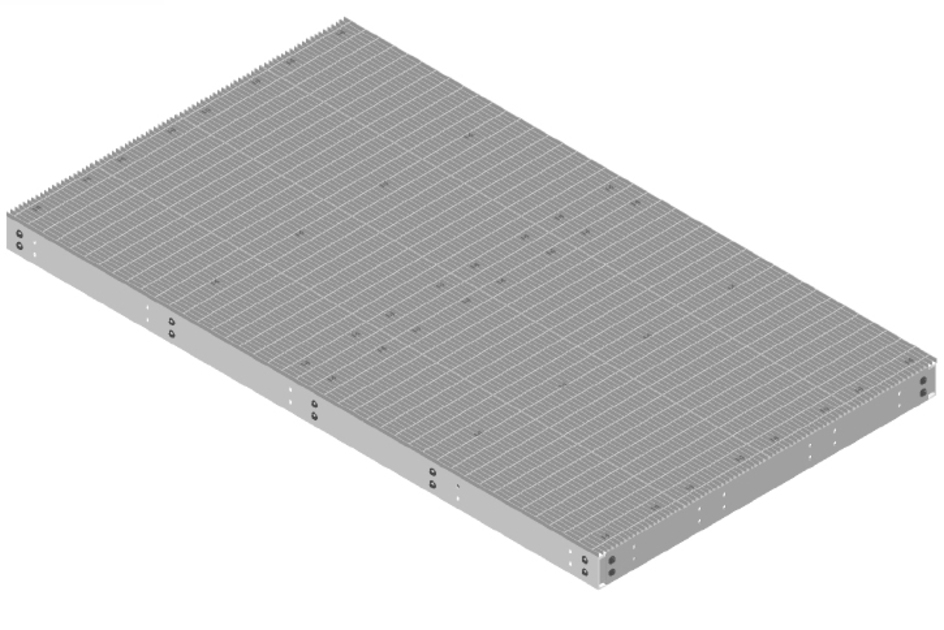

Equipment Platform, 8 ft x 12 ft, base only
Specifications
Product classification
| Product Type | Equipment platform system |
General specifications
| Legs, quantity | 0 |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 3657.6 mm | 144 in |
| Length | 2438.4 mm | 96 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and weights
| Included | Frame | Grating | Hardware |
| Packaging quantity | 1 |
| Weight, net | 680.4 kg | 1500.023 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Product Type | Equipment platform system |
General specifications
| Legs, quantity | 0 |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 3657.6 mm | 144 in |
| Length | 2438.4 mm | 96 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and weights
| Included | Frame | Grating | Hardware |
| Packaging quantity | 1 |
| Weight, net | 680.4 kg | 1500.023 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
