EQ-P0408-DF
Base product: HEAVY-DUTY-PLATFORMS

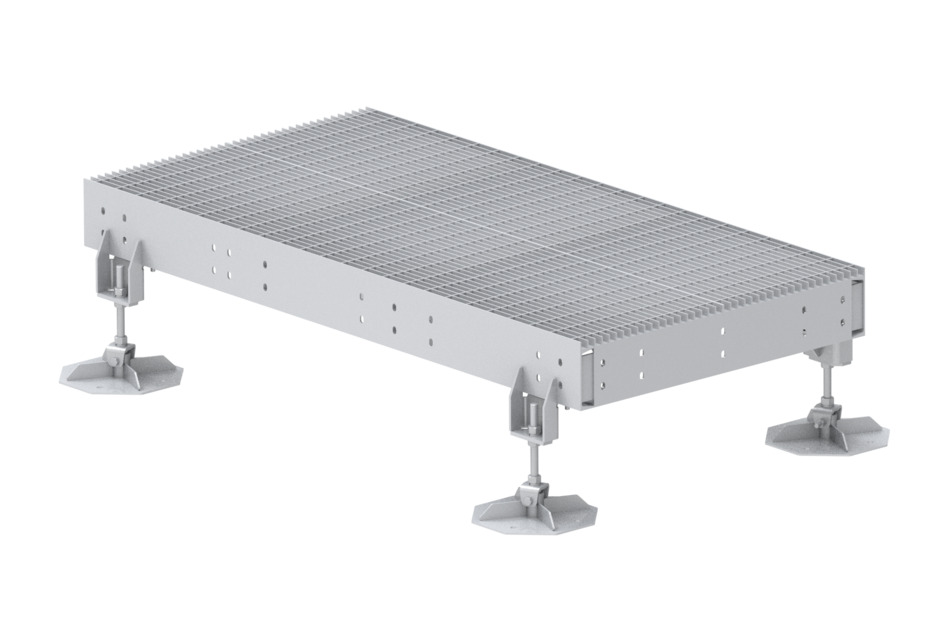

Equipment Platform, 4 ft x 8 ft, base with four weight disbursement legs
Specifications
Product classification
| Product Type | Equipment platform system |
General specifications
| Legs, quantity | 4 |
Dimensions
| Height | 685.8 mm | 27 in |
| Width | 2438.4 mm | 96 in |
| Length | 1219.2 mm | 48 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and weights
| Included | Frame | Grating | Hardware | Legs |
| Packaging quantity | 1 |
| Weight, net | 362.47 kg | 799.109 lb |
Product classification
| Product Type | Equipment platform system |
General specifications
| Legs, quantity | 4 |
Dimensions
| Height | 685.8 mm | 27 in |
| Width | 2438.4 mm | 96 in |
| Length | 1219.2 mm | 48 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and weights
| Included | Frame | Grating | Hardware | Legs |
| Packaging quantity | 1 |
| Weight, net | 362.47 kg | 799.109 lb |
