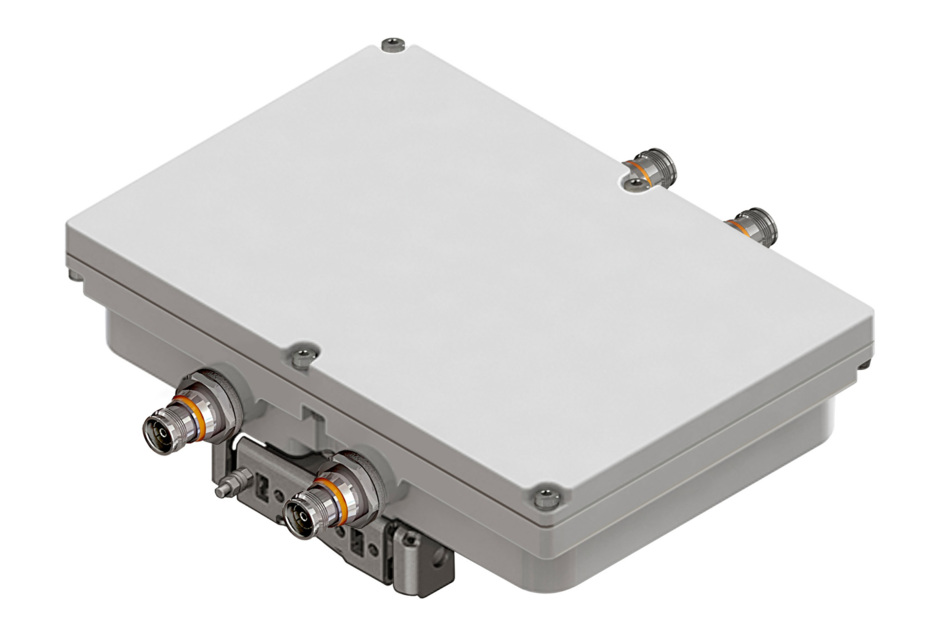

IMFT-AWSBAS-43 | E14V00P08
Twin AWS-PCS IMF for Broadcast Auxiliary Service (BAS) co-location, 4.3-10 connectors
Features and benefits
- Provides interference mitigation in the Broadcast Auxiliary Service band of 2097.5-2109.5 MHz
- Supports dual band PCS/AWS radios with diplexed ports or diplexed single band radios
- Supports AWS1-4 and PCS bands (1695–1780, 1850–2000 & 2110–2200 MHz)
- Easy to install in existing AWS systems and prevent adjacent channel interference for BAS licensees
- New 4.3-10 connectors for improved PIM performance and size reduction
- Compact form factor with reduced size and weight
- Available in twin (IMFT-AWSBAS-43) and quad (IMFQ-AWSBAS-43) configurations
Specifications
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 298 mm | 11.732 in |
| Width | 204 mm | 8.031 in |
| Depth | 65 mm | 2.559 in |
| Ground Screw Diameter | 5 mm | 0.197 in |

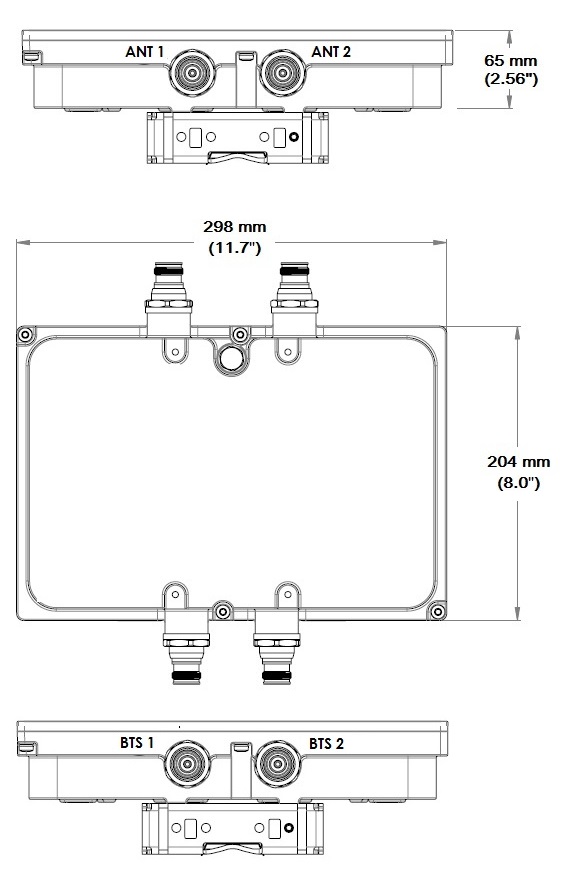

Outline drawing
| Click on image to enlarge. |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Path | ANT port to BTS port |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 1 | 1 |
| License Band | AWS 1700, Band Pass PCS 1900, Band Pass | AWS 1700, Band Pass | AWS 1700, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1695–1780 1850–2000 | 2110.3–2110.5 | 2110.5–2200 |
| Insertion Loss, maximum, dB | 0.20 | 1.80 | 1.30 |
| Insertion Loss, typical, dB | 0.10 | 1.30 | 0.20 |
| Total Group Delay, maximum, ns | 10 | 480 | 320 |
| Return Loss, typical, dB | 18 | 18 | 18 |
| Input Power, RMS, maximum, W | 100 | 100 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 | 1,000 |
| Higher Order PIM, minimum, dBc | -161 | -161 | -161 |
| Higher Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones | 2 x 20 W CW tones |
Electrical specifications, band reject
| Frequency Range, MHz | 2097.5–2109.5 | 2097.5–2109.5 | |
| Attenuation, minimum, dB | 30.0 | 30.0 |

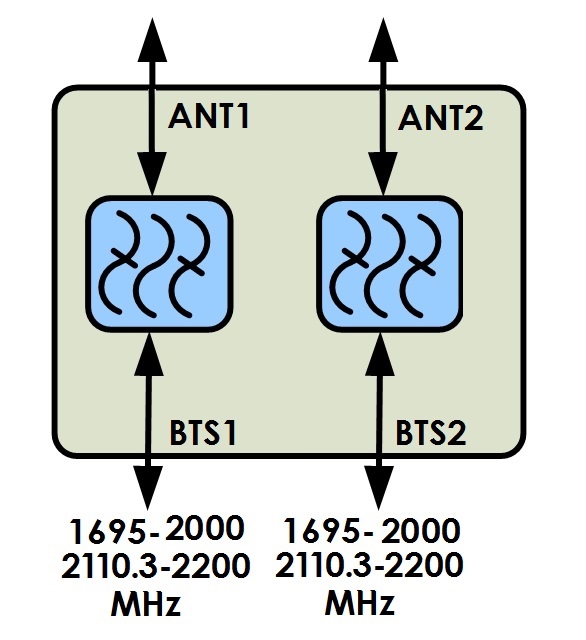

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.7 kg | 1.543 lb |
| Weight, without mounting hardware | 4.1 kg | 9.039 lb |
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 298 mm | 11.732 in |
| Width | 204 mm | 8.031 in |
| Depth | 65 mm | 2.559 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Path | ANT port to BTS port |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 1 | 1 |
| License Band | AWS 1700, Band Pass; PCS 1900, Band Pass | AWS 1700, Band Pass | AWS 1700, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1695–1780; 1850–2000 | 2110.3–2110.5 | 2110.5–2200 |
| Insertion Loss, maximum, dB | 0.20 | 1.80 | 1.30 |
| Insertion Loss, typical, dB | 0.10 | 1.30 | 0.20 |
| Total Group Delay, maximum, ns | 10 | 480 | 320 |
| Return Loss, typical, dB | 18 | 18 | 18 |
| Input Power, RMS, maximum, W | 100 | 100 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 | 1,000 |
| Higher Order PIM, minimum, dBc | -161 | -161 | -161 |
| Higher Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones | 2 x 20 W CW tones |
Electrical specifications, band reject
| Frequency Range, MHz | 2097.5–2109.5 | 2097.5–2109.5 | |
| Attenuation, minimum, dB | 30.0 | 30.0 |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.7 kg | 1.543 lb |
| Weight, without mounting hardware | 4.1 kg | 9.039 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
