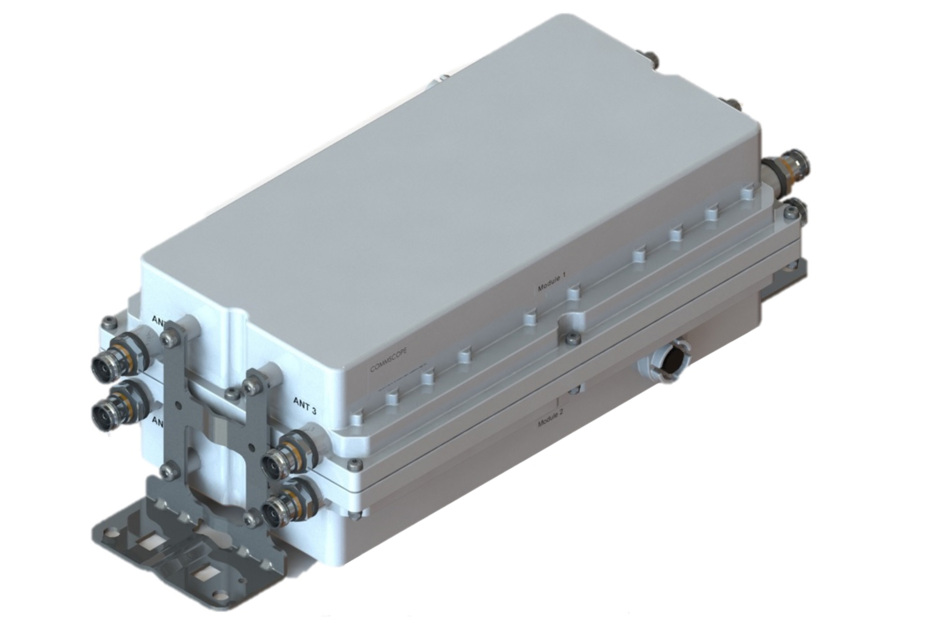

IMFQ-LMR-43 | E14V00P23
Quad IMF 700-750MHz Reject guard 757-758 MHz, DC Pass, 4.3-10 connectors
Features and benefits
- Pass USA 700 & LMR 750 bands
- Reject any emission in LMR guard band 757-758 MHz
- DC/AISG passing capability from BTS port to ANT port
- New 4.3-10 connectors for improved PIM performance and size reduction
Specifications
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 4-Quad |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 392 mm | 15.433 in |
| Width | 226 mm | 8.898 in |
| Depth | 150 mm | 5.906 in |

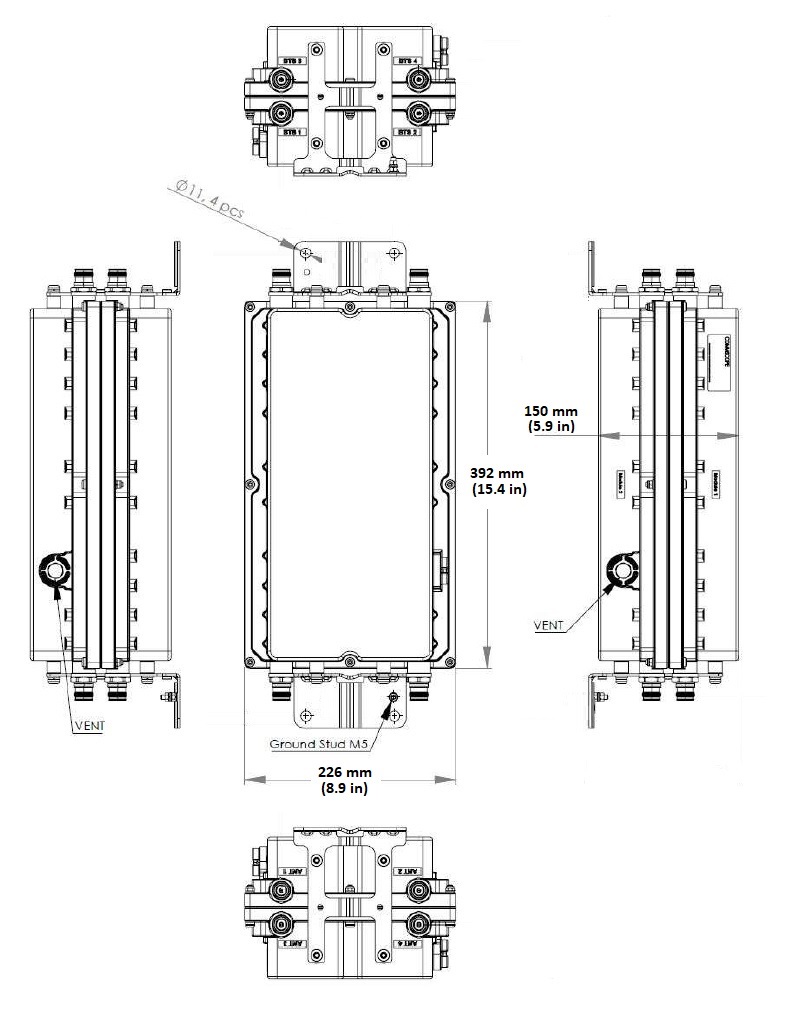

Outline drawing
| Click on image to enlarge. |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Path | Branch 1 |
| Lightning Surge Current | 8 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 1 |
| Port Designation | Band 12 | Band 14 |
| License Band | USA 700, Band Pass | USA 750, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 699–746 | 758.5–798 |
| Insertion Loss, maximum, dB | 0.30 | 2.80 |
| Insertion Loss, typical, dB | 0.15 | 0.25 |
| Total Group Delay, maximum, ns | 10 | 600 |
| Return Loss, minimum, dB | 18 | 18 |
| Input Power, RMS, maximum, W | 160 | |
| Input Power, PEP, maximum, W | 1,600 | |
| 3rd Order PIM, maximum, dBc | -161 |
Electrical specifications, band reject
| Frequency Range, MHz | 757–758 | |
| Attenuation, minimum, dB | 30.0 |

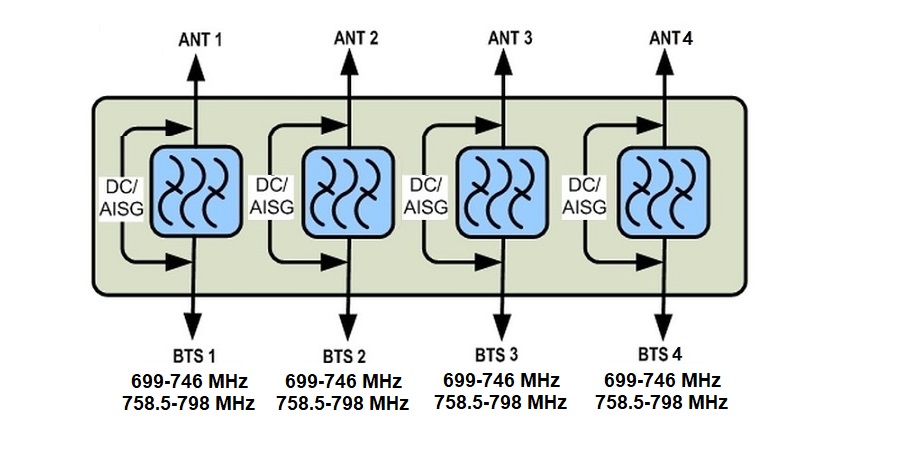

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.9 kg | 1.984 lb |
| Weight, without mounting hardware | 10.4 kg | 22.928 lb |
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 4-Quad |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 392 mm | 15.433 in |
| Width | 226 mm | 8.898 in |
| Depth | 150 mm | 5.906 in |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Path | Branch 1 |
| Lightning Surge Current | 8 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 1 |
| Port Designation | Band 12 | Band 14 |
| License Band | USA 700, Band Pass | USA 750, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 699–746 | 758.5–798 |
| Insertion Loss, maximum, dB | 0.30 | 2.80 |
| Insertion Loss, typical, dB | 0.15 | 0.25 |
| Total Group Delay, maximum, ns | 10 | 600 |
| Return Loss, minimum, dB | 18 | 18 |
| Input Power, RMS, maximum, W | 160 | |
| Input Power, PEP, maximum, W | 1,600 | |
| 3rd Order PIM, maximum, dBc | -161 |
Electrical specifications, band reject
| Frequency Range, MHz | 757–758 | |
| Attenuation, minimum, dB | 30.0 |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.9 kg | 1.984 lb |
| Weight, without mounting hardware | 10.4 kg | 22.928 lb |
