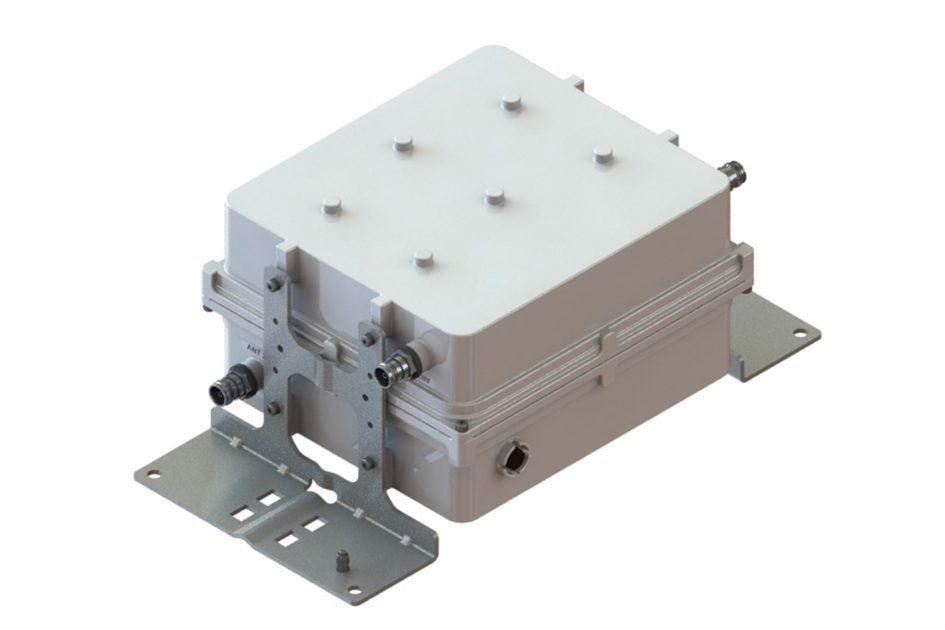

E14V00P95
CS-IMF 804-809/849-854 RJ50 788- 803
Features and benefits
- New 4.3-10 connectors for improved PIM performance and size reduction
Specifications
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 312 mm | 12.283 in |
| Width | 279 mm | 10.984 in |
| Depth | 172 mm | 6.772 in |
| Ground Screw Diameter | 5 mm | 0.197 in |

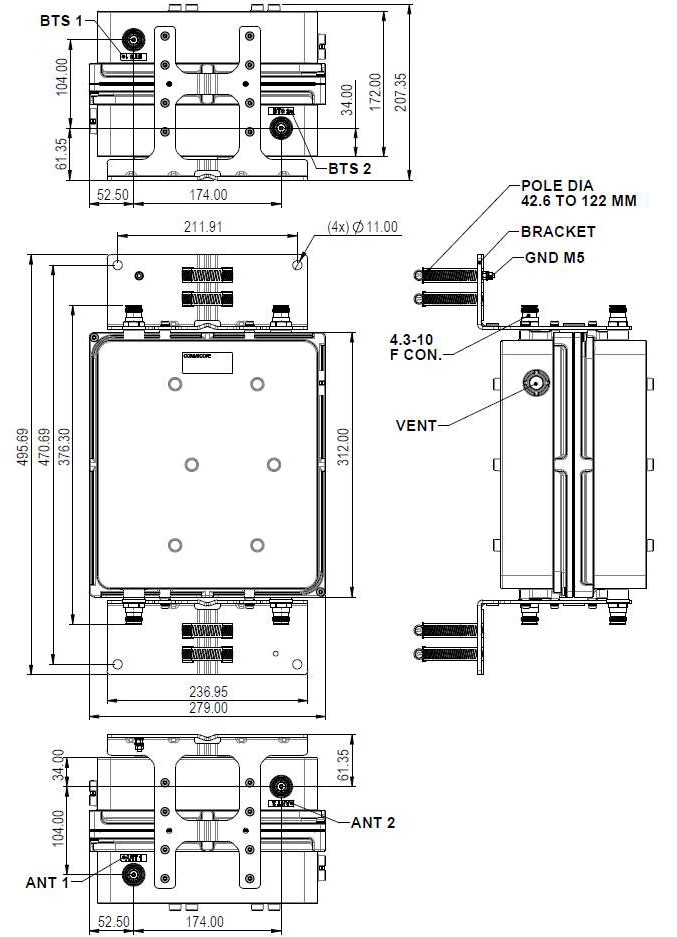

Outline drawing
| Click on image to enlarge. |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 1 |
Electrical specifications, band pass
| Frequency Range, MHz | 849–854 | 804–809 |
| Insertion Loss, maximum, dB | 0.40 | 1.15 |
| Insertion Loss, typical, dB | 0.20 | 0.30 |
| Group Delay Variation, maximum, ns | 5 | 650 |
| Total Group Delay, maximum, ns | 45 | 800 |
| Total Group Delay, typical, ns | 35 | 400 |
| Return Loss, minimum, dB | 18 | 18 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, minimum, dB | 60 | 60 |
| Input Power, RMS, maximum, W | 300 | |
| Input Power, PEP, maximum, W | 1,500 | |
| 3rd Order PIM, maximum, dBc | -153 | |
| 3rd Order PIM, typical, dBc | -155 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones |
Electrical specifications, band reject
| Frequency Range, MHz | 788–803 | |
| Attenuation, minimum, dB | 50.0 | |
| Attenuation, typical, dB | 53.0 |

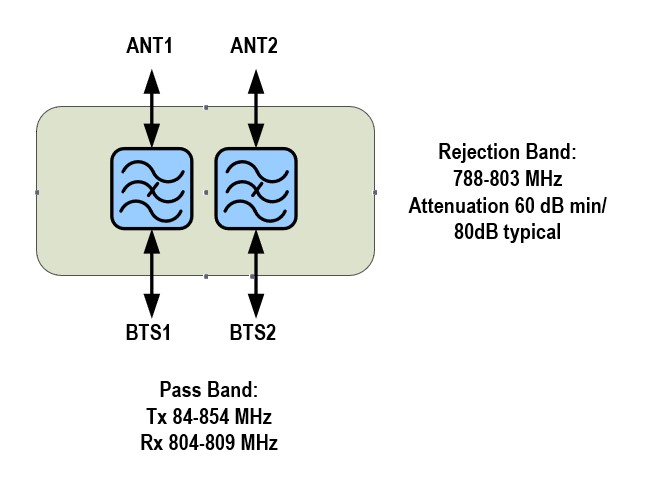

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Volume | 12 L |
| Weight, net | 18.4 kg | 40.565 lb |
| Weight, without mounting hardware | 16.2 kg | 35.715 lb |
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 312 mm | 12.283 in |
| Width | 279 mm | 10.984 in |
| Depth | 172 mm | 6.772 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 1 |
Electrical specifications, band pass
| Frequency Range, MHz | 849–854 | 804–809 |
| Insertion Loss, maximum, dB | 0.40 | 1.15 |
| Insertion Loss, typical, dB | 0.20 | 0.30 |
| Group Delay Variation, maximum, ns | 5 | 650 |
| Total Group Delay, maximum, ns | 45 | 800 |
| Total Group Delay, typical, ns | 35 | 400 |
| Return Loss, minimum, dB | 18 | 18 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, minimum, dB | 60 | 60 |
| Input Power, RMS, maximum, W | 300 | |
| Input Power, PEP, maximum, W | 1,500 | |
| 3rd Order PIM, maximum, dBc | -153 | |
| 3rd Order PIM, typical, dBc | -155 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones |
Electrical specifications, band reject
| Frequency Range, MHz | 788–803 | |
| Attenuation, minimum, dB | 50.0 | |
| Attenuation, typical, dB | 53.0 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Volume | 12 L |
| Weight, net | 18.4 kg | 40.565 lb |
| Weight, without mounting hardware | 16.2 kg | 35.715 lb |
