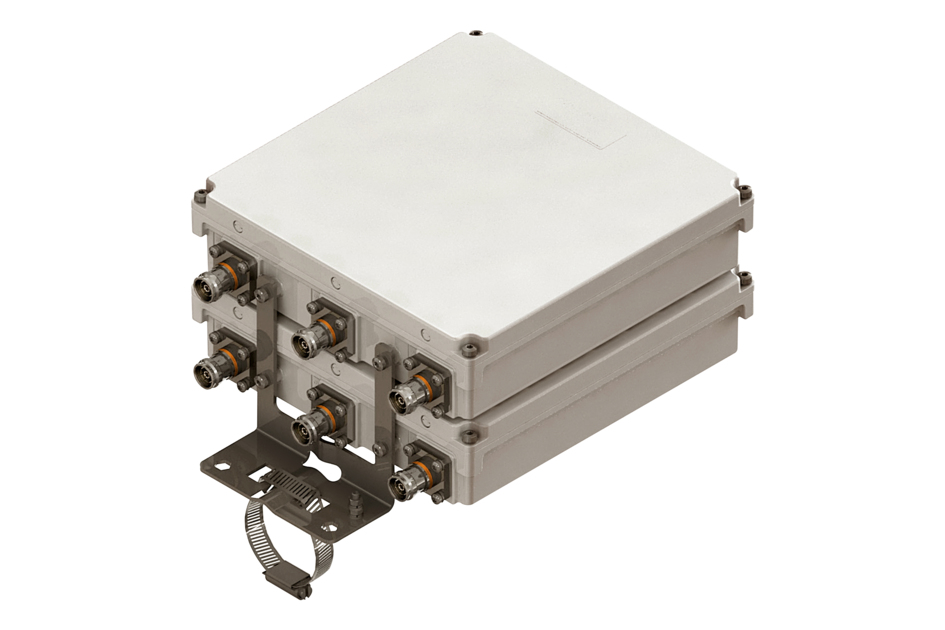

E14F10P10
2X Triplexer 694-862/880-960/1800-2100-2300-2600, DC Smart Bypass, with 4.3-10 connectors
Features and benefits
- Industry leading PIM performance
- Twin configuration
- New 4.3-10 connectors for improved PIM performance and size reduction
- Designed for network modernization application, introduction of LTE700 and LTE800 on existing site
Specifications
Product classification
| Product Type | Triplexer |
General specifications
| Color | Gray |
| Common Port Label | COMM |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 257 mm | 10.118 in |
| Width | 251 mm | 9.882 in |
| Depth | 130 mm | 5.118 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |

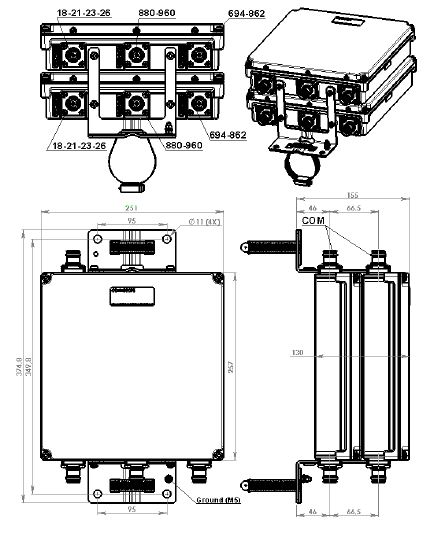

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | CEL 900 | DCS 1800 | EDD 800 | IMT 2100 | IMT 2600 | LMR 900 | TDD 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Autosensing |
| dc/AISG Pass-through, demultiplexer | Autosensing |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 18-21-23-26 | 880-960 | 694-862 |
| License Band | DCS 1800, Band Pass IMT 2100, Band Pass IMT 2600, Band Pass TDD 2300, Band Pass | CEL 900, Band Pass LMR 900, Band Pass | APT 700, Band Pass EDD 800, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1710–1880 1920–2170 2300–2690 | 880–960 | 694–862 |
| Insertion Loss, typical, dB | 0.35 | 0.30 | 0.35 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 300 | 300 | 300 |
| Input Power, PEP, maximum, W | 3,000 | 3,000 | 3,000 |
| 3rd Order PIM, typical, dBc | -160 | -160 | -160 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |

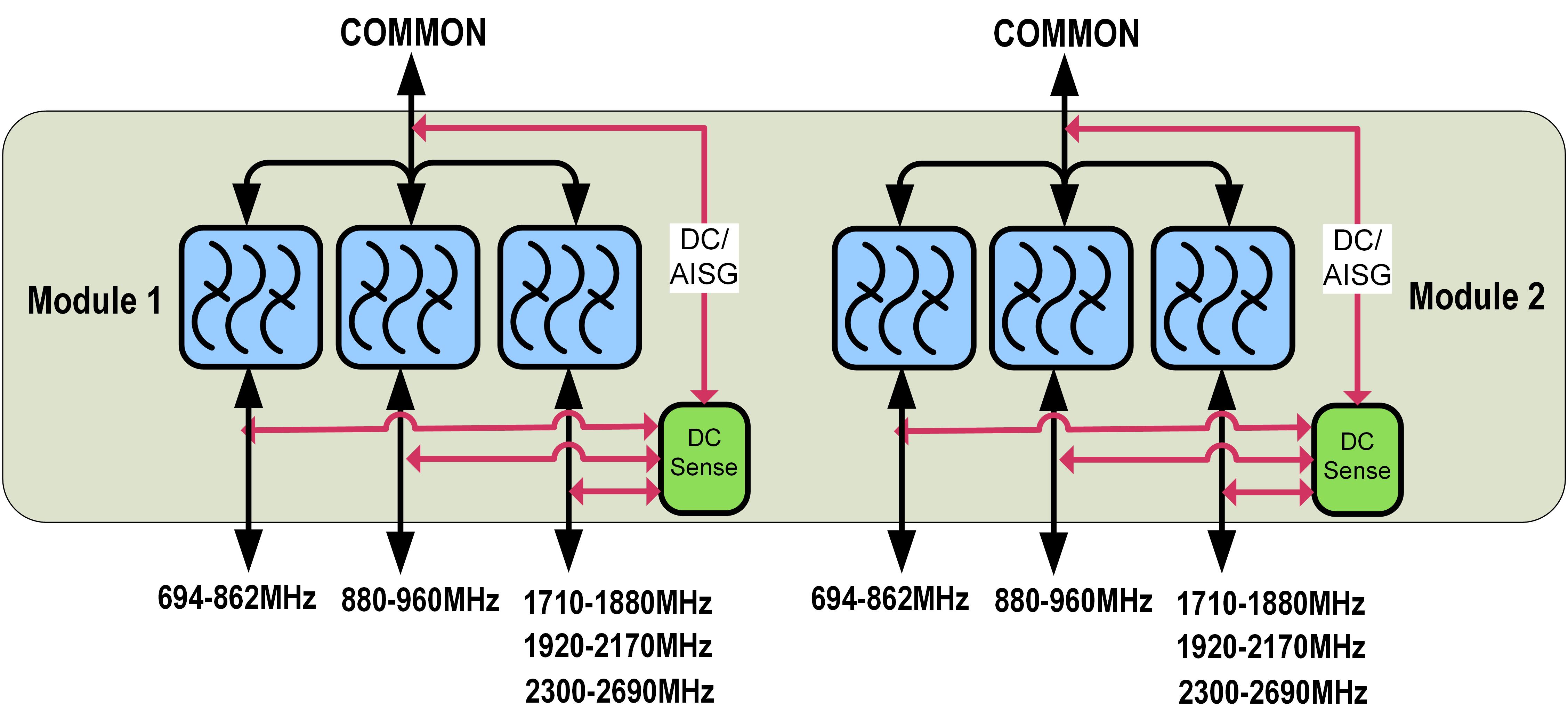

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 8.4 L |
| Weight, net | 8.2 kg | 18.078 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Triplexer |
General specifications
| Color | Gray |
| Common Port Label | COMM |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 257 mm | 10.118 in |
| Width | 251 mm | 9.882 in |
| Depth | 130 mm | 5.118 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | CEL 900 | DCS 1800 | EDD 800 | IMT 2100 | IMT 2600 | LMR 900 | TDD 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Autosensing |
| dc/AISG Pass-through, demultiplexer | Autosensing |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 18-21-23-26 | 880-960 | 694-862 |
| License Band | DCS 1800, Band Pass; IMT 2100, Band Pass; IMT 2600, Band Pass; TDD 2300, Band Pass | CEL 900, Band Pass; LMR 900, Band Pass | APT 700, Band Pass; EDD 800, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1710–1880; 1920–2170; 2300–2690 | 880–960 | 694–862 |
| Insertion Loss, typical, dB | 0.35 | 0.30 | 0.35 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 300 | 300 | 300 |
| Input Power, PEP, maximum, W | 3,000 | 3,000 | 3,000 |
| 3rd Order PIM, typical, dBc | -160 | -160 | -160 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 8.4 L |
| Weight, net | 8.2 kg | 18.078 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
