E12F03P90

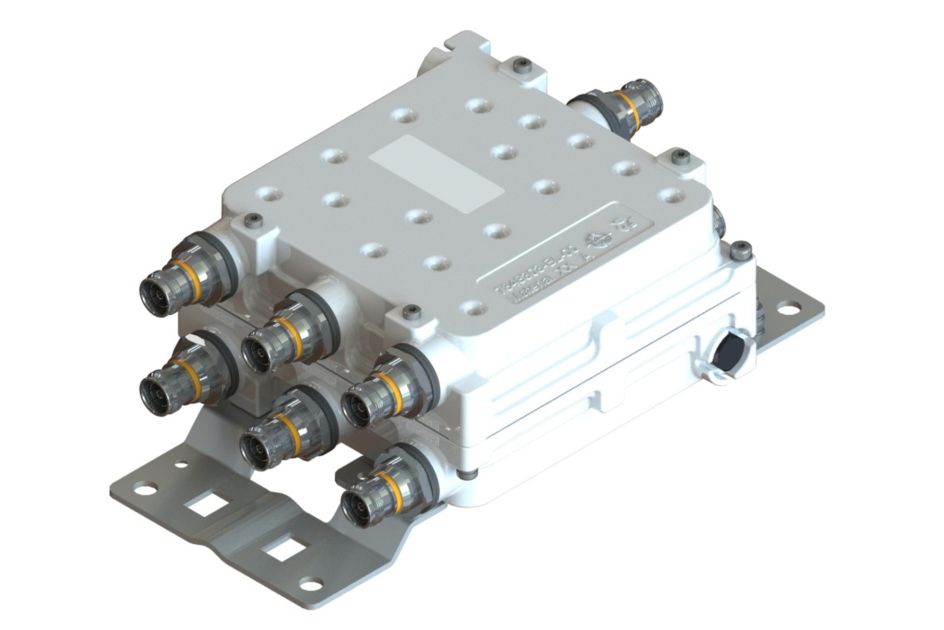

Ultra Compact Twin Triplexer 1710-1880/1920-2170/2300-2690, with 4.3-10 connectors
Features and benefits
- Ideal for small cell applications
- Compact form factor with reduced size and weight
- Suitable for space limited applications like Metro Cell, Lamp Pole, Concealment Solution and Macro Site
- New 4.3-10 connectors for improved PIM performance and size reduction
- Twin configuration
- dc/AISG blocking on all ports
Specifications
Product classification
| Product Type | Triplexer |
General specifications
| Product Family | CBC182126 |
| Color | Gray |
| Common Port Label | COMM |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 178 mm | 7.008 in |
| Width | 178 mm | 7.008 in |
| Depth | 90 mm | 3.543 in |
| Mounting Pipe Diameter Range | 40–160 mm |

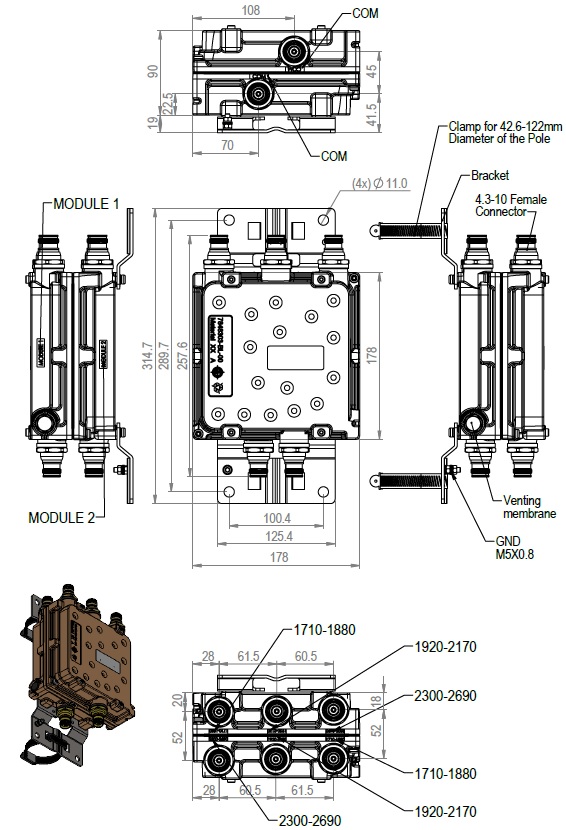

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | DCS 1800 | IMT 2100 | IMT 2600 | TDD 2300 | TDD 2600 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | No dc/AISG pass-through |
| dc/AISG Pass-through, combiner | dc/AISG blocking on all ports |
| dc/AISG Pass-through, demultiplexer | dc/AISG blocking on all ports |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 1710-1880 | 1920-2170 | 2300-2690 |
| License Band | DCS 1800, Band Pass | IMT 2100, Band Pass | IMT 2600, Band Pass TDD 2300, Band Pass TDD 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1710–1880 | 1920–2170 | 2300–2690 |
| Insertion Loss, typical, dB | 0.25 | 0.25 | 0.20 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, typical, dB | 52 | 52 | 52 |
| Input Power, RMS, maximum, W | 250 | 250 | 250 |
| Input Power, PEP, maximum, W | 1,500 | 1,500 | 1,500 |
| 3rd Order PIM, typical, dBc | -155 | -155 | -155 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |

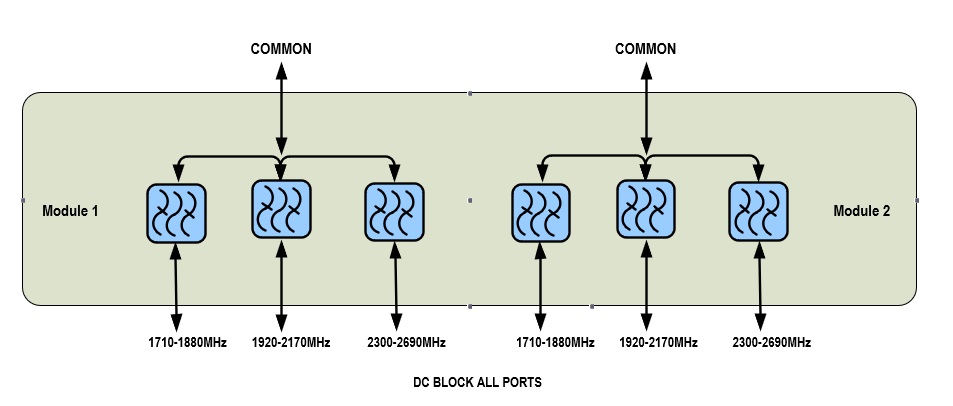

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 2.85 L |
| Weight, net | 4.3 kg | 9.480 lb |
| Weight, without mounting hardware | 3.8 kg | 8.378 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Triplexer |
General specifications
| Product Family | CBC182126 |
| Color | Gray |
| Common Port Label | COMM |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 178 mm | 7.008 in |
| Width | 178 mm | 7.008 in |
| Depth | 90 mm | 3.543 in |
| Mounting Pipe Diameter Range | 40–160 mm |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | DCS 1800 | IMT 2100 | IMT 2600 | TDD 2300 | TDD 2600 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | No dc/AISG pass-through |
| dc/AISG Pass-through, combiner | dc/AISG blocking on all ports |
| dc/AISG Pass-through, demultiplexer | dc/AISG blocking on all ports |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 1710-1880 | 1920-2170 | 2300-2690 |
| License Band | DCS 1800, Band Pass | IMT 2100, Band Pass | IMT 2600, Band Pass; TDD 2300, Band Pass; TDD 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1710–1880 | 1920–2170 | 2300–2690 |
| Insertion Loss, typical, dB | 0.25 | 0.25 | 0.20 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, typical, dB | 52 | 52 | 52 |
| Input Power, RMS, maximum, W | 250 | 250 | 250 |
| Input Power, PEP, maximum, W | 1,500 | 1,500 | 1,500 |
| 3rd Order PIM, typical, dBc | -155 | -155 | -155 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 2.85 L |
| Weight, net | 4.3 kg | 9.480 lb |
| Weight, without mounting hardware | 3.8 kg | 8.378 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
