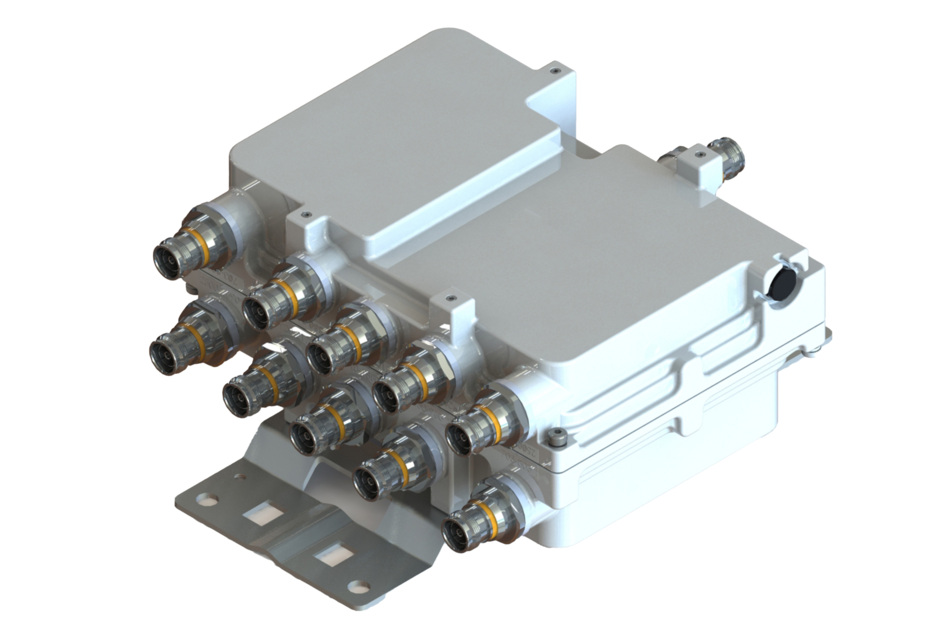

E14F20P04
Twin Pentaplexer 703-803/880-960/1710-1880/1920-2170/2500-2690, dc bypass on all ports, with 4.3-10 connectors
Features and benefits
- Designed for network Modernization, introduction of LTE2600 on existing site
- New 4.3-10 connectors for improved PIM performance and size reduction
- Suitable for feeders cables reduction
- dc/AISG pass-through on all frequency ports
- Clam shell configuration
Specifications
Product classification
| Product Type | Pentaplexer |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 119 mm | 4.685 in |
| Width | 252 mm | 9.921 in |
| Depth | 180 mm | 7.087 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |

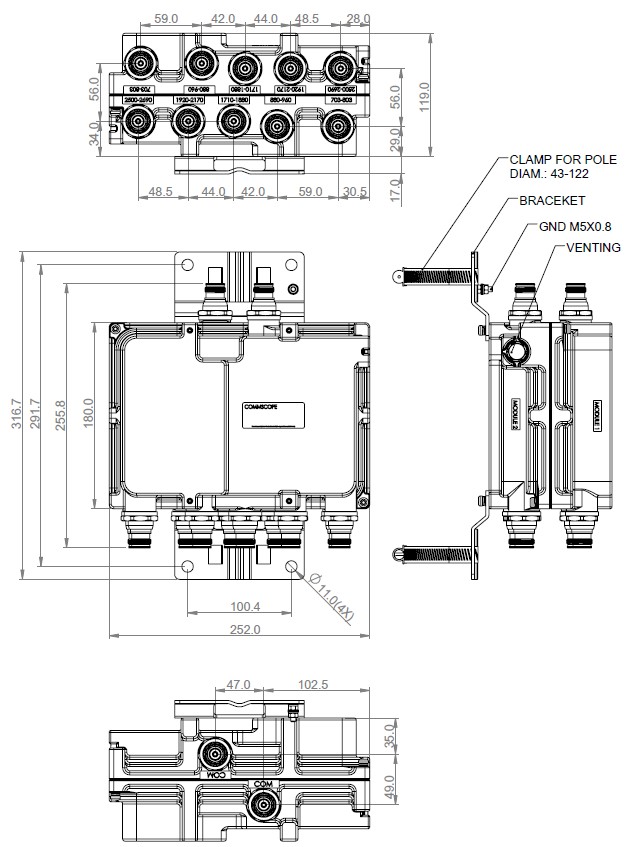

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 1 | Branch 2 | Branch 3 | Branch 4 | Branch 5 |
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 | Branch 3 | Branch 4 | Branch 5 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 | Branch 3 | Branch 4 | Branch 5 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 0.5 dB |
| Return Loss, minimum | 15 dB |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 | 4 | 5 |
| Port Designation | PORT 1 703-803 | PORT 2 880-960 | PORT 3 1710-1880 | PORT 4 1920-2170 | PORT 5 2500-2690 |
Electrical specifications, band pass
| Frequency Range, MHz | 703–803 | 880–960 | 1710–1880 | 1920–2170 | 2500–2690 |
| Insertion Loss, typical, dB | 0.15 | 0.15 | 0.25 | 0.25 | 0.15 |
| Return Loss, typical, dB | 20 | 20 | 20 | 20 | 20 |
| Isolation, typical, dB | 55 | 55 | 55 | 55 | 55 |
| Input Power, RMS, maximum, W | 100 | 100 | 100 | 100 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| 3rd Order PIM, typical, dBc | -155 | -155 | -155 | -155 | -155 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |

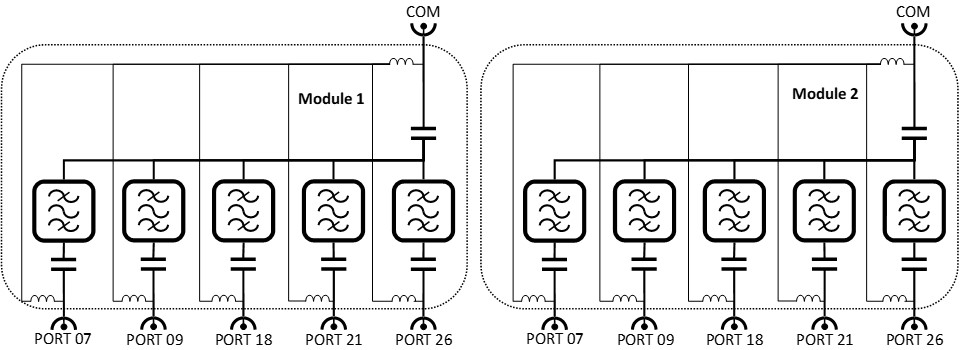

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 5.4 L |
| Weight, with mounting hardware | 7.4 kg | 16.314 lb |
| Weight, without mounting hardware | 6.9 kg | 15.212 lb |
