UDX1926Q-N10 | E11F03P81
Ultra Compact Quad-pack Diplexer PCS/AWS+WCS+BRS, DC AWS/WCS/BRS, NEX10 Connector
Features and benefits
- Quad configuration, 4x4 MIMO ready
- Ideal for small cell applications
- BTS-to-feeder and feeder-to-antenna application
- DC/AISG pass on 1695-1780/2110-2700 MHz
- Industry leading PIM performance
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Common Port Label | Common |
| Modularity | 4-Quad |
| RF Connector Interface | NEX10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 65 mm | 2.559 in |
| Width | 100 mm | 3.937 in |
| Depth | 103 mm | 4.055 in |

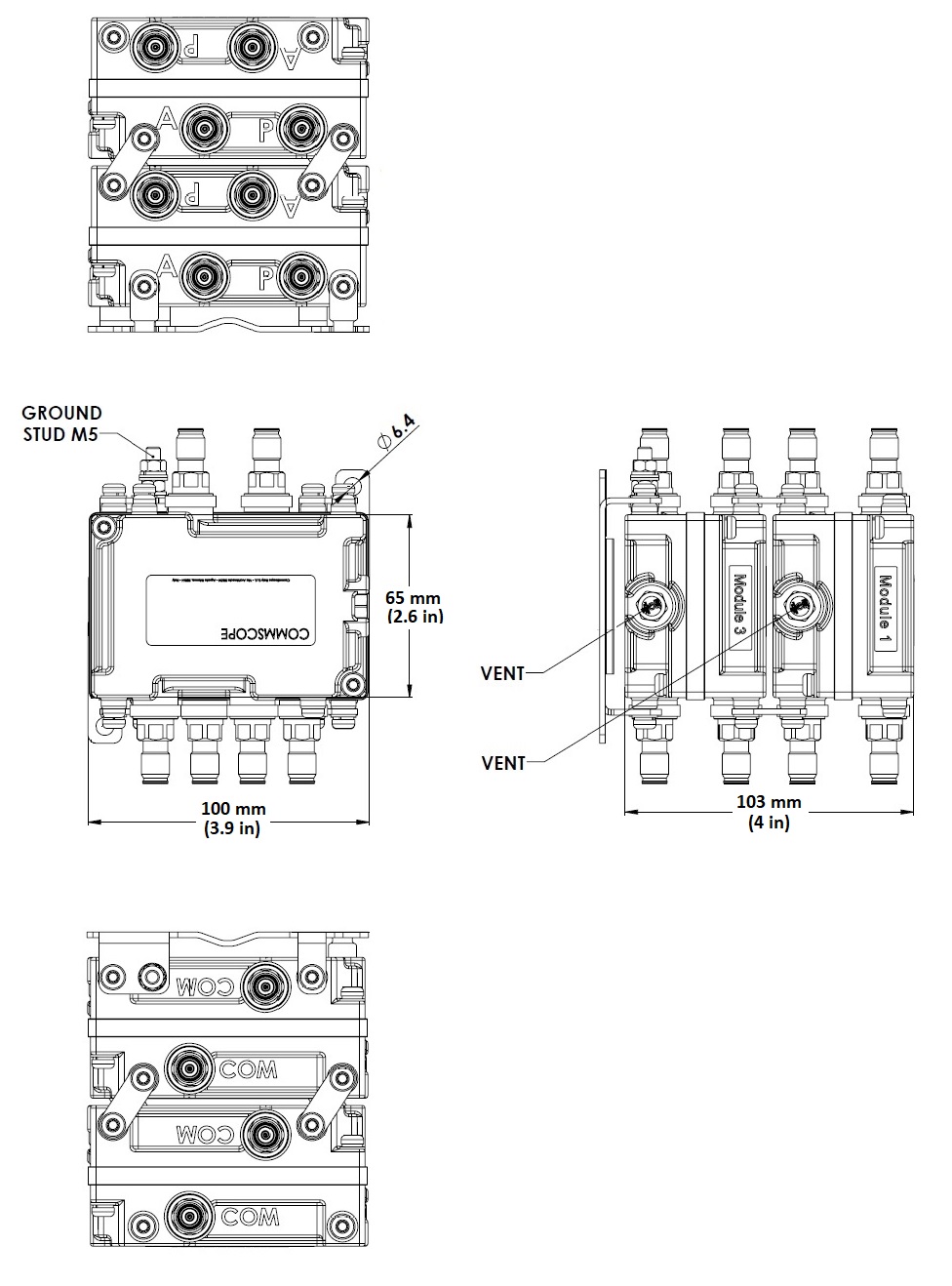

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | IMT 2600 | PCS 1900 | TDD 1900 | TDD 2300 | TDD 2600 | WCS 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 2 |
| dc/AISG Pass-through, combiner | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 2 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 10–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2.176 MHz ± 100 ppm |
Electrical specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 2 |
| Port Designation | PCS | AWS-WCS-BRS |
| License Band | PCS 1900, Band Pass | AWS 1700, Band Pass IMT 2600, Band Pass TDD 2300, Band Pass TDD 2600, Band Pass WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1850-1995 | 1695–1780 2110–2700 |
| Insertion Loss, typical, dB | 0.25 | 0.18 |
| Total Group Delay, maximum, ns | 13 | 10 |
| Return Loss, typical, dB | 22 | 22 |
| Isolation, minimum, dB | 35 | 35 |
| Input Power, RMS, maximum, W | 100 | 100 |
| Input Power, PEP, maximum, W | 1,500 | 1,500 |
| 3rd Order PIM, maximum, dBc | -155 | -155 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |

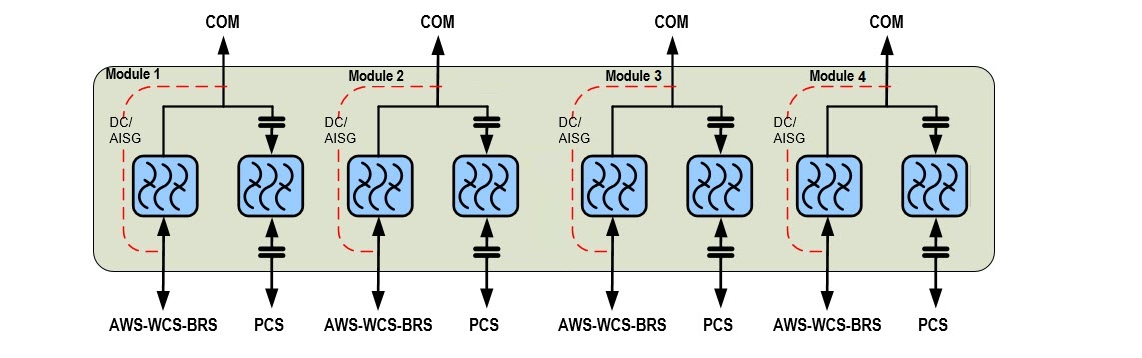

Block diagram
| Click on image to enlarge. |
Material specifications
| Finish | Painted |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.1 kg | 0.220 lb |
| Weight, without mounting hardware | 1.4 kg | 3.086 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Common Port Label | Common |
| Modularity | 4-Quad |
| RF Connector Interface | NEX10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 65 mm | 2.559 in |
| Width | 100 mm | 3.937 in |
| Depth | 103 mm | 4.055 in |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | IMT 2600 | PCS 1900 | TDD 1900 | TDD 2300 | TDD 2600 | WCS 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 2 |
| dc/AISG Pass-through, combiner | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 2 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 10–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2.176 MHz ± 100 ppm |
Electrical specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 2 |
| Port Designation | PCS | AWS-WCS-BRS |
| License Band | PCS 1900, Band Pass | AWS 1700, Band Pass; IMT 2600, Band Pass; TDD 2300, Band Pass; TDD 2600, Band Pass; WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1850-1995 | 1695–1780; 2110–2700 |
| Insertion Loss, typical, dB | 0.25 | 0.18 |
| Total Group Delay, maximum, ns | 13 | 10 |
| Return Loss, typical, dB | 22 | 22 |
| Isolation, minimum, dB | 35 | 35 |
| Input Power, RMS, maximum, W | 100 | 100 |
| Input Power, PEP, maximum, W | 1,500 | 1,500 |
| 3rd Order PIM, maximum, dBc | -155 | -155 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |
Material specifications
| Finish | Painted |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.1 kg | 0.220 lb |
| Weight, without mounting hardware | 1.4 kg | 3.086 lb |

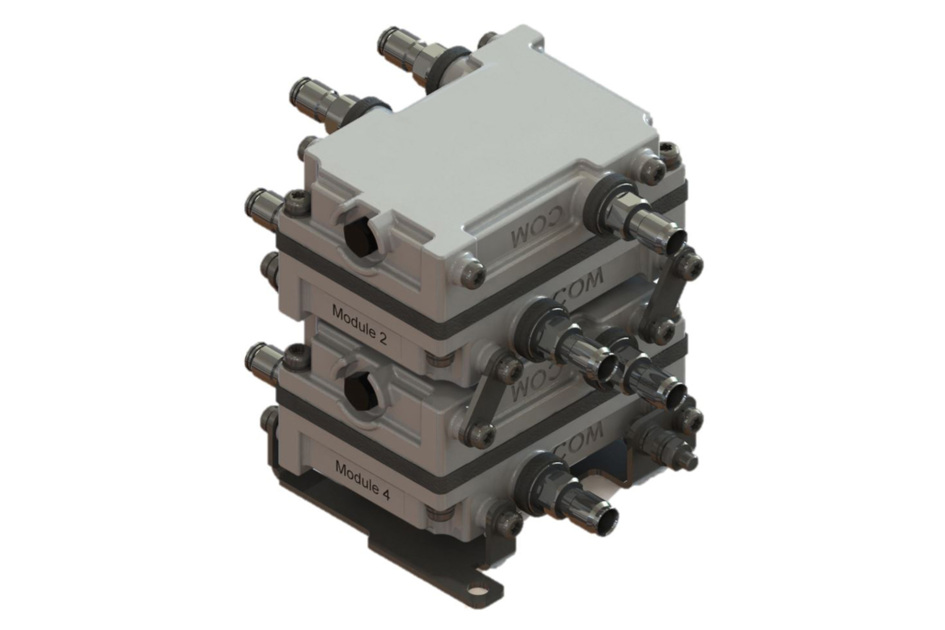

| Click on image to enlarge. |
