PGP-CS10-R
Base product: PIM-GUARD-CABLE-SUPPORTS

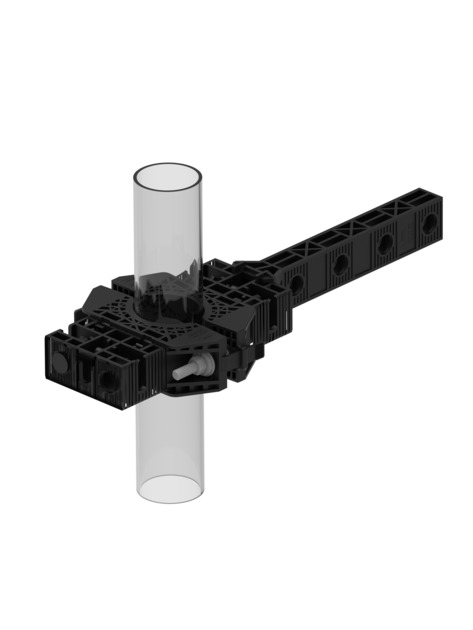

Polymer PIM-Guard® Antenna and RRU Cable Support Bracket with Reverse orientation for use under RRUs - 10 positions / 20 cables for stackable hangers (up to 2 per position)
Features and benefits
Compatible with first and second generation Polymer PIM-Guard products
-SSH-1416
-SSH-411
-SSH-1117
-SSH-1416
-SSH-411
-SSH-1117
Specifications
Product classification
| Product Type | Antenna/RRU Cable Support |
| Product Brand | PIM-Guard® |
General specifications
| Cable Runs, quantity | 10 |
| Hole, quantity | 10 |
| Mounting | Round member |
Dimensions
| Height | 50.800 mm | 2 in |
| Mounting Diameter, maximum | 76.200 mm | 3 in |
| Mounting Diameter, minimum | 60.960 mm | 2.4 in |
| Hole Size | 3/4 in |
Material specifications
| Material Type | Engineered polymer |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 0.67 kg | 1.477 lb |
Product classification
| Product Type | Antenna/RRU Cable Support |
| Product Brand | PIM-Guard® |
General specifications
| Cable Runs, quantity | 10 |
| Hole, quantity | 10 |
| Mounting | Round member |
Dimensions
| Height | 50.800 mm | 2 in |
| Mounting Diameter, maximum | 76.200 mm | 3 in |
| Mounting Diameter, minimum | 60.960 mm | 2.4 in |
| Hole Size | 3/4 in |
Material specifications
| Material Type | Engineered polymer |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 0.67 kg | 1.477 lb |
