760133546

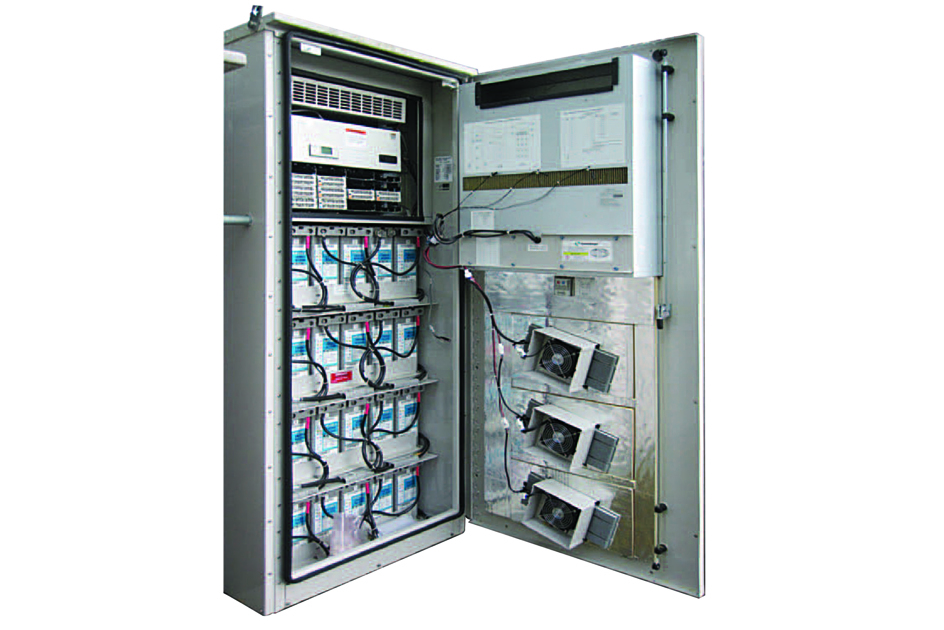

RBA84-36 24V-Primary / 48V-Secondary Power & Battery Cabinet
Features and benefits
- Sealed to outside environment
- Double wall construction
Specifications
Product classification
| Product Type | Power supply enclosure |
General specifications
| Access | Front door | Rear door |
| Batteries | Not included |
| Batteries Supported | 180 A-h batteries |
| Cabinet Type | Battery back-up cabinet |
| Color | Beige |
| Cooling | Heat exchange |
Dimensions
| Height | 2133.6 mm | 84 in |
| Width | 914.4 mm | 36 in |
| Depth | 990.6 mm | 39 in |
Electrical specifications
| Battery String Current, maximum | 4320 A-h @ 24 Vdc |
| Voltage | 24 Vdc | 48 Vdc |
Material specifications
| Finish | Powder coated |
Environmental specifications
| Qualification Standards | OSHA | Telcordia GR-487 |
Packaging and weights
| Weight, net | 371.946 kg | 820 lb |
| Weight, with batteries, typical | 1995.806 kg | 4400 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Power supply enclosure |
General specifications
| Access | Front door | Rear door |
| Batteries | Not included |
| Batteries Supported | 180 A-h batteries |
| Cabinet Type | Battery back-up cabinet |
| Color | Beige |
| Cooling | Heat exchange |
Dimensions
| Height | 2133.6 mm | 84 in |
| Width | 914.4 mm | 36 in |
| Depth | 990.6 mm | 39 in |
Electrical specifications
| Battery String Current, maximum | 4320 A-h @ 24 Vdc |
| Voltage | 24 Vdc | 48 Vdc |
Material specifications
| Finish | Powder coated |
Environmental specifications
| Qualification Standards | OSHA | Telcordia GR-487 |
Packaging and weights
| Weight, net | 371.946 kg | 820 lb |
| Weight, with batteries, typical | 1995.806 kg | 4400 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documentation & downloads
