CMC24
Base product
- Available in:
- Latin America
- North America

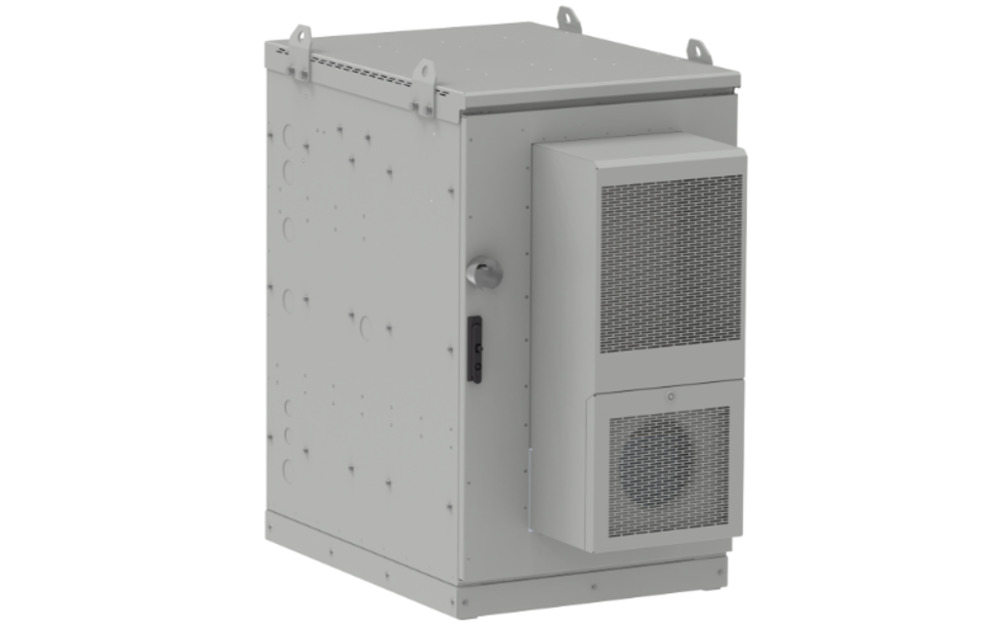

Base 24RU Micro Outdoor Cabinet
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and benefits
The cabinet is designed to house rack mounted equipment and battery strings. This includes DC power systems, Fiber storage/splice trays, cell site routers, batteries, and other rack mounted equipment. This cabinet provides mechanical and environmental protection for the equipment inside. The cabinet has rack mount rails in both the front and rear of the cabinet, this includes a front door and rear door.
- Excellent Thermal Performance compatible with thermosiphon or HVAC
- Provides mounting space for power distribution, network servers, batteries, or other equipment.
- Front door compatible with Pad Lock.
- Rear door compatible with Pad Lock.
- Provides flexible access for the cable entrances.
- Optional heater for cold environments.
- Provides 16RU of 19” or 23” Rach Space for Equipment in the front and another 16RU in the rear for a total of 32RU. Without
a battery compartment, the cabinet provides 24RU in the front and 24RU in the rear for a total of 48RU. - Common parts available across the same platform.
- Cabinet is 48” high to fit fiber to the home (FTTH) deployment needs.
Specifications
Product classification
| Regional Availability | Latin America | North America |
| Product Type | Macro cell site enclosure |
| Product Series | CMC |
| Warranty | For more information, please consult our Product Warranty guidelines |
General specifications
| Access | Front door | Rear door |
| Alarm Type | Door alarm | HVAC alarms (including high temperature, failure) |
| Color | Light Gray (RAL 7035) |
| Cooling | Passive Cooling |
| Door Security | Hasp and staple |
| Door Type, front | Hinged | Turn latch |
| Grounding Connection | Standard |
| Mounting | H-frame | Pad | Plinth | Universal pole mount | Universal wall mount |
| Rack Type | EIA 19 in |
| Rack Units | 8 |
Dimensions
| Height | 635.000 mm | 25 in |
| Width | 609.600 mm | 24 in |
| Depth | 609.600 mm | 24 in |
Electrical specifications
| Alarm Output | Dry contacts |
| Cooling Capacity | 0 W |
Material specifications
| Finish | Powder coated | UV resistant |
| Material Type | Aluminum |
Environmental specifications
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Qualification Standards | IEC 60529, IP55 | Telcordia GR-487 |
| Safety Standard | UL |
Packaging and weights
| Weight, net | 24.948 kg | 55 lb |
