CMC74-36B

Base product

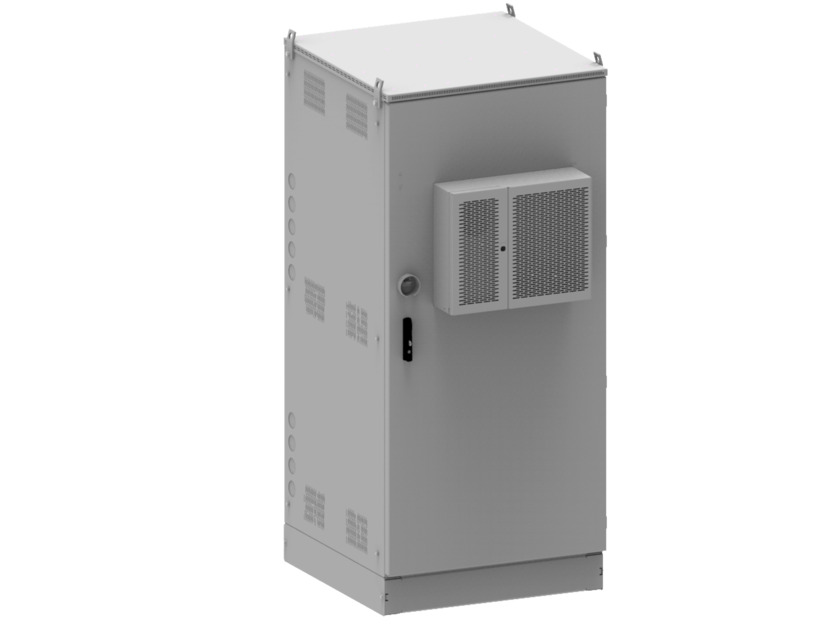

Base 74”, 4 Battery Shelf Outdoor Cabinet

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product variants

Configure and display product variants of CMC74-36B by selecting options

Product	Battery Storage	Cabinet Type	Equipment Storage	Regional Availability	Product Series	Cooling	Material Type	Height	Width	Depth
74B6-D16-A00D00-00 \| CMC74-36B CMC74-36B 1000W HVAC w/ 500W Heater Outdoor Battery Cabinet Specifications	4 battery shelves for holding up to 6 strings of -48V batteries \| 4 shelves	Battery cabinet	No equipment storage available	Latin America \| North America	CMC	1000W HVAC w/ 500W Heater \| DC Rated 1000W Air Conditioner	Aluminum	1879.600 mm \| 74 in	914.400 mm \| 36 in	939.800 mm \| 37 in
74B6-D19-A00D00-00 \| CMC74-36B CMC74-36B 1000W Heater Outdoor Battery Cabinet Specifications	4 battery shelves for holding up to 6 strings of -48V batteries \| 4 shelves	Battery cabinet	No equipment storage available	Latin America \| North America	CMC	1000W Heater \| DC Rated 1000W Air Conditioner	Aluminum	1879.600 mm \| 74 in	914.400 mm \| 36 in	939.800 mm \| 37 in
74B6-P1-A00D00-00 \| CMC74-36B CMC74-36B Passive Venting Outdoor Battery Cabinetnet Specifications	4 battery shelves for holding up to 6 strings of -48V batteries \| 4 shelves	Battery cabinet	No equipment storage available	Latin America \| North America	CMC	DC Rated 1000W Air Conditioner \| Passive venting	Aluminum	1879.600 mm \| 74 in	914.400 mm \| 36 in	939.800 mm \| 37 in

Features and benefits

This cabinet is designed to accommodate 6 strings of batteries of -48V VRLA batteries in 4 battery shelves. This cabinet provides mechanical and environmental protection for the batteries inside. Cooling of active equipment is achieved by DC rated 1000W Air Conditioner with 500W heater.

Excellent Thermal Performance to ensure the battery could be applied in the harsh environment.
Provide option for security/access control via Puck Lock system.
Provide the flexible access for the cable entrance.
Provide the flexible heater Solution for the cold ambient application.
Platform products to share many parts including plinth, solar shield, and hybrid cable storage units.
Excellent cable management system.
