GND-1M
Base product: GROUNDING-SERIES

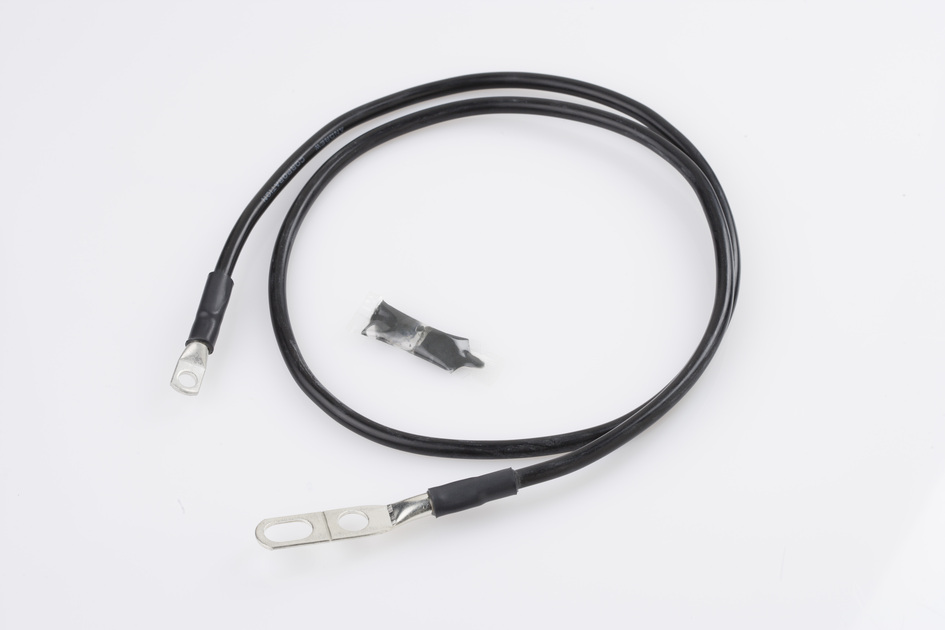

Ground Lead with Lugs, 1.08 meter
Specifications
Product classification
| Product Type | Grounding lug |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Lug Attachment | Field attached |
| Lug Type | Two-hole lug |
| Thread Size | 3/8 in | M10 | M8 |
Dimensions
| Width | 15.24 mm | 0.6 mm |
| Length | 1080.008 mm | 42.52 mm |
Packaging and weights
| Height, packed | 129.54 mm | 5.1 in |
| Width, packed | 119.38 mm | 4.7 in |
| Length, packed | 119.38 mm | 4.7 in |
| Included | Lug |
| Packaging quantity | 1 |
| Weight, gross | 0.25 kg | 0.551 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Grounding lug |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Lug Attachment | Field attached |
| Lug Type | Two-hole lug |
| Thread Size | 3/8 in | M10 | M8 |
Dimensions
| Width | 15.24 mm | 0.6 mm |
| Length | 1080.008 mm | 42.52 mm |
Packaging and weights
| Height, packed | 129.54 mm | 5.1 in |
| Width, packed | 119.38 mm | 4.7 in |
| Length, packed | 119.38 mm | 4.7 in |
| Included | Lug |
| Packaging quantity | 1 |
| Weight, gross | 0.25 kg | 0.551 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
