1180DZ

Base product: WAVEGUIDE-SPLICES

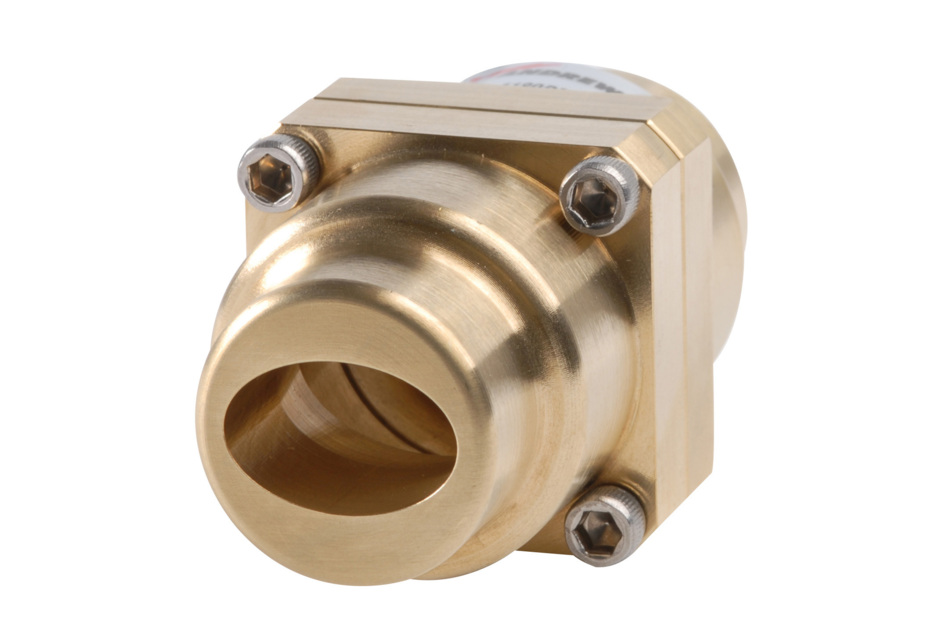

Splice for elliptical waveguide 180

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Elliptical waveguide connector

General specifications

Attachment Method Tab-flare | Tool-flare
Body Style Splice
Inner Contact Plating Unplated
Interface Splice
Outer Contact Plating Unplated
Pressurizable Yes

Dimensions

Width 38.1 mm | 1.5 in
Length 74.676 mm | 2.94 in

Electrical specifications

Insertion Loss, typical 0.01 dB
Operating Frequency Band 17.7 – 19.7 GHz

Material specifications

Material Type Brass

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)

Packaging and weights

Weight, net 0.4 kg | 0.882 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Elliptical waveguide connector

General specifications

Attachment Method Tab-flare | Tool-flare
Body Style Splice
Inner Contact Plating Unplated
Interface Splice
Outer Contact Plating Unplated
Pressurizable Yes

Dimensions

Width 38.1 mm | 1.5 in
Length 74.676 mm | 2.94 in

Electrical specifications

Insertion Loss, typical 0.01 dB
Operating Frequency Band 17.7 – 19.7 GHz

Material specifications

Material Type Brass

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)

Packaging and weights

Weight, net 0.4 kg | 0.882 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
