SHPX2-23-3WH/B
Base product: SHPX2-23/B

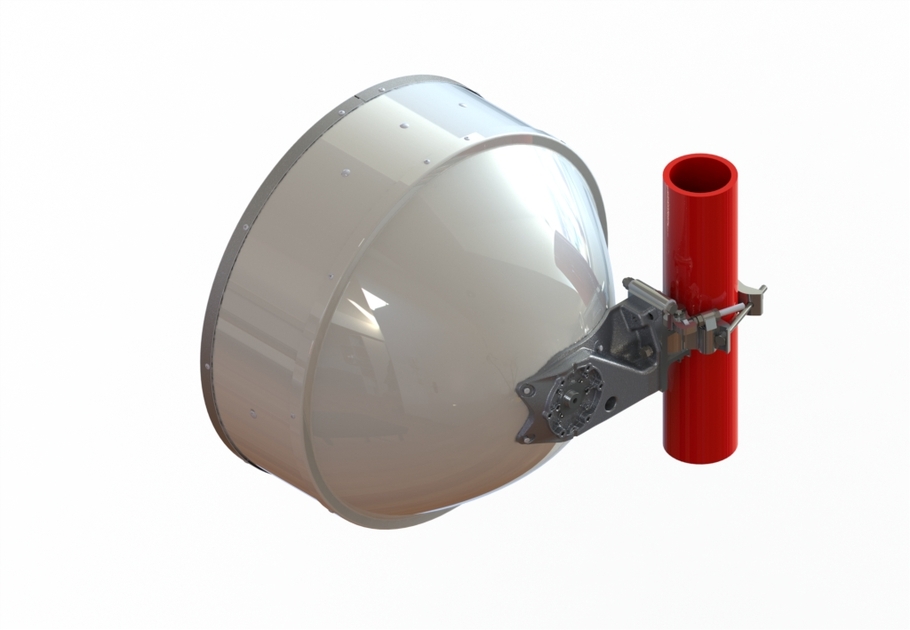

0.6 m | 2 ft Sentinel® High Performance Antenna, dual-polarized, 21.2–23.6 GHz, UBR flange, white antenna, grey radome
Specifications
Product classification
| Product Type | Microwave antenna |
| Product Brand | Sentinel® |
General specifications
| Antenna Type | SHPX - Sentinel® High Performance Antenna, dual-polarized |
| Polarization | Dual |
| Antenna Input | UBR220 |
| Antenna Color | White |
| Reflector Construction | One-piece reflector |
| Radome Color | Gray |
| Radome Material | Polymer |
| Flash Included | No |
| Side Struts, Included | 0 |
| Side Struts, Optional | 0 |
Dimensions
| Diameter, nominal | 0.6 m | 2 ft |
Electrical specifications
| Operating Frequency Band | 21.200 – 23.600 GHz |
| Gain, Low Band | 40 dBi |
| Gain, Mid Band | 40.5 dBi |
| Gain, Top Band | 41 dBi |
| Boresite Cross Polarization Discrimination (XPD) | 30 dB |
| Front-to-Back Ratio | 71 dB |
| Beamwidth, Horizontal | 1.7 ° |
| Beamwidth, Vertical | 1.7 ° |
| Return Loss | 17.7 dB |
| VSWR | 1.3 |
| Radiation Pattern Envelope Reference (RPE) | 7258B |
| Electrical Compliance | Brazil Anatel Class 2 | Canada SRSP 321.8 Part B | ETSI 302 217 Class 4 | US FCC Part 101A |
| Cross Polarization Discrimination (XPD) Electrical Compliance | ETSI EN 302217 XPD Category 2 |
Mechanical specifications
| Compatible Mounting Pipe Diameter | 50 mm–115 mm | 2.0 in–4.5 in |
| Fine Azimuth Adjustment Range | ±15° |
| Fine Elevation Adjustment Range | ±15° |
| Wind Speed, operational | 180 km/h | 111.847 mph |
| Wind Speed, survival | 250 km/h | 155.343 mph |
Antenna dimensions and mounting information
| Click on image to enlarge. |
Wind forces at wind velocity survival rating
| Axial Force (FA) | 1290 N | 290.004 lbf |
| Angle α for MT Max | 0 ° |
| Side Force (FS) | 639 N | 143.653 lbf |
| Twisting Moment (MT) | 395 N-m | 3496.045 in lb |
| Zcg without Ice | 187 mm | 7.362 in |
| Zcg with 1/2 in (12 mm) Radial Ice | 185 mm | 7.283 in |
| Weight with 1/2 in (12 mm) Radial Ice | 34 kg | 74.957 lb |
Wind forces at wind velocity survival rating image
| Click on image to enlarge. |
Packaging and weights
| Height, packed | 580 mm | 22.835 in |
| Width, packed | 735 mm | 28.937 in |
| Length, packed | 735 mm | 28.937 in |
| Packaging Type | Standard pack |
| Volume | 0 m³ | 0 ft³ |
| Weight, gross | 16 kg | 35.274 lb |
| Weight, net | 11 kg | 24.251 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Microwave antenna |
| Product Brand | Sentinel® |
General specifications
| Antenna Type | SHPX - Sentinel® High Performance Antenna, dual-polarized |
| Polarization | Dual |
| Antenna Input | UBR220 |
| Antenna Color | White |
| Reflector Construction | One-piece reflector |
| Radome Color | Gray |
| Radome Material | Polymer |
| Flash Included | No |
| Side Struts, Included | 0 |
| Side Struts, Optional | 0 |
Dimensions
| Diameter, nominal | 0.6 m | 2 ft |
Electrical specifications
| Operating Frequency Band | 21.200 – 23.600 GHz |
| Gain, Low Band | 40 dBi |
| Gain, Mid Band | 40.5 dBi |
| Gain, Top Band | 41 dBi |
| Boresite Cross Polarization Discrimination (XPD) | 30 dB |
| Front-to-Back Ratio | 71 dB |
| Beamwidth, Horizontal | 1.7 ° |
| Beamwidth, Vertical | 1.7 ° |
| Return Loss | 17.7 dB |
| VSWR | 1.3 |
| Radiation Pattern Envelope Reference (RPE) | 7258B |
| Electrical Compliance | Brazil Anatel Class 2 | Canada SRSP 321.8 Part B | ETSI 302 217 Class 4 | US FCC Part 101A |
| Cross Polarization Discrimination (XPD) Electrical Compliance | ETSI EN 302217 XPD Category 2 |
Mechanical specifications
| Compatible Mounting Pipe Diameter | 50 mm–115 mm | 2.0 in–4.5 in |
| Fine Azimuth Adjustment Range | ±15° |
| Fine Elevation Adjustment Range | ±15° |
| Wind Speed, operational | 180 km/h | 111.847 mph |
| Wind Speed, survival | 250 km/h | 155.343 mph |
Wind forces at wind velocity survival rating
| Axial Force (FA) | 1290 N | 290.004 lbf |
| Angle α for MT Max | 0 ° |
| Side Force (FS) | 639 N | 143.653 lbf |
| Twisting Moment (MT) | 395 N-m | 3496.045 in lb |
| Zcg without Ice | 187 mm | 7.362 in |
| Zcg with 1/2 in (12 mm) Radial Ice | 185 mm | 7.283 in |
| Weight with 1/2 in (12 mm) Radial Ice | 34 kg | 74.957 lb |
Packaging and weights
| Height, packed | 580 mm | 22.835 in |
| Width, packed | 735 mm | 28.937 in |
| Length, packed | 735 mm | 28.937 in |
| Packaging Type | Standard pack |
| Volume | 0 m³ | 0 ft³ |
| Weight, gross | 16 kg | 35.274 lb |
| Weight, net | 11 kg | 24.251 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
