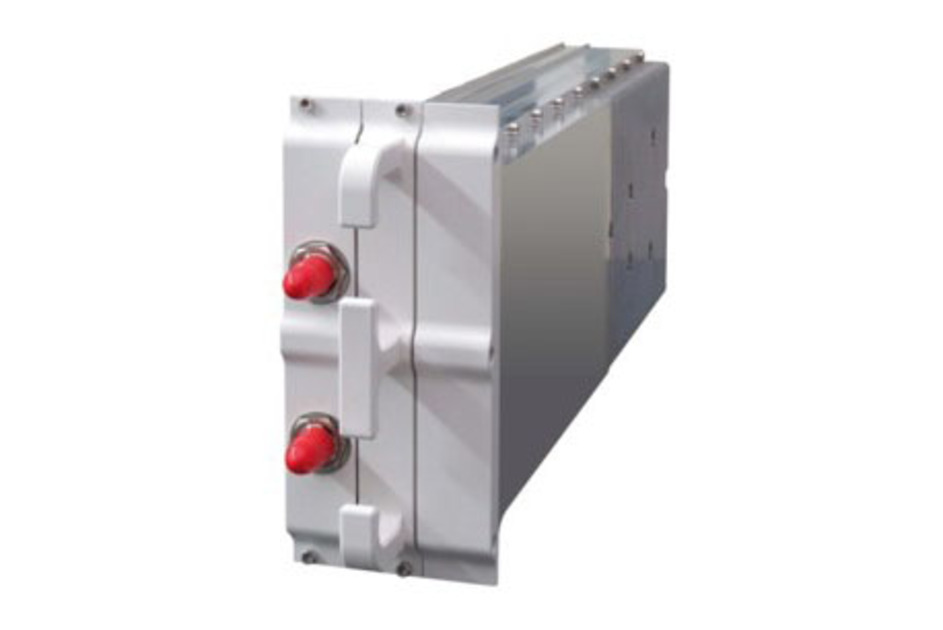

Node A+/ Node AM Digital Channel Module (DCM) dual band medium power for LTE 800, EGSM 900, UMTS 900, and LTE 900; 5G ready
Specifications
Product classification
| Regional Availability | EMEA |
| Product Type | RF repeater unit |
| Warranty | For more information, please consult our Product Warranty guidelines |
General specifications
| Performance Note | Values typical, unless otherwise stated |
Electrical specifications
| Electrical Safety Standard | IEC/EN 62368-1 |
| Gain, typical | 70 dB (Band 1) + 70 dB (Band 2) |
| Gain Adjustment Range | 30 dB |
| License Band | LTE 800 (Band 1) + GSM 900 / UMTS 900 / LTE 900 (Band 2) |
| Power Consumption | 110 W |
| Electrical Compliance | EN 301 908-15 (Band 1) + EN 303 609 / EN 301 908-11 / EN 301 908-15 (Band 2) |
Electrical specifications, rx (uplink)
| Operating Frequency Band | 832 – 862 MHz (Band 1) + 880 to 915 MHz (Band 2) |
| Output Power @ One Carrier | 27 dBm LTE (Band 1) + 24 dBm GSM / 27 dBm UMTS-LTE |
Electrical specifications, tx (downlink)
| Operating Frequency Band | 791 – 821 MHz (Band 1) + 925 – 960 MHz (Band 2) |
| Output Power @ One Carrier | 25 dBm LTE (Band 1) + 22 dBm GSM / 25 dBm UMTS-LTE (Band 2) |
Environmental specifications
| Operating Temperature | -33 °C to +50 °C (-27.4 °F to +122 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Weight, net | 6 kg | 13.228 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
