T-10-UW-43-M-I6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

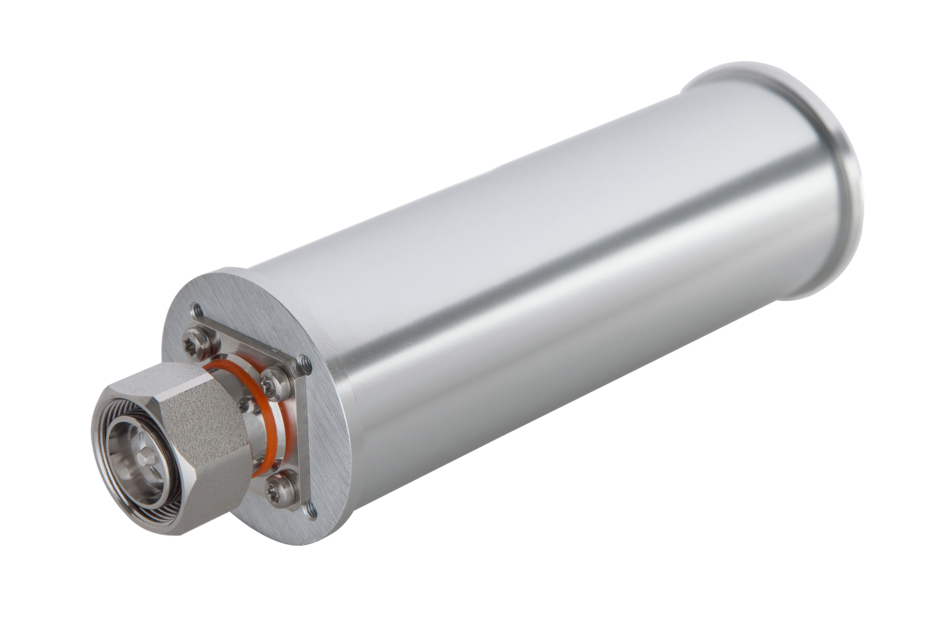

Low PIM Termination 10 W Load, 340-6000 MHz
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Termination Load |
General specifications
| Device Type | Termination Load |
| Application | Indoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 145 mm | 5.709 in |
| Diameter, maximum | 44 mm | 1.732 in |
Electrical specifications
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +40 dBm carriers |
| Average Power, maximum | 10 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 340 – 6000 MHz |
| VSWR at Frequency Band | 1.2:1 @ 555–2700 MHz | 1.3:1 @ 2700–6000 MHz | 1.4 @ 340–555 MHz |
Environmental specifications
| Operating Temperature | -25 °C to +50 °C (-13 °F to +122 °F) |
| Relative Humidity | Up to 100% |
Packaging and weights
| Height, packed | 65 mm | 2.559 in |
| Width, packed | 85 mm | 3.346 in |
| Length, packed | 200 mm | 7.874 in |
| Weight, gross | 0.6 kg | 1.323 lb |
| Weight, net | 0.52 kg | 1.146 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Termination Load |
General specifications
| Device Type | Termination Load |
| Application | Indoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 145 mm | 5.709 in |
| Diameter, maximum | 44 mm | 1.732 in |
Electrical specifications
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +40 dBm carriers |
| Average Power, maximum | 10 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 340 – 6000 MHz |
| VSWR at Frequency Band | 1.2:1 @ 555–2700 MHz | 1.3:1 @ 2700–6000 MHz | 1.4 @ 340–555 MHz |
Environmental specifications
| Operating Temperature | -25 °C to +50 °C (-13 °F to +122 °F) |
| Relative Humidity | Up to 100% |
Packaging and weights
| Height, packed | 65 mm | 2.559 in |
| Width, packed | 85 mm | 3.346 in |
| Length, packed | 200 mm | 7.874 in |
| Weight, gross | 0.6 kg | 1.323 lb |
| Weight, net | 0.52 kg | 1.146 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
