VD-C30-CPUSEW-43B
- Available in:
- Asia
- EMEA
- Latin America

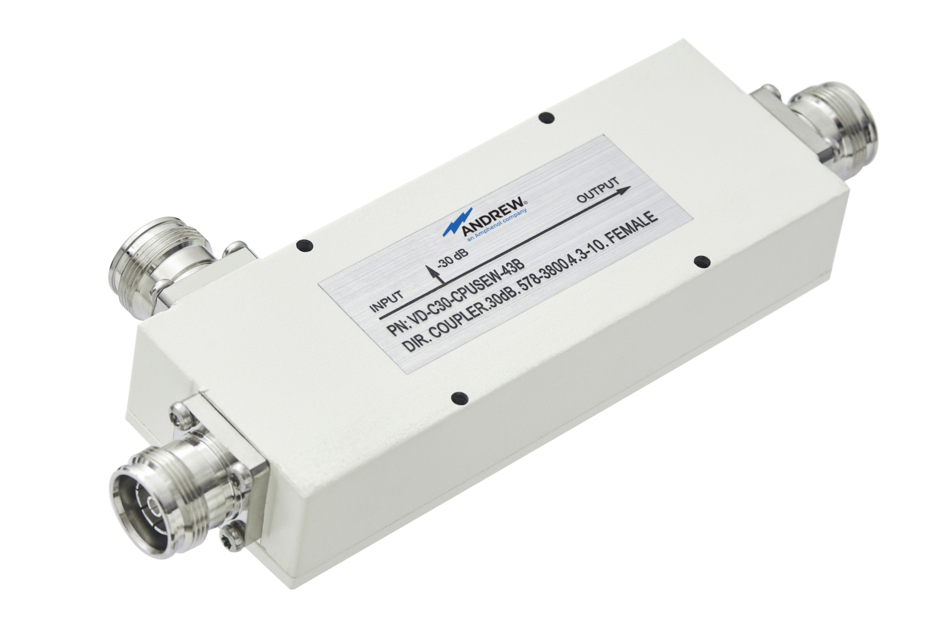

ValuDAS™, 30 dB, Air Directional Coupler, 578–3800 MHz, 4.3-10
Specifications
Product classification
| Regional Availability | Asia | EMEA | Latin America |
| Product Type | Directional coupler |
| Product Brand | ValuDAS® |
| Ordering Note | Available in Central and Latin America, Europe, Middle East, Africa, and Asia Pacific |
General specifications
| Device Type | Coupler |
| Application | Indoor |
| Color | White (RAL 9010) |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 26 mm | 1.024 in |
| Width | 70 mm | 2.756 in |
| Length | 176 mm | 6.929 in |
Electrical specifications
| 3rd Order IMD | -160 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss | 0.2 dB |
| Average Power, maximum | 200 W |
| Coupling | 30 dB |
| Coupling Tolerance | ±1.2dB @ 698–3800 MHz | ±1.5dB @ 575–698 MHz |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 50 dB @ 575–3800 MHz |
| Operating Frequency Band | 578 – 3800 MHz |
| Peak Power, maximum | 2 kW |
| Reflected Power, maximum | 200 W |
| VSWR | 1.25 |
| Electrical Note | Values typical, unless otherwise stated |
Environmental specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Height, packed | 38 mm | 1.496 in |
| Width, packed | 88 mm | 3.465 in |
| Length, packed | 188 mm | 7.402 in |
| Weight, gross | 0.49 kg | 1.080 lb |
| Weight, net | 0.44 kg | 0.970 lb |
