C-6-TCPUSEW-N-AI6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

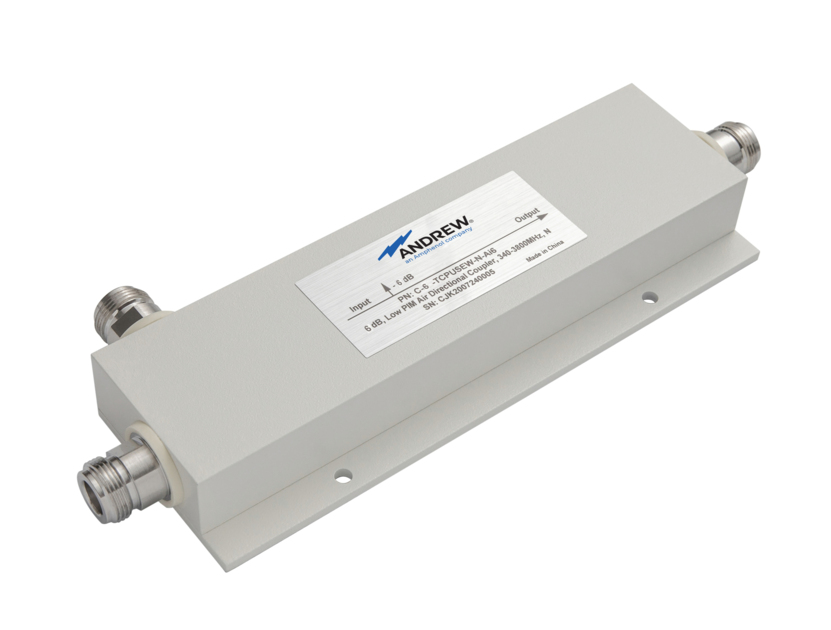

6 dB, Air Directional Coupler, 340-3800 MHz
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Directional coupler |
General specifications
| Device Type | Coupler |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 23 mm | 0.906 in |
| Width | 74.6 mm | 2.937 in |
| Length | 209.5 mm | 8.248 in |
Electrical specifications
| 3rd Order IMD | -163 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 1.85 dB @ 340–3800 MHz |
| Average Power, maximum | 200 W |
| Coupling | 6 dB |
| Coupling Tolerance | ±1.2dB |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 22 dB @ 2700–3800 MHz | 26 dB @ 340–2700 MHz |
| Operating Frequency Band | 340 – 3800 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 40 W |
| VSWR at Frequency Band | 1.2:1 @ 340–2700 MHz | 1.3:1 @ 2700–3800 MHz |
Mechanical specifications
| Coupling Nut Proof Torque | 4.5 N-m | 39.828 in lb |
Environmental specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 77 mm | 3.031 in |
| Width, packed | 42 mm | 1.654 in |
| Length, packed | 258 mm | 10.157 in |
| Weight, gross | 0.604 kg | 1.332 lb |
| Weight, net | 0.53 kg | 1.168 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Directional coupler |
General specifications
| Device Type | Coupler |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 23 mm | 0.906 in |
| Width | 74.6 mm | 2.937 in |
| Length | 209.5 mm | 8.248 in |
Electrical specifications
| 3rd Order IMD | -163 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 1.85 dB @ 340–3800 MHz |
| Average Power, maximum | 200 W |
| Coupling | 6 dB |
| Coupling Tolerance | ±1.2dB |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 22 dB @ 2700–3800 MHz | 26 dB @ 340–2700 MHz |
| Operating Frequency Band | 340 – 3800 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 40 W |
| VSWR at Frequency Band | 1.2:1 @ 340–2700 MHz | 1.3:1 @ 2700–3800 MHz |
Mechanical specifications
| Coupling Nut Proof Torque | 4.5 N-m | 39.828 in lb |
Environmental specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 77 mm | 3.031 in |
| Width, packed | 42 mm | 1.654 in |
| Length, packed | 258 mm | 10.157 in |
| Weight, gross | 0.604 kg | 1.332 lb |
| Weight, net | 0.53 kg | 1.168 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
