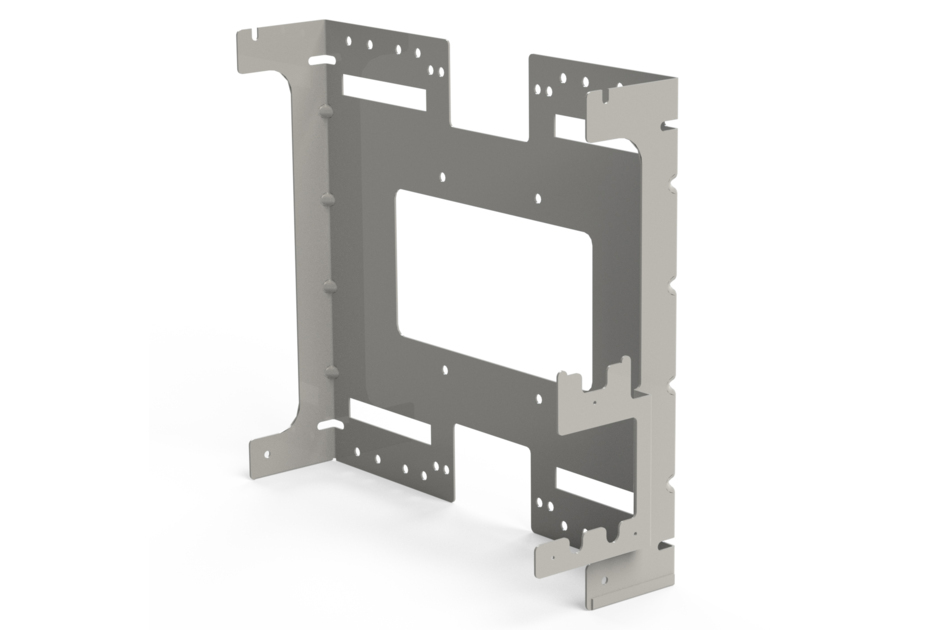

7847985-00 | Mounting Bracket Single CAP MX
CAP MX Mounting Bracket Single to mount one CAP MX to a wall
Specifications
Product classification
| Product Type | Mounting kit |
| Product Brand | ERA® |
Dimensions
| Height | 431 mm | 16.969 in |
| Width | 480.2 mm | 18.906 in |
| Depth | 102 mm | 4.016 in |

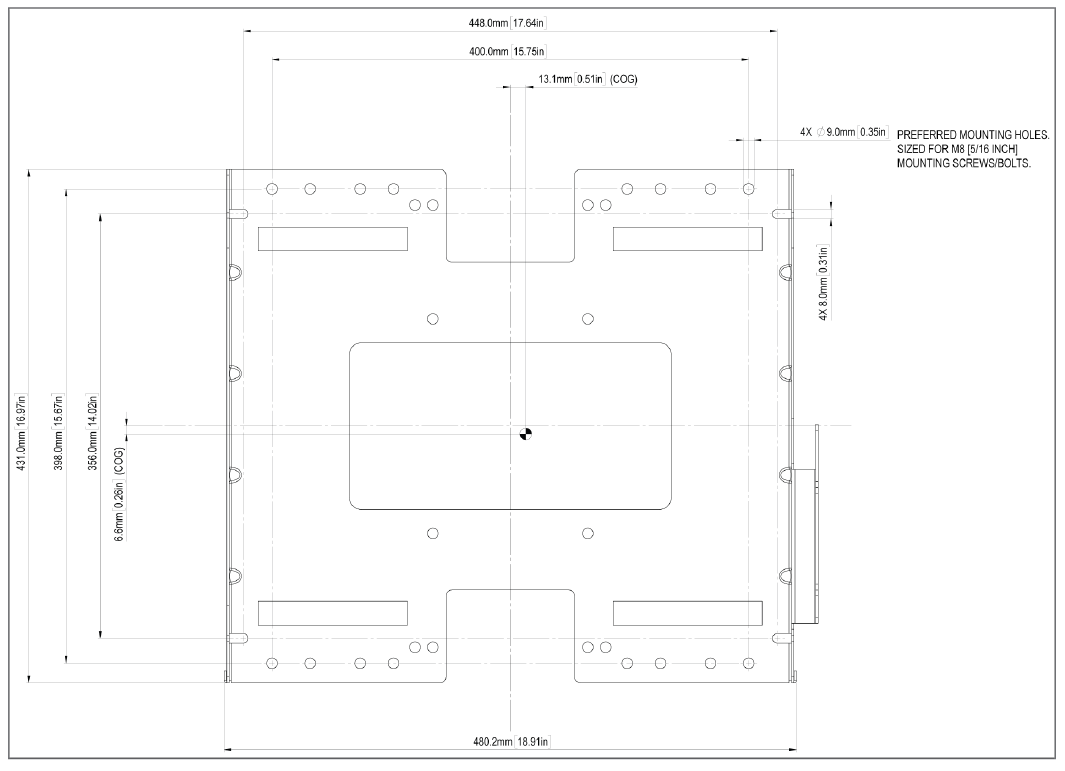

Outline drawing–front
| Click on image to enlarge. |

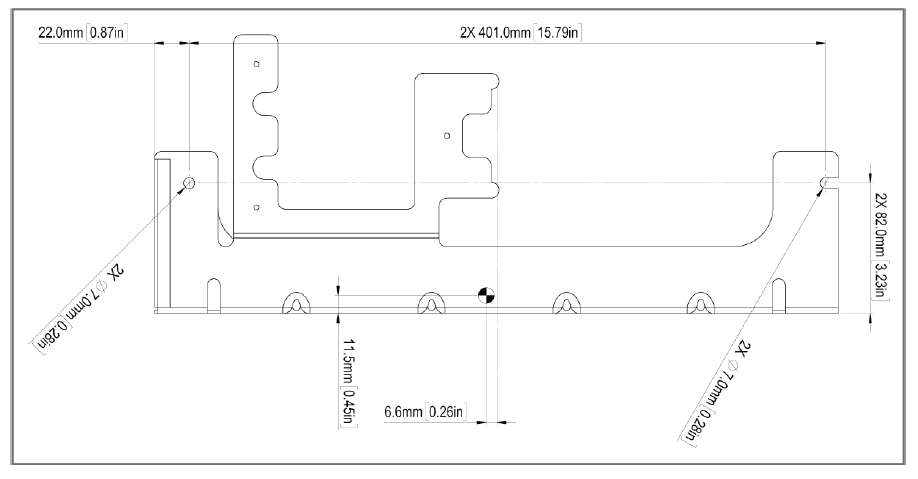

Outline drawing–side
| Click on image to enlarge. |
Product classification
| Product Type | Mounting kit |
| Product Brand | ERA® |
Dimensions
| Height | 431 mm | 16.969 in |
| Width | 480.2 mm | 18.906 in |
| Depth | 102 mm | 4.016 in |
| Click on image to enlarge. |
| Click on image to enlarge. |
