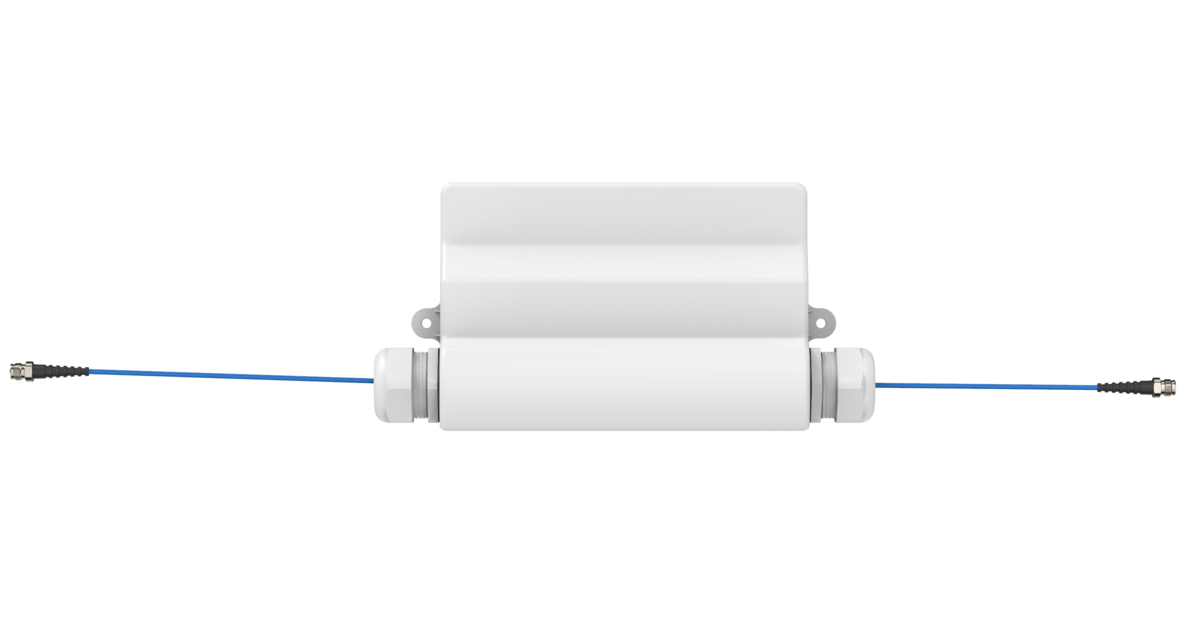

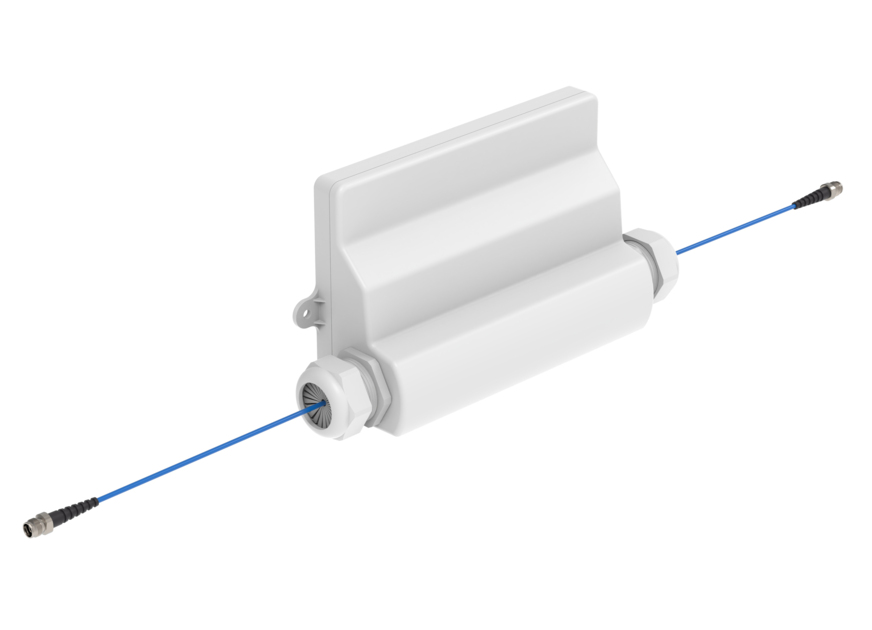

CMAX-OMUW-225-I53-O
Base product: DIRECTIONAL-ANTENNAS
Low PIM Directional High Capacity Venue Under the Seat Outdoor Antenna (2x2 MIMO), 617-806, 890-960, 1695–2700, 3300-4200 MHz, 5150-5925 MHz
Specifications
Product classification
| Product Type | Under-the-seat stadium antenna |
General specifications
| Application | Outdoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 2x2 |
| Polarization | ±45° |
| Color | Light Gray (RAL 7035) |
| Mounting Note | Stated dimensions do not include conduit fittings |
| Number of Ports | 2 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ASA+PC, UV stabilized |
| RF Connector Interface | 2.2-5 Female |
Dimensions
| Height | 203 mm | 7.992 in |
| Depth | 66 mm | 2.598 in |
| Length | 300 mm | 11.811 in |
| Length Note | The pigtails are 400 and 500 mm in length |
Electrical specifications
| Impedance | 50 ohm |
| Lightning Protection | dc Ground |
| Operating Frequency Band | 617 – 806 MHz | 890 – 960 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz | 5150 – 5925 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 617–806 | 890–960 | 1695–2700 | 3300–4200 | 5150–5925 |
| Gain, dBi | 4.7 | 4.5 | 4.1 | 5.6 | 4.3 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 |
| Isolation, Inter-band, dB | 12 | 20 | 20 | 20 | 25 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 20 | 20 | 20 | 20 | 20 |
Return loss/vswr
| Frequency band | Vswr, maximum | Return loss, maximum (db) | Vswr, mean | Return loss, mean (db) |
| 617–960 MHz | 1.703 | 11.70 | 1.5 | 13.98 |
| 1695–2700 MHz | 1.703 | 11.70 | 1.5 | 13.98 |
| 3300–4200 MHz | 1.703 | 11.70 | 1.5 | 13.98 |
| 5150–5925 MHz | 1.703 | 11.70 | 1.5 | 13.98 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP66 |
| Vibration Test Method | ASTM D4169 | IEC 60068-2-6 |
Packaging and weights
| Packaging quantity | 1 |
| Weight, gross | 1.5 kg | 3.307 lb |
| Weight, net | 1.2 kg | 2.646 lb |
Product classification
| Product Type | Under-the-seat stadium antenna |
General specifications
| Application | Outdoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 2x2 |
| Polarization | ±45° |
| Color | Light Gray (RAL 7035) |
| Mounting Note | Stated dimensions do not include conduit fittings |
| Number of Ports | 2 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ASA+PC, UV stabilized |
| RF Connector Interface | 2.2-5 Female |
Dimensions
| Height | 203 mm | 7.992 in |
| Depth | 66 mm | 2.598 in |
| Length | 300 mm | 11.811 in |
| Length Note | The pigtails are 400 and 500 mm in length |
Electrical specifications
| Impedance | 50 ohm |
| Lightning Protection | dc Ground |
| Operating Frequency Band | 617 – 806 MHz | 890 – 960 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz | 5150 – 5925 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 617–806 | 890–960 | 1695–2700 | 3300–4200 | 5150–5925 |
| Gain, dBi | 4.7 | 4.5 | 4.1 | 5.6 | 4.3 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 |
| Isolation, Inter-band, dB | 12 | 20 | 20 | 20 | 25 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 20 | 20 | 20 | 20 | 20 |
Return loss/vswr
| Frequency Band | VSWR, Maximum | Return Loss, Maximum (dB) | VSWR, Mean | Return Loss, Mean (dB) |
| 617–960 MHz | 1.703 | 11.70 | 1.5 | 13.98 |
| 1695–2700 MHz | 1.703 | 11.70 | 1.5 | 13.98 |
| 3300–4200 MHz | 1.703 | 11.70 | 1.5 | 13.98 |
| 5150–5925 MHz | 1.703 | 11.70 | 1.5 | 13.98 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP66 |
| Vibration Test Method | ASTM D4169 | IEC 60068-2-6 |
Packaging and weights
| Packaging quantity | 1 |
| Weight, gross | 1.5 kg | 3.307 lb |
| Weight, net | 1.2 kg | 2.646 lb |
