JM-CAPKIT
Base product: SURGE-ARRESTOR-ACCESSORIES
2.2-5 Male End Cap Assembly
Specifications
Product classification
| Product Type | Surge arrestor accessory |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Interface | 2.2-5 Male |
Dimensions
| Height | 13.96 mm | 0.550 in |
| Width | 13.96 mm | 0.550 in |
| Length | 22.5 mm | 0.886 in |

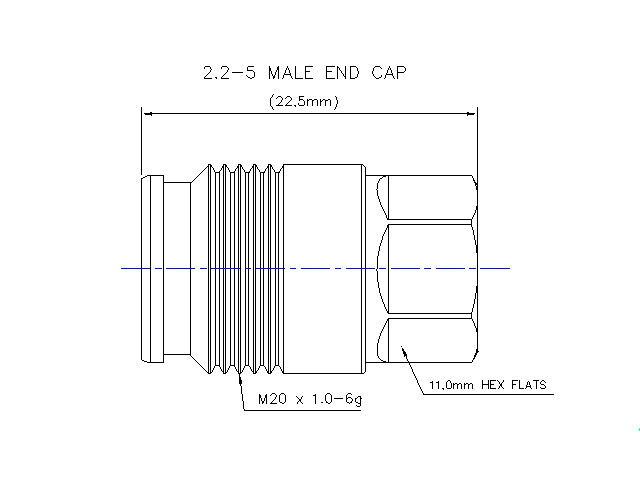

Outline drawing
| Click on image to enlarge. |
Material specifications
| Finish | Trimetal |
| Material Type | Brass |
Mechanical specifications
| Coupling Nut Proof Torque | 4 N-m | 35.403 in lb |
| Interface Durability | 50 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 18.36 g | 0.040 lb |
Regulatory compliance/certifications
| Agency | Classification |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Surge arrestor accessory |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Interface | 2.2-5 Male |
Dimensions
| Height | 13.96 mm | 0.550 in |
| Width | 13.96 mm | 0.550 in |
| Length | 22.5 mm | 0.886 in |
Material specifications
| Finish | Trimetal |
| Material Type | Brass |
Mechanical specifications
| Coupling Nut Proof Torque | 4 N-m | 35.403 in lb |
| Interface Durability | 50 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 18.36 g | 0.040 lb |

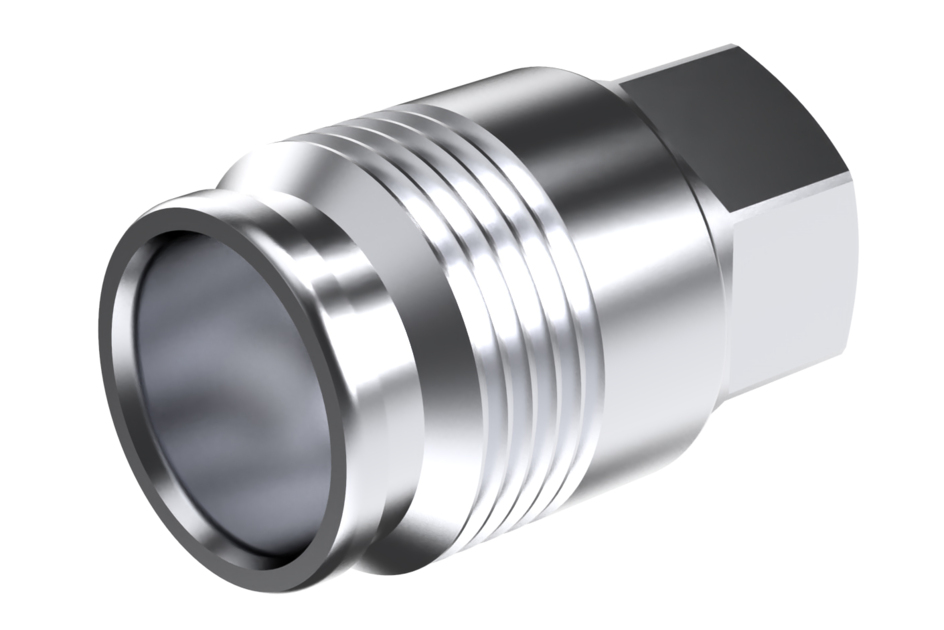

| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
