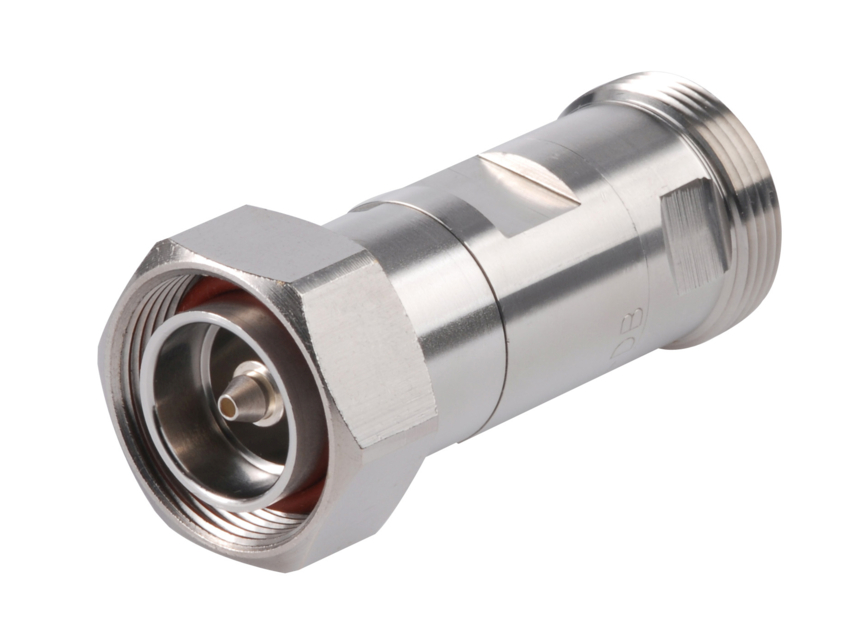

ADCB-DFDM-DB
Dual Band dc Block, 650–2700 MHz, with interface types DIN Female and DIN Male
Specifications
Product classification
| Product Type | dc Block |
| Ordering Note | ANDREW® standard product in Mexico, Central America, and South America | ANDREW® standard product in the United States and Canada |
General specifications
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Interface 2 | 7-16 DIN Male |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 36.07 mm | 1.42 in |
| Width | 36.07 mm | 1.42 in |
| Length | 72.9 mm | 2.87 in |

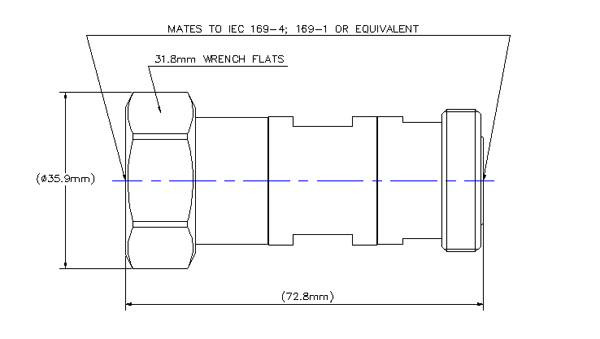

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD | -116 dBm |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.1 dB |
| Average Power at Frequency | 250.0 W @ 1,940 MHz | 500.0 W @ 883 MHz |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 48 V |
| Injector Port to Antenna Isolation, minimum | -70 dB |
| Operating Frequency Band | 650 – 2700 MHz |
| Peak Power, maximum | 13 kg/mm |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 650–2700 MHz | 1.130 | 24.29 |
Mechanical specifications
| Attachment Durability | 25 cycles |
| Coupling Nut Proof Torque | 24.86 N-m | 220.03 in lb |
| Coupling Nut Retention Force | 1000.85 N | 225 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G |
| Vibration Test Method | MIL-STD-202F, Method 204D, Test Condition B |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and weights
| Weight, net | 0.209 kg | 0.46 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | dc Block |
| Ordering Note | ANDREW® standard product in Mexico, Central America, and South America | ANDREW® standard product in the United States and Canada |
General specifications
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Interface 2 | 7-16 DIN Male |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 36.07 mm | 1.42 in |
| Width | 36.07 mm | 1.42 in |
| Length | 72.9 mm | 2.87 in |
Electrical specifications
| 3rd Order IMD | -116 dBm |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.1 dB |
| Average Power at Frequency | 250.0 W @ 1,940 MHz | 500.0 W @ 883 MHz |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 48 V |
| Injector Port to Antenna Isolation, minimum | -70 dB |
| Operating Frequency Band | 650 – 2700 MHz |
| Peak Power, maximum | 13 kg/mm |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 650–2700 MHz | 1.130 | 24.29 |
Mechanical specifications
| Attachment Durability | 25 cycles |
| Coupling Nut Proof Torque | 24.86 N-m | 220.03 in lb |
| Coupling Nut Retention Force | 1000.85 N | 225 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G |
| Vibration Test Method | MIL-STD-202F, Method 204D, Test Condition B |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and weights
| Weight, net | 0.209 kg | 0.46 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
