L4A-BDFDR-6-P
Base product: L4A-BDFDR-P

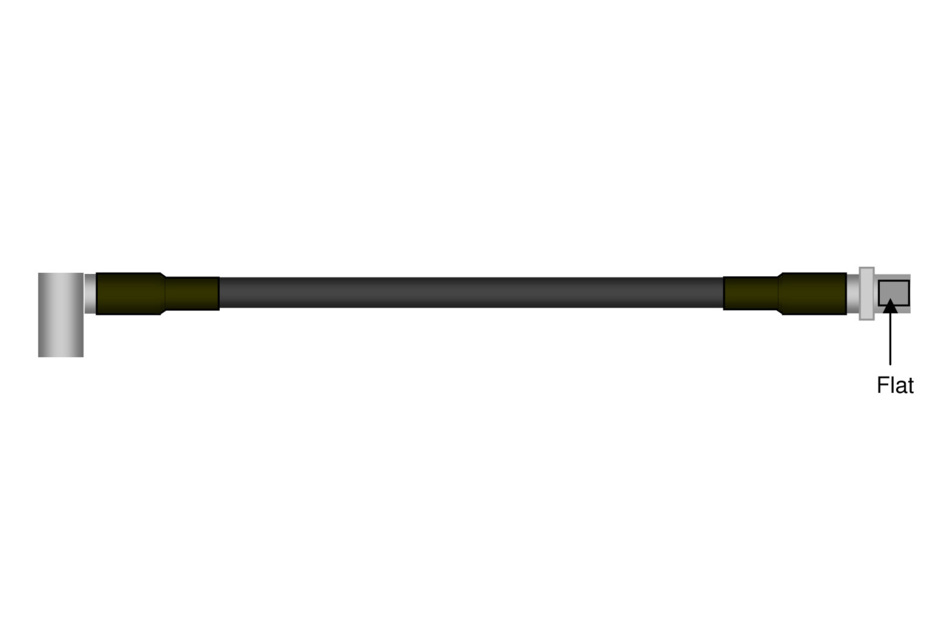

LDF4-50A SureFlex® Jumper with interface types 7-16 DIN Female Bulkhead and 7-16 DIN Male Right Angle , 6FT
Specifications
Product classification
| Product Type | SureFlex® Premium, static PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | LDF4-50A |
General specifications
| Body Style, Connector A | Bulkhead |
| Body Style, Connector B | Right angle |
| Interface, Connector A | 7-16 DIN Female |
| Interface, Connector B | 7-16 DIN Male |
| Specification Sheet Revision Level | B |
Dimensions
| Length | 1.829 m | 6.001 ft |
| Cable Length Unit | Feet |
| Nominal Size | 1/2 in |
Electrical specifications
| 3rd Order IMD Static | -116 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -30 dB |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 698–960 MHz | 1.083 | 28.00 |
| 1700–2200 MHz | 1.083 | 28.00 |
| 2200–2700 MHz | 1.135 | 23.98 |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | SureFlex® Premium, static PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | LDF4-50A |
General specifications
| Body Style, Connector A | Bulkhead |
| Body Style, Connector B | Right angle |
| Interface, Connector A | 7-16 DIN Female |
| Interface, Connector B | 7-16 DIN Male |
| Specification Sheet Revision Level | B |
Dimensions
| Length | 1.829 m | 6.001 ft |
| Cable Length Unit | Feet |
| Nominal Size | 1/2 in |
Electrical specifications
| 3rd Order IMD Static | -116 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -30 dB |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 698–960 MHz | 1.083 | 28.00 |
| 1700–2200 MHz | 1.083 | 28.00 |
| 2200–2700 MHz | 1.135 | 23.98 |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
