C141-KFKF-M35

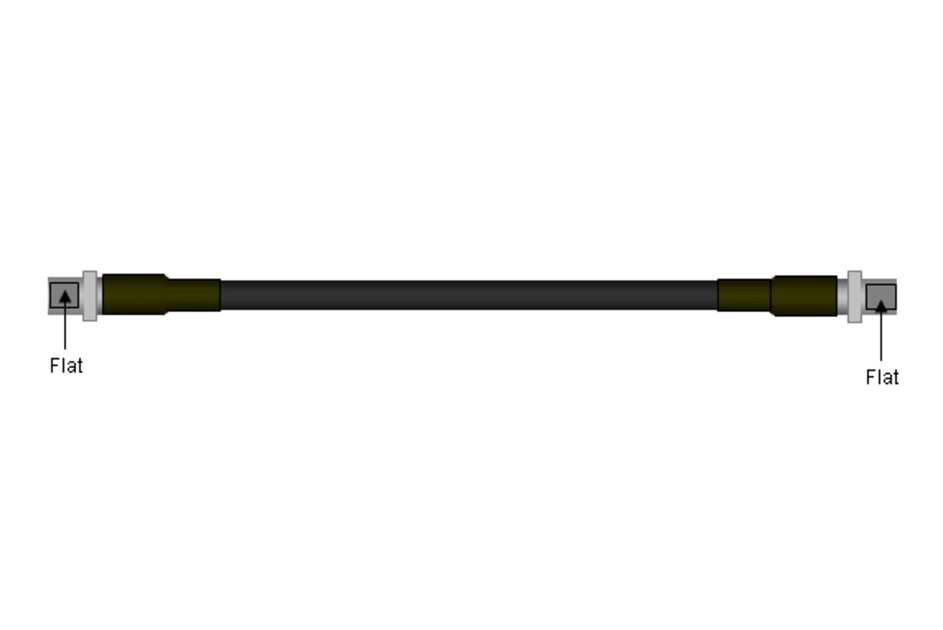

CF141 Jumper with interface types 4.1/9.5 PM Female and 4.1/9.5 PM Female, 0.35 m
Specifications
Product classification
| Product Type | Braided cable assembly |
| Product Series | CF141-50 |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Cable Family | CF141-50 |
| Interface, Connector A | 4.3-10 Female |
| Interface, Connector B | 4.3-10 Female |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 0.35 m | 1.148 ft |
| Nominal Size | 0.141 in |
Electrical specifications
| 3rd Order IMD | -112 dBm |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 700–3000 MHz | 1.119 | 25.01 |
Jumper assembly sample label
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Braided cable assembly |
| Product Series | CF141-50 |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Cable Family | CF141-50 |
| Interface, Connector A | 4.3-10 Female |
| Interface, Connector B | 4.3-10 Female |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 0.35 m | 1.148 ft |
| Nominal Size | 0.141 in |
Electrical specifications
| 3rd Order IMD | -112 dBm |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 700–3000 MHz | 1.119 | 25.01 |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
