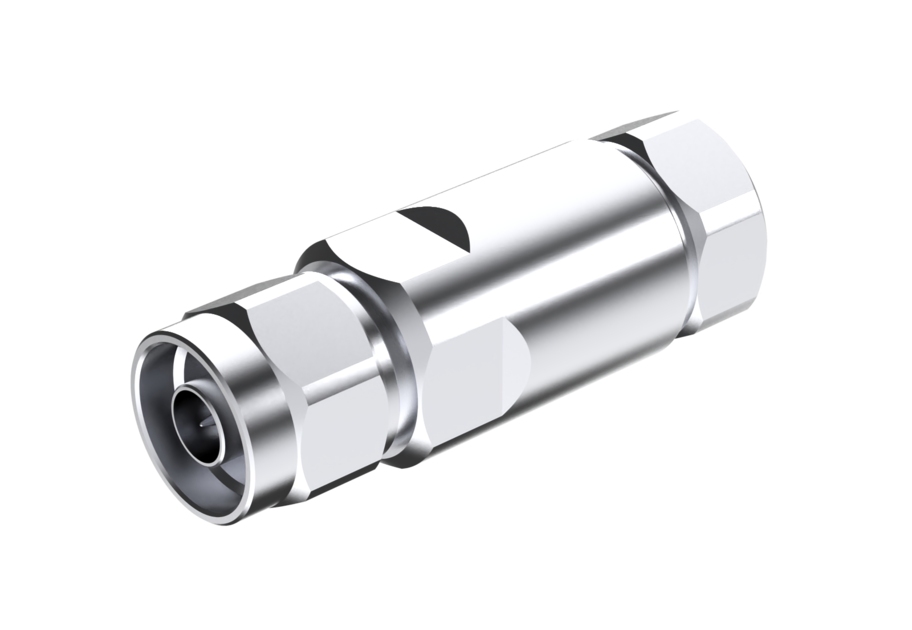

L4NM-F

N Male for 1/2 in LDF4-50A cable

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series LDF4-50A
Ordering Note ANDREW® standard product (Global)

General specifications

Body Style Straight
Cable Family LDF4-50A
Inner Contact Attachment Method Captivated
Inner Contact Plating Silver
Interface N Male
Mounting Angle Straight
Outer Contact Attachment Method Clamp
Outer Contact Plating Trimetal

Dimensions

Length 62.8 mm | 2.472 in
Diameter 23 mm | 0.906 in
Nominal Size 1/2 in

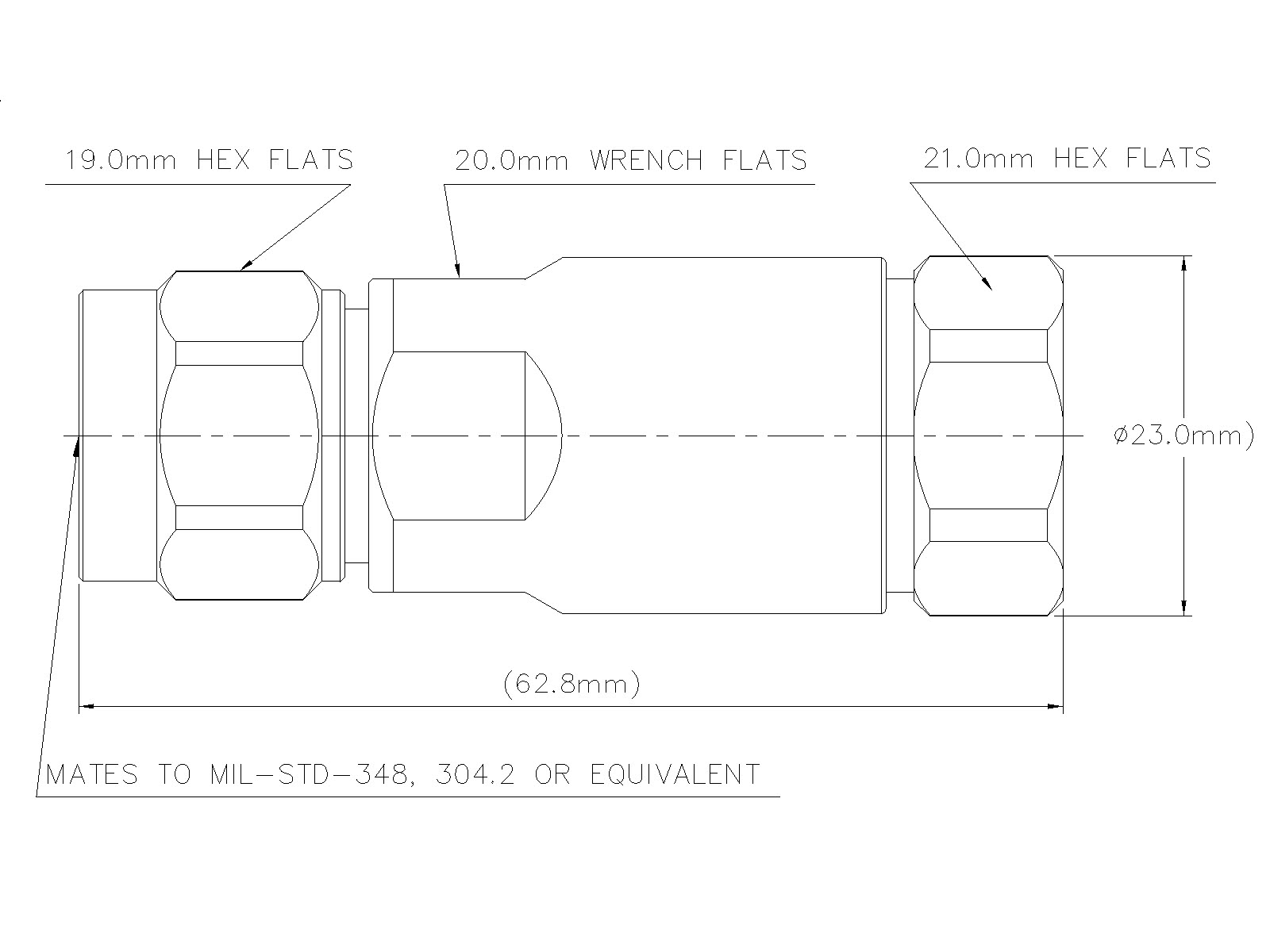

Outline drawing

Click on image to enlarge.

Electrical specifications

3rd Order IMD -159 dBc
3rd Order IMD at Frequency -116 dBm @ 900 MHz
3rd Order IMD Test Method Two +43 dBm carriers
Insertion Loss Coefficient, typical 0.05
Average Power at Frequency 0.6 kW @ 900 MHz
Connector Impedance 50 ohm
dc Test Voltage 2000 V
Impedance 50 ohm
Inner Contact Resistance, maximum 1 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 8000 MHz
Outer Contact Resistance, maximum 1 mOhm
RF Operating Voltage, maximum (vrms) 707 V

Return loss/vswr

Frequency band Vswr Return loss (db) Gated vswr Gated return loss (db) Vswr, typical Return loss, typical (db)
0–1000 MHz 1.050 32.26 1.023 39.00
1000–2000 MHz 1.100 26.44 1.036 35.00
2000–3000 MHz 1.180 21.66 1.046 33.00
3000–4000 MHz 1.200 20.83 1.046 33.00
4000–6000 MHz 1.250 19.08 1.106 26.00
6000–8800 MHz 1.094 27.00 1.300 17.69

Mechanical specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 600 N | 134.885 lbf
Connector Retention Torque 4.5 N-m | 39.828 in lb
Coupling Nut Proof Torque 2.3 N-m | 20.357 in lb
Coupling Nut Retention Force 450 N | 101.164 lbf
Coupling Nut Retention Force Method MIL-C-39012C-3.25, 4.6.22
Interface Durability 500 cycles
Interface Durability Method IEC 61169-16:9.5
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Corrosion Test Method IEC 60068-2-11
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and weights

Height, packed 248.920 mm | 9.8 in
Width, packed 266.700 mm | 10.5 in
Length, packed 266.700 mm | 10.5 in
Packaging quantity 50
Weight, net 96.8 g | 0.213 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series LDF4-50A
Ordering Note ANDREW® standard product (Global)

General specifications

Body Style Straight
Cable Family LDF4-50A
Inner Contact Attachment Method Captivated
Inner Contact Plating Silver
Interface N Male
Mounting Angle Straight
Outer Contact Attachment Method Clamp
Outer Contact Plating Trimetal

Dimensions

Length 62.8 mm | 2.472 in
Diameter 23 mm | 0.906 in
Nominal Size 1/2 in

Electrical specifications

3rd Order IMD -159 dBc
3rd Order IMD at Frequency -116 dBm @ 900 MHz
3rd Order IMD Test Method Two +43 dBm carriers
Insertion Loss Coefficient, typical 0.05
Average Power at Frequency 0.6 kW @ 900 MHz
Connector Impedance 50 ohm
dc Test Voltage 2000 V
Impedance 50 ohm
Inner Contact Resistance, maximum 1 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 8000 MHz
Outer Contact Resistance, maximum 1 mOhm
RF Operating Voltage, maximum (vrms) 707 V

Return loss/vswr

Frequency Band VSWR Return Loss (dB) Gated VSWR Gated Return Loss (dB) VSWR, typical Return Loss, typical (dB)
0–1000 MHz 1.050 32.26 1.023 39.00
1000–2000 MHz 1.100 26.44 1.036 35.00
2000–3000 MHz 1.180 21.66 1.046 33.00
3000–4000 MHz 1.200 20.83 1.046 33.00
4000–6000 MHz 1.250 19.08 1.106 26.00
6000–8800 MHz 1.094 27.00 1.300 17.69

Mechanical specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 600 N | 134.885 lbf
Connector Retention Torque 4.5 N-m | 39.828 in lb
Coupling Nut Proof Torque 2.3 N-m | 20.357 in lb
Coupling Nut Retention Force 450 N | 101.164 lbf
Coupling Nut Retention Force Method MIL-C-39012C-3.25, 4.6.22
Interface Durability 500 cycles
Interface Durability Method IEC 61169-16:9.5
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Corrosion Test Method IEC 60068-2-11
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and weights

Height, packed 248.920 mm | 9.8 in
Width, packed 266.700 mm | 10.5 in
Length, packed 266.700 mm | 10.5 in
Packaging quantity 50
Weight, net 96.8 g | 0.213 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Installation instruction

L4 -F Connector Attachment
F series N DIN Connector Installation for HELIAX®LDF4 cable - manual tool MCPT-L4
F series N DIN Connector Installation for HELIAX®LDF4 cable - manual tool MCPT-L4

Product compliance documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product specification

L4NM-F Product specifications
