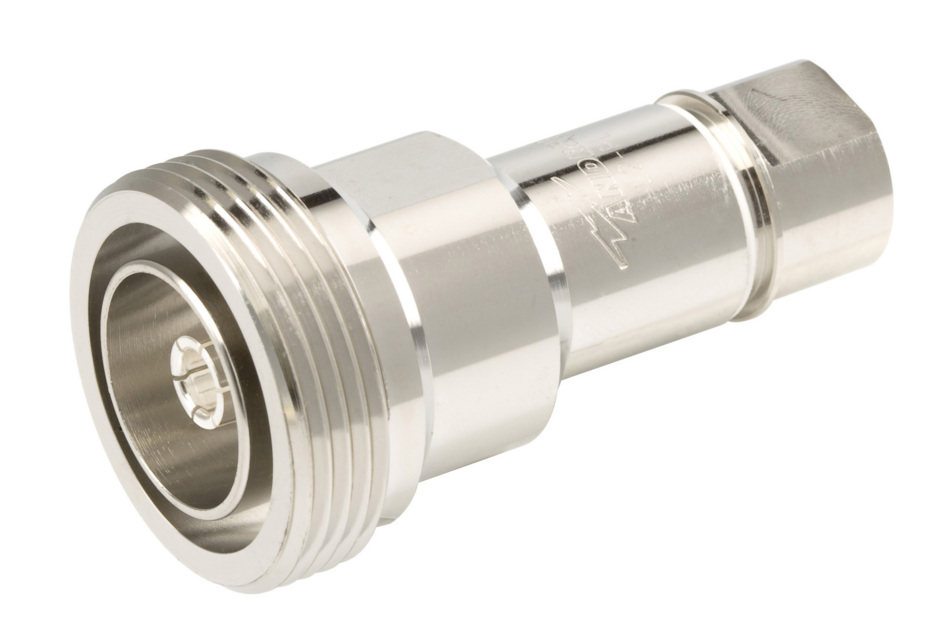

L2TDF-PL

7-16 DIN Female Positive Lock for 3/8 in LDF2-50 cable

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series LDF2-50

General specifications

Body Style Straight
Cable Family LDF2-50
Inner Contact Attachment Method Captivated
Inner Contact Plating Silver
Interface 7-16 DIN Female
Mounting Angle Straight
Outer Contact Attachment Method Ring-flare
Outer Contact Plating Trimetal
Pressurizable No

Dimensions

Height 28.7 mm | 1.130 in
Width 28.7 mm | 1.130 in
Length 51.56 mm | 2.030 in
Diameter 28.7 mm | 1.130 in
Nominal Size 3/8 in

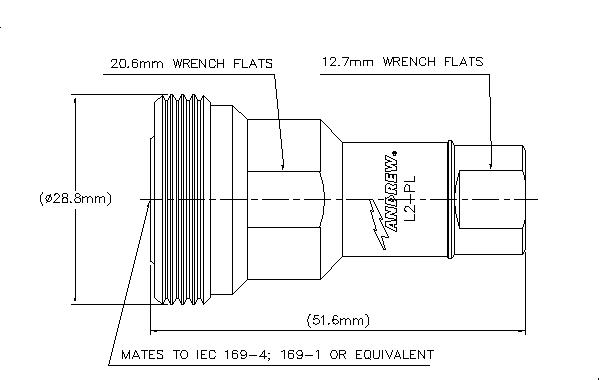

Outline drawing

Click on image to enlarge.

Electrical specifications

3rd Order IMD at Frequency -107 dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
Insertion Loss Coefficient, typical 0.05
Average Power at Frequency 0.7 kW @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 2500 V
Inner Contact Resistance, maximum 0.4 mOhm
Insulation Resistance, minimum 10000 mOhm
Operating Frequency Band 0 – 10000 MHz
Outer Contact Resistance, maximum 1.5 mOhm
Peak Power, maximum 15.6 kW
RF Operating Voltage, maximum (vrms) 894 V
Shielding Effectiveness -110 dB

Return loss/vswr

Frequency band Vswr Return loss (db)
0–960 MHz 1.016 42.01
960–2200 MHz 1.054 31.60
2200–2700 MHz 1.058 31.00
2700–4000 MHz 1.067 29.79
4000–6000 MHz 1.089 27.41
6000–8000 MHz 1.083 27.99
8000–10000 MHz 1.310 17.50

Mechanical specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 671.68 N | 151.000 lbf
Connector Retention Torque 2.7 N-m | 23.897 in lb
Coupling Nut Proof Torque 35 N-m | 309.776 in lb
Insertion Force 199.99 N | 44.960 lbf
Insertion Force Method IEC 61169-1:15.2.4
Interface Durability 500 cycles
Interface Durability Method IEC 61169-4:17
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Corrosion Test Method IEC 60068-2-11
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Moisture Resistance Test Method IEC 60068-2-3
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and weights

Weight, net 84.68 g | 0.187 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series LDF2-50

General specifications

Body Style Straight
Cable Family LDF2-50
Inner Contact Attachment Method Captivated
Inner Contact Plating Silver
Interface 7-16 DIN Female
Mounting Angle Straight
Outer Contact Attachment Method Ring-flare
Outer Contact Plating Trimetal
Pressurizable No

Dimensions

Height 28.7 mm | 1.130 in
Width 28.7 mm | 1.130 in
Length 51.56 mm | 2.030 in
Diameter 28.7 mm | 1.130 in
Nominal Size 3/8 in

Electrical specifications

3rd Order IMD at Frequency -107 dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
Insertion Loss Coefficient, typical 0.05
Average Power at Frequency 0.7 kW @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 2500 V
Inner Contact Resistance, maximum 0.4 mOhm
Insulation Resistance, minimum 10000 mOhm
Operating Frequency Band 0 – 10000 MHz
Outer Contact Resistance, maximum 1.5 mOhm
Peak Power, maximum 15.6 kW
RF Operating Voltage, maximum (vrms) 894 V
Shielding Effectiveness -110 dB

Return loss/vswr

Frequency Band VSWR Return Loss (dB)
0–960 MHz 1.016 42.01
960–2200 MHz 1.054 31.60
2200–2700 MHz 1.058 31.00
2700–4000 MHz 1.067 29.79
4000–6000 MHz 1.089 27.41
6000–8000 MHz 1.083 27.99
8000–10000 MHz 1.310 17.50

Mechanical specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 671.68 N | 151.000 lbf
Connector Retention Torque 2.7 N-m | 23.897 in lb
Coupling Nut Proof Torque 35 N-m | 309.776 in lb
Insertion Force 199.99 N | 44.960 lbf
Insertion Force Method IEC 61169-1:15.2.4
Interface Durability 500 cycles
Interface Durability Method IEC 61169-4:17
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Corrosion Test Method IEC 60068-2-11
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Moisture Resistance Test Method IEC 60068-2-3
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and weights

Weight, net 84.68 g | 0.187 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
